Lenovo ThinkSystem ST650 V2 User Manual

Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with
metal, which might result in spattered metal, burns, or both.
Attention:
• Read “Installation guidelines” on page 57 to ensure that you work safely.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://youtube.com/playlist?list=PLYV5R7hVcs-DoEcxrm2zKNpaKOdZ3f8Qc
• Youku: https://list.youku.com/albumlist/show/id_59636516
Procedure
Step 1. Locate the required fan slot in the fan cage.
Note: Ensure that you observe the installation rules and sequence in “Technical rules for system
fans” in the ThinkSystem ST650 V2 Setup Guide.
Step 2. Align the fan over the fan slot in the fan cage assembly.
Step 3. Insert the fan into the fan cage assembly until it clicks into place.

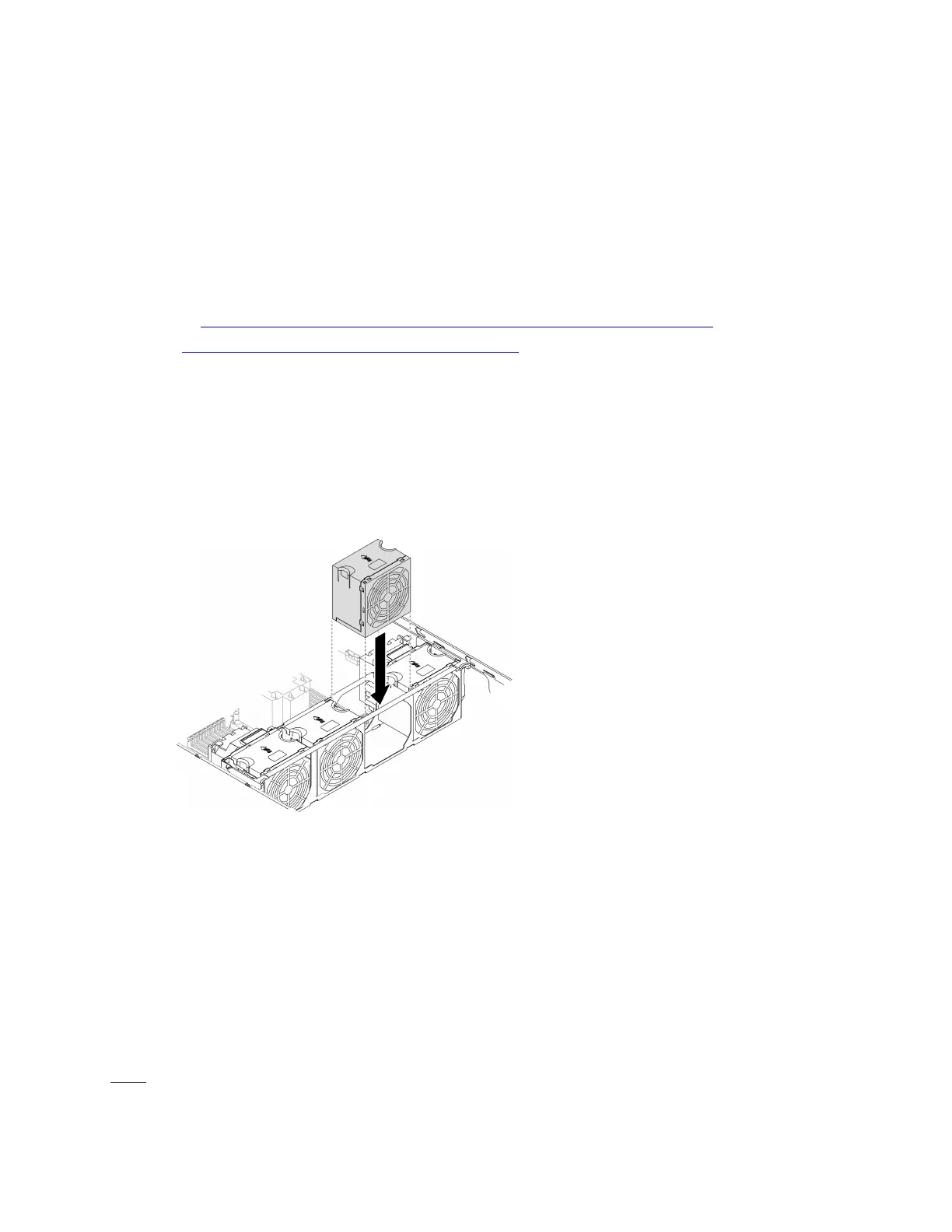

Figure 60. Hot-swap fan installation
After you finish
1. Reinstall the server cover. See “Install the server cover” on page 190.
2. Complete the parts replacement. See “Complete the parts replacement” on page 206.
Remove the fan cage assembly
Use this procedure to remove the fan cage assembly.
About this task
S002
Chapter 4. Hardware replacement procedures 95

Lenovo ThinkSystem ST650 V2 Specifications

General

Processor cache	18 MB
Processor model	4310
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.3 GHz
Number of processors installed	1
Chassis type	Tower (4U)
Product color	Black
Rack mounting	Yes
Memory slots	32
Internal memory	32 GB
Memory clock speed	3200 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 32 GB
RAID levels	0, 1, 5, 6, 10, 50, 60
Optical drive type	-
Internal drive bays	8
Maximum storage capacity	- TB
Supported RAID controllers	940-8i 4GB
Maximum graphics card memory	16 MB
LAN controller	Broadcom 57416
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	10 Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Performance management	XClarity Enterprise
Trusted Platform Module (TPM) version	2.0
Power supply	750 W
Operating altitude	0 - 3050 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	8 - 90 %
Operating system installed	No
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	734 mm
Width	175 mm
Height	462 mm
