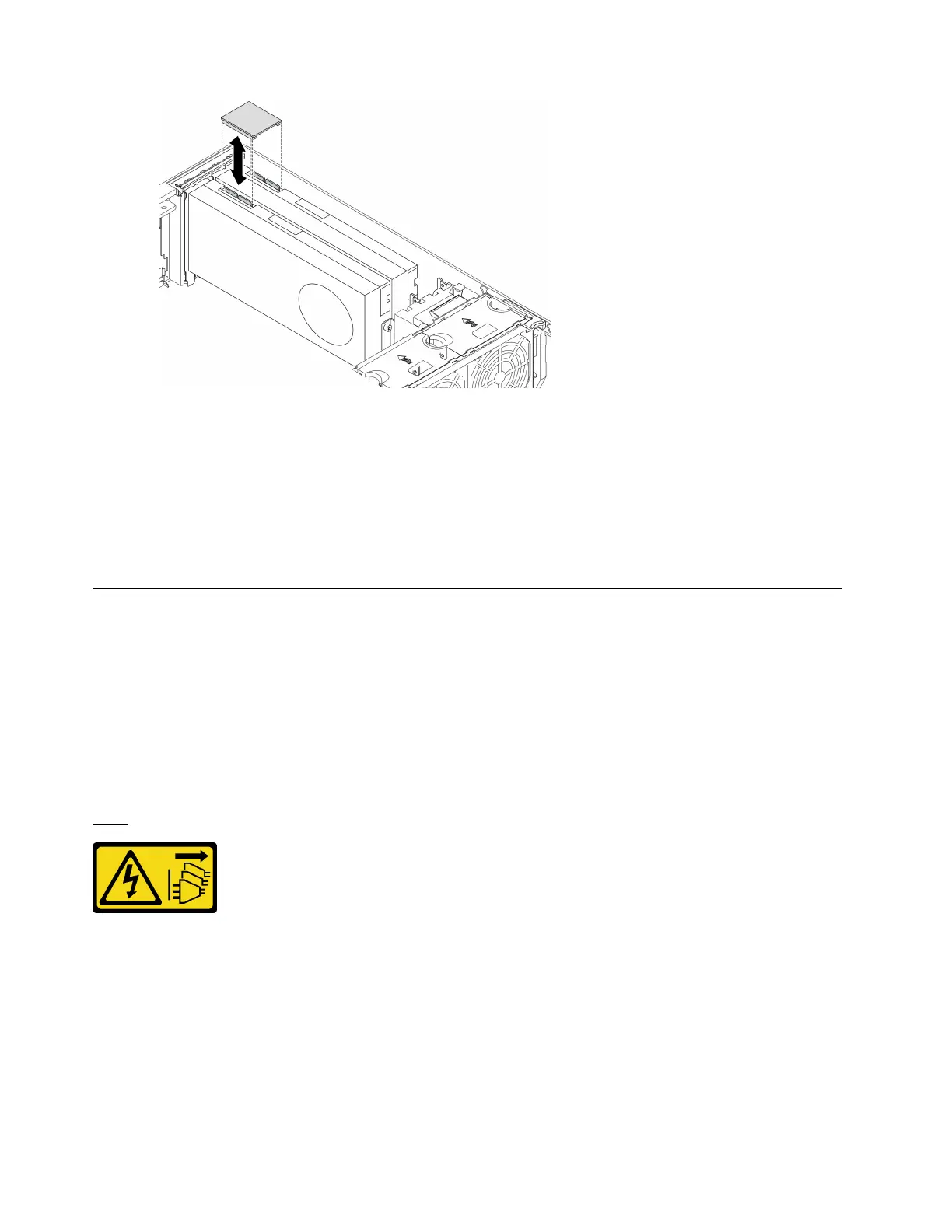

Figure 105. NVLink bridge installation
After you finish
1. Reinstall the air baffle. See “Install the air baffle” on page 74.
2. Reinstall all the flash power modules. See “Install a flash power module” on page 100.
3. Reinstall the server cover. See “Install the server cover” on page 190.
4. Complete the parts replacement. See “Complete the parts replacement” on page 206.
Optical drive cage replacement
Use this information to remove and install the optical drive cage.
Note: This section applies only to server models that have the optical drive cage installed.
Remove the optical drive cage
Use this information to remove the optical drive cage.
About this task
S002
CAUTION:
The power-control button on the device and the power switch on the power supply do not turn off the
electrical current supplied to the device. The device also might have more than one power cord. To
remove all electrical current from the device, ensure that all power cords are disconnected from the
power source.
Attention:
Read “Installation guidelines” on page 57 to ensure that you work safely.
Power off the server and disconnect all power cords for this task.
144 ThinkSystem ST650 V2 Maintenance Manual
