Lenovo ThinkSystem ST650 V2 User Manual

Step 1. Use the key to unlock the server cover; then, open the front door.
Step 2. Locate the simple-swap drive you want to remove.
Step 3. Remove the simple-swap drive.

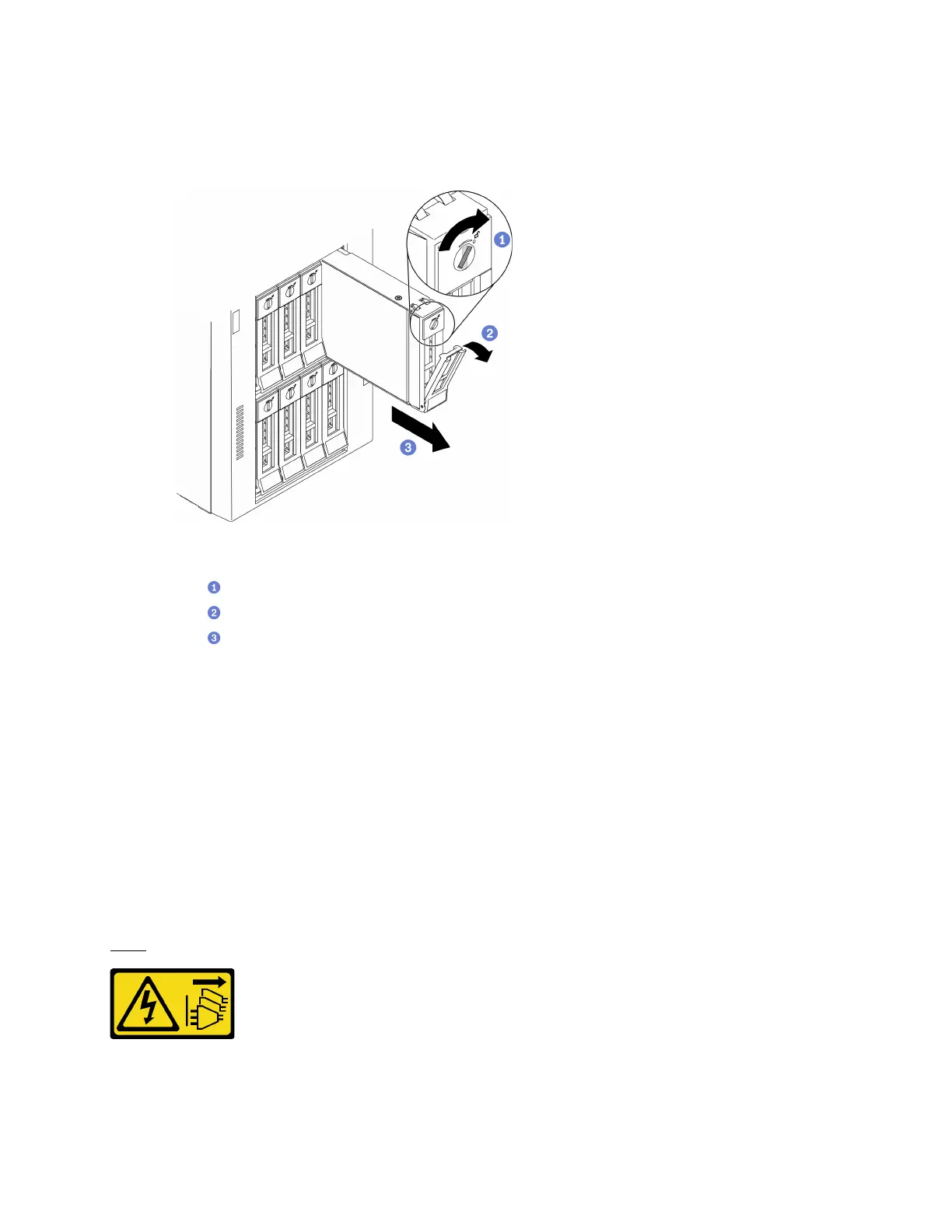

Figure 49. Opening the tray handle of a 3.5-inch simple-swap drive
a.
Use a screwdriver to turn the handle lock to the unlocked position.
b.
The tray handle opens automatically.
c.
Pull the tray handle and carefully slide the simple-swap drive out of the drive bay.
After you finish
1. Install a new drive or drive filler into the vacant drive bay. See “Install a simple-swap drive” on page 81.
Note: To ensure that there is adequate system cooling, do not operate the server for more than two
minutes without either a drive or a drive filler installed in each bay.
2. If you are instructed to return the component or optional device, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Install a simple-swap drive
Use this information to install a simple-swap drive.
About this task
S002
CAUTION:
The power-control button on the device and the power switch on the power supply do not turn off the
electrical current supplied to the device. The device also might have more than one power cord. To
Chapter 4. Hardware replacement procedures 81

Lenovo ThinkSystem ST650 V2 Specifications

General

Processor cache	18 MB
Processor model	4310
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.3 GHz
Number of processors installed	1
Chassis type	Tower (4U)
Product color	Black
Rack mounting	Yes
Memory slots	32
Internal memory	32 GB
Memory clock speed	3200 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 32 GB
RAID levels	0, 1, 5, 6, 10, 50, 60
Optical drive type	-
Internal drive bays	8
Maximum storage capacity	- TB
Supported RAID controllers	940-8i 4GB
Maximum graphics card memory	16 MB
LAN controller	Broadcom 57416
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	10 Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Performance management	XClarity Enterprise
Trusted Platform Module (TPM) version	2.0
Power supply	750 W
Operating altitude	0 - 3050 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	8 - 90 %
Operating system installed	No
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	734 mm
Width	175 mm
Height	462 mm
