Remove a 2.5-inch drive from a 3.5-inch drive bay
Use this information to remove 2.5-inch drive from a 3.5-inch drive bay.
About this task
S002
CAUTION:
The power-control button on the device and the power switch on the power supply do not turn off the
electrical current supplied to the device. The device also might have more than one power cord. To
remove all electrical current from the device, ensure that all power cords are disconnected from the
power source.
Attention:
• Read “Installation guidelines” on page 57 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://youtube.com/playlist?list=PLYV5R7hVcs-DoEcxrm2zKNpaKOdZ3f8Qc
• Youku: https://list.youku.com/albumlist/show/id_59636516
Procedure
Step 1. Use the key to unlock the server cover; then, open the front door.
Step 2. Locate the drive you want to remove.
Step 3. Remove the 3.5-inch drive tray with the 2.5-inch drive. See “Remove a simple-swap drive” on page
80 or “Remove a hot-swap drive” on page 83.
Step 4. Remove the five screws that secure the 2.5-inch drive and the drive adapter; then, remove the 2.5-
inch drive and the drive adapter from the tray.

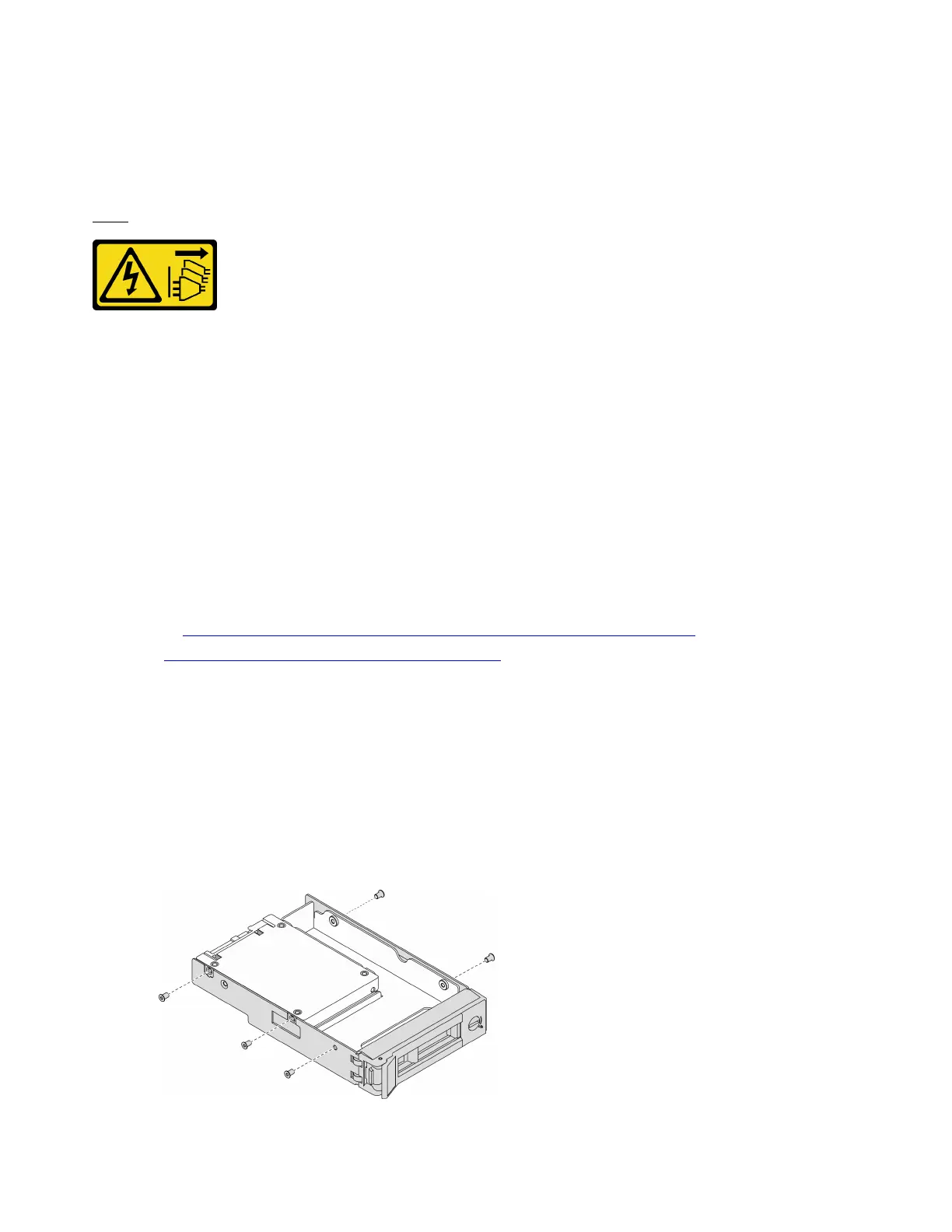

Figure 37. Removing the screws that secure the 2.5-inch drive and the drive adapter
