Install the foot stands
Use this information to install the foot stands.
About this task
S033
CAUTION:
Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with
metal, which might result in spattered metal, burns, or both.
Attention:
• Read “Installation guidelines” on page 57 to ensure that you work safely.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://youtube.com/playlist?list=PLYV5R7hVcs-DoEcxrm2zKNpaKOdZ3f8Qc
• Youku: https://list.youku.com/albumlist/show/id_59636516
Procedure
Step 1. For each foot stand, carefully align the pin and screw hole on the foot stand with the corresponding
hole on the chassis; then, use a screwdriver to install a screw to secure the foot stand.

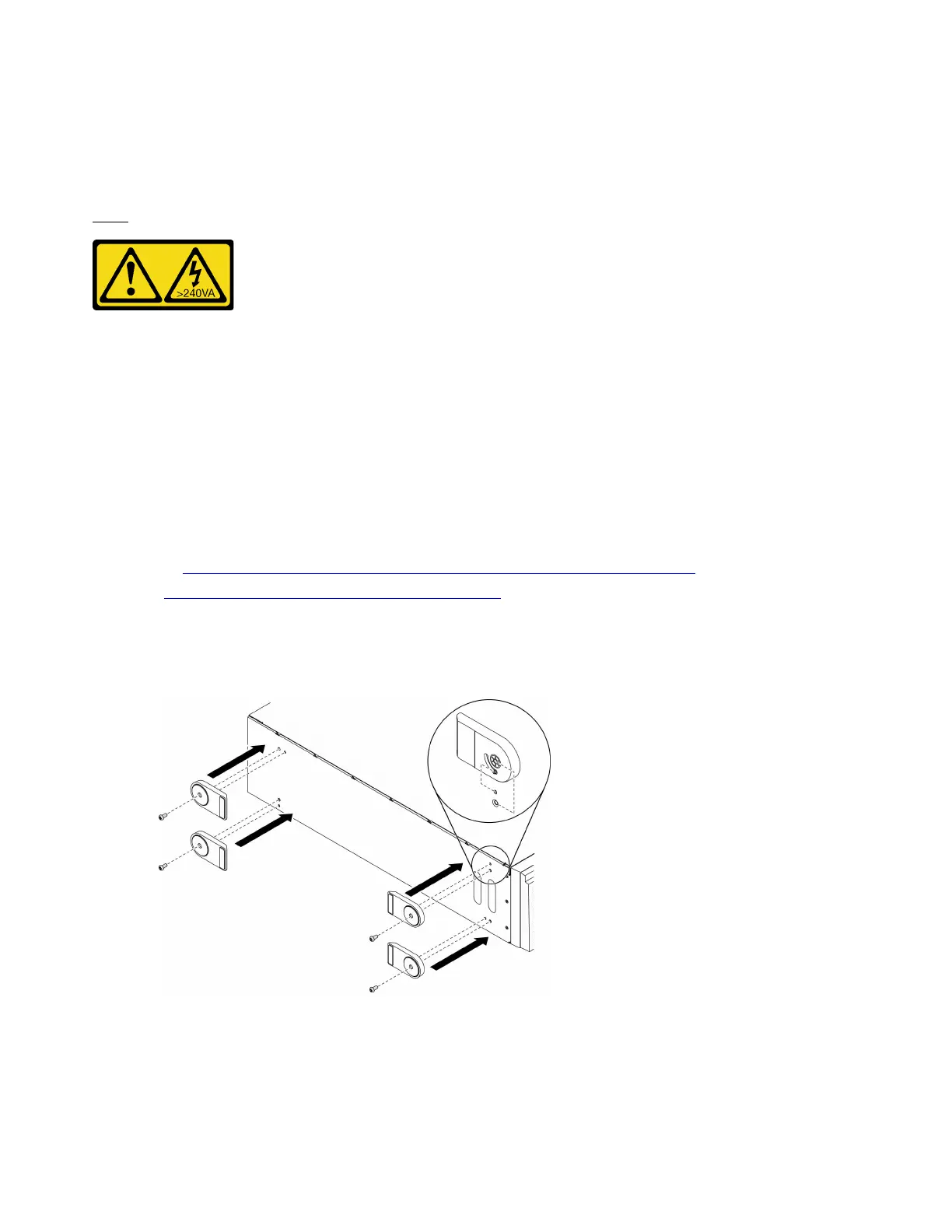

Figure 70. Foot stand installation
Step 2. For each foot stand, rotate the foot stand outwards.
104 ThinkSystem ST650 V2 Maintenance Manual
