Lenovo ThinkSystem ST650 V2 User Manual

Step 2. Remove the M.2 drive.

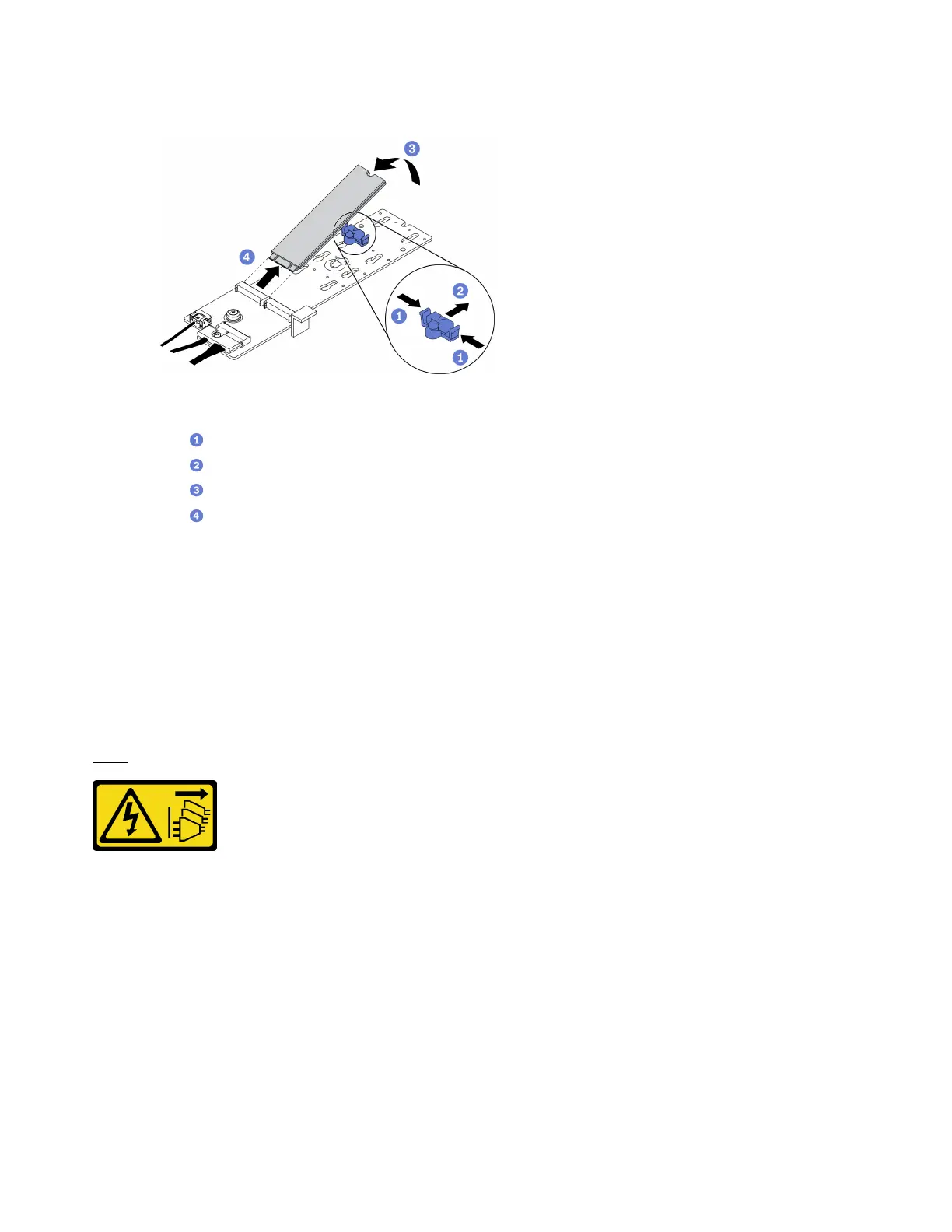

Figure 96. M.2 drive removal
a.
Press both sides of the retainer.
b.
Slide the retainer backward to loosen the M.2 drive from the M.2 boot adapter.
c.
Pivot the M.2 drive away from the M.2 boot adapter.
d.
Pull the M.2 drive away from the connector at an angle of approximately 30 degrees.
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Adjust the retainer on the M.2 boot adapter
Use this information to adjust the retainer on the M.2 boot adapter.
About this task
S002
CAUTION:
The power-control button on the device and the power switch on the power supply do not turn off the
electrical current supplied to the device. The device also might have more than one power cord. To
remove all electrical current from the device, ensure that all power cords are disconnected from the
power source.
Attention:
• Read “Installation guidelines” on page 57 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
134
ThinkSystem ST650 V2 Maintenance Manual
