GPU cable routing
Use this section to understand the cable routing for the GPU.
From To
1 Power connector on GPU 1 Power distribution board: GPU 3 power connector
5 Power connector on GPU 2 Power distribution board: GPU 1 power connector
3 Power connector on GPU 3 Power distribution board: GPU 2 power connector
4 Power connector on GPU 4
Power distribution board: GPU 4 power connector
Notes:
• Connections between connectors;
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.

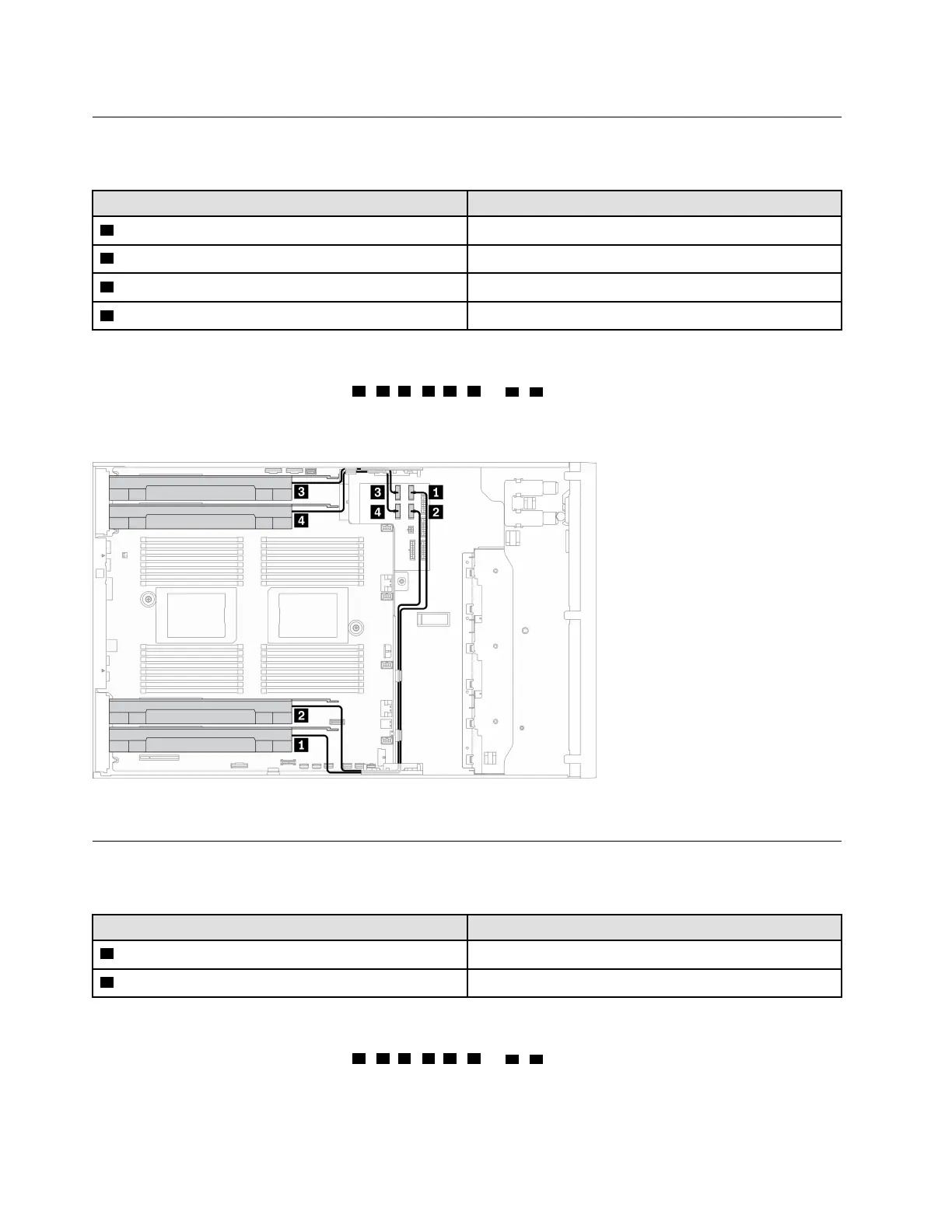

Figure 26. Cable routing for GPU
Internal CFF RAID adapter cable routing
Use this section to understand the cable routing for the CFF RAID adapter.
From To
1 Signal connector on the CFF RAID adapter System board: PCIe 3 connector connector
2 Power connector on the CFF RAID adapter System board: CFF RAID power connector
Notes:
• Connections between connectors;
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.
