Lenovo ThinkSystem ST650 V2 - Power Distribution Board Cable Routing

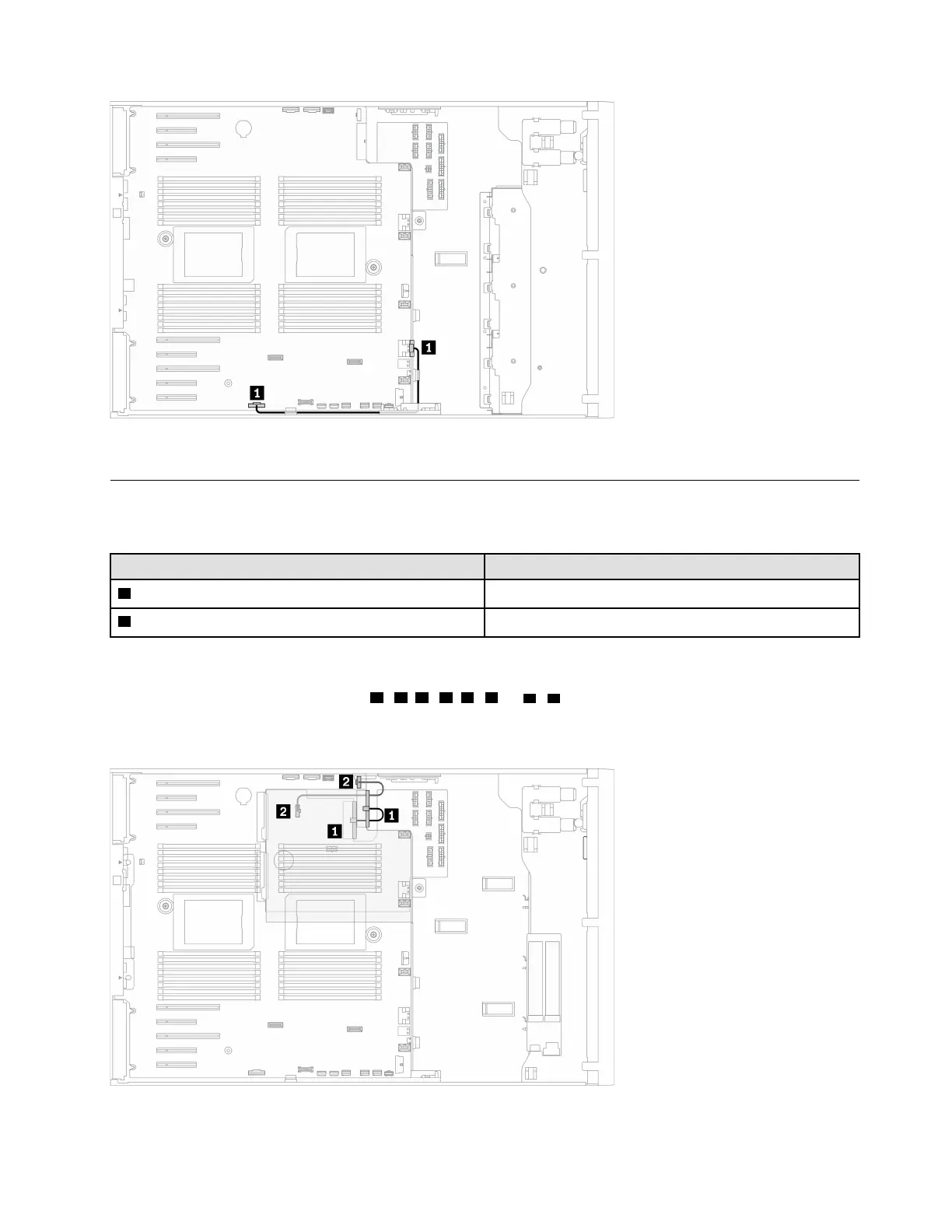

Figure 30. Cable routing to enable PCIe slot 8
Power distribution board cable routing
Use the section to understand the cable routing for the power distribution board.
From To
1 Power distribution board: Main power connector System board: Power distribution board power connector
2 Power distribution board: PDB signal connector System board: Power distribution board signal connector
Notes:
• Connections between connectors;
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.
Figure 31. Cable routing for power distribution board
Chapter 3. Internal cable routing 53
