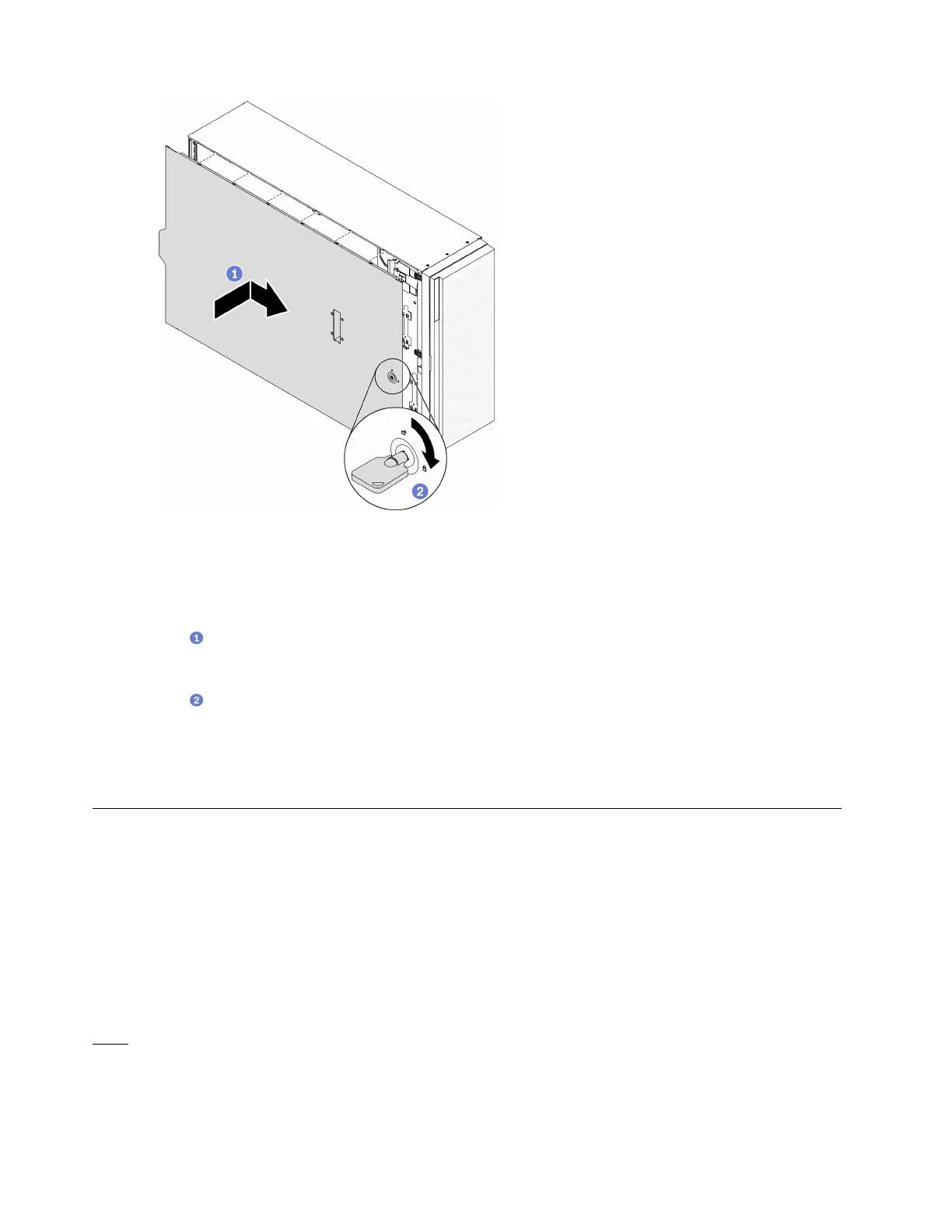

Figure 149. Server cover installation
Note: Before you slide the cover forward, ensure that all the tabs of the cover engage the chassis
correctly. If all the tabs do not engage the chassis correctly, it will be very difficult to remove the
cover later.
a.
Lower the server cover onto the chassis until all tabs on both sides of the server cover
engage the chassis. Then, slide the server cover towards the front of the chassis until the
server cover stops and the front edge of the cover aligns with the edge of the front bezel.
b.
Use the key to turn the cover lock to the locked position.
After you finish
Complete the parts replacement. See “Complete the parts replacement” on page 206.
System board replacement (trained technician only)
Use this information to remove and install the system board.
Note: This task must be operated by trained technicians.
Remove the system board
Use this information to remove the system board.
About this task
S002
