Lenovo ThinkSystem ST650 V2 - Front USB Cable Routing

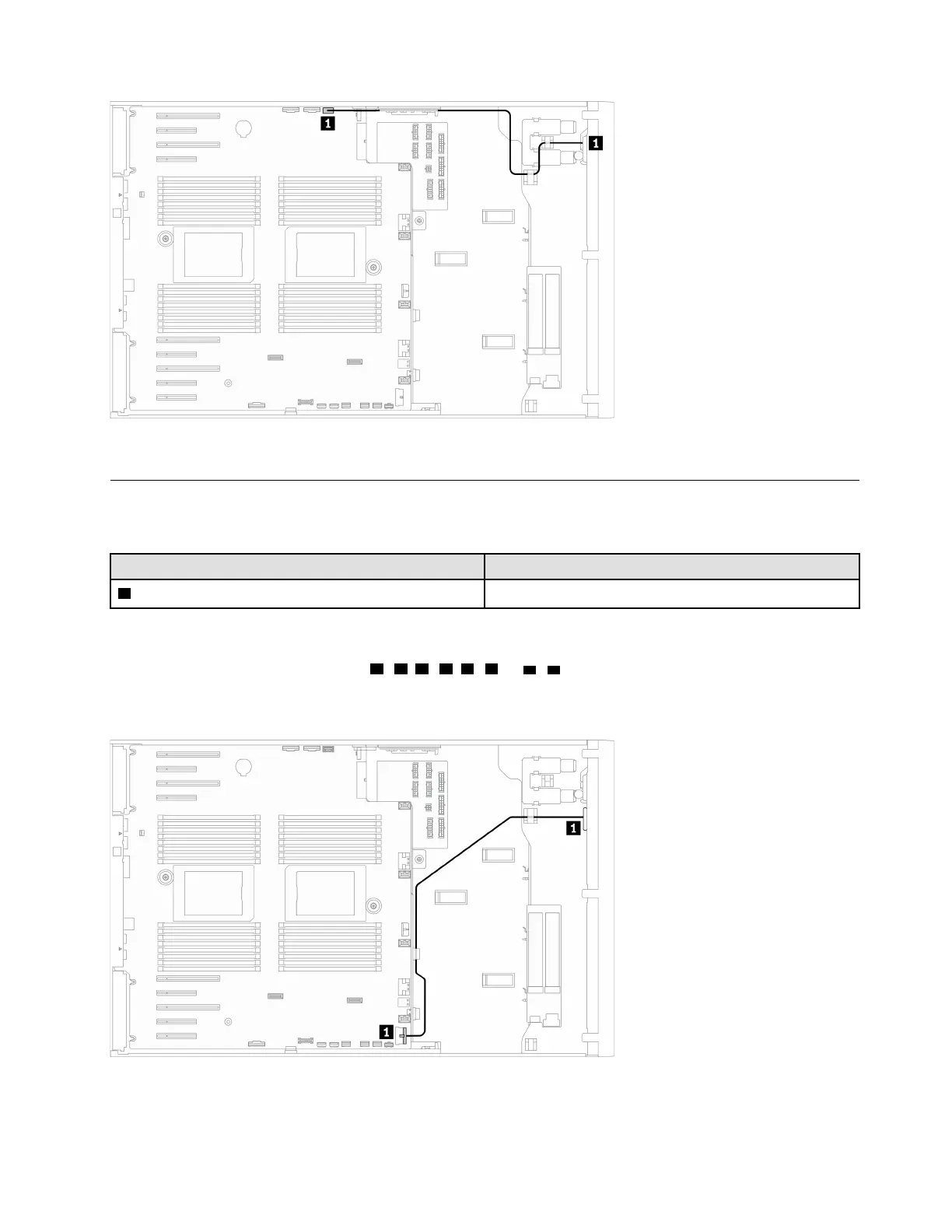

Figure 24. Cable routing for front panel
Front USB cable routing
Use the section to understand the cable routing for the front USB.
From To
1 Rear of front panel System board: Front USB connector
Notes:
• Connections between connectors;
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.
Figure 25. Cable routing for front USB
Chapter 3. Internal cable routing 49
