Note: The studs on the fan cage are positioned differently for the left PCIe adapter holder and right
PCIe adapter holder.
Step 2. Insert the PCIe adapter holder onto the fan cage until it snaps into position.

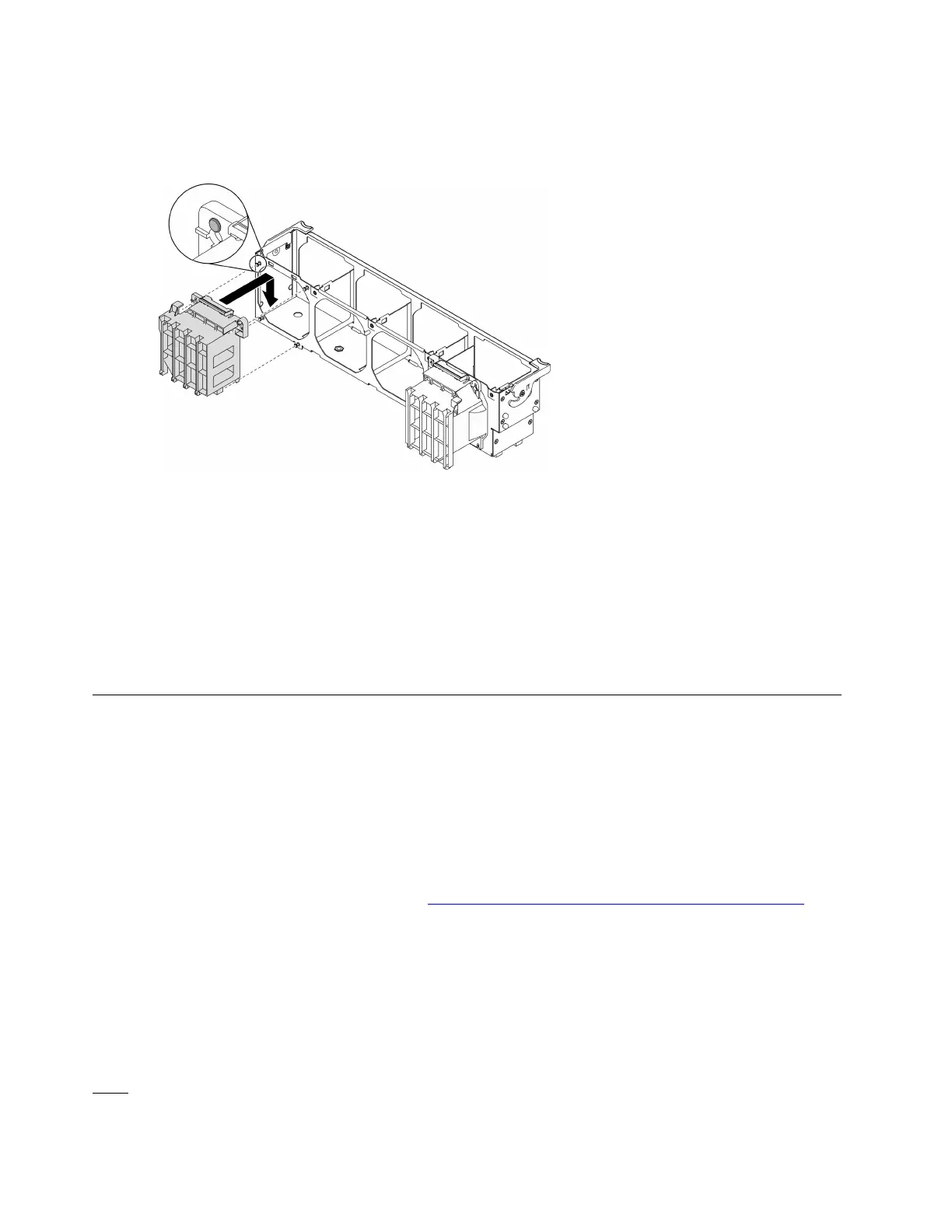

Figure 126. PCIe adapter holder installation
After you finish
1. Reinstall all the full-length GPU adapters. See “Install a full-length GPU adapter” on page 114.
2. Reinstall the air baffle. See “Install the air baffle” on page 74.
3. Reinstall all the flash power modules. See “Install a flash power module” on page 100.
4. Reinstall the server cover. See “Install the server cover” on page 190.
5. Complete the parts replacement. See “Complete the parts replacement” on page 206.
PCIe adapter replacement
Use this information to remove and install a PCIe adapter.
Your server comes with nine PCIe slots. Depending on your needs, you can install a PCIe adapter to obtain
the corresponding function or remove the adapter if necessary. The PCIe adapter can be an Ethernet
adapter, a host bus adapter, a RAID adapter, a graphics adapter, or any other supported PCIe adapters.
PCIe adapters vary by type, but the installation and removal procedures are the same.
Notes:
For a list of the supported PCIe adapters, see
https://static.lenovo.com/us/en/serverproven/index.shtml
For instructions on how to remove and install a full-length GPU adapter, see “Full-length GPU adapter
replacement” on page 113
Remove a PCIe adapter
Use this information to remove a PCIe adapter.
About this task
S002
162 ThinkSystem ST650 V2 Maintenance Manual
