S007
CAUTION:
This product contains a Class 1M laser. Do not view directly with optical instruments.
Attention:
• Read “Installation guidelines” on page 57 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Note: The following illustrations are based on the scenario that you install an optical drive. The procedure is
similar for installing a tape drive.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://youtube.com/playlist?list=PLYV5R7hVcs-DoEcxrm2zKNpaKOdZ3f8Qc
• Youku: https://list.youku.com/albumlist/show/id_59636516
Procedure
Step 1. If necessary, remove the cover of the drive bay filler from the front bezel.

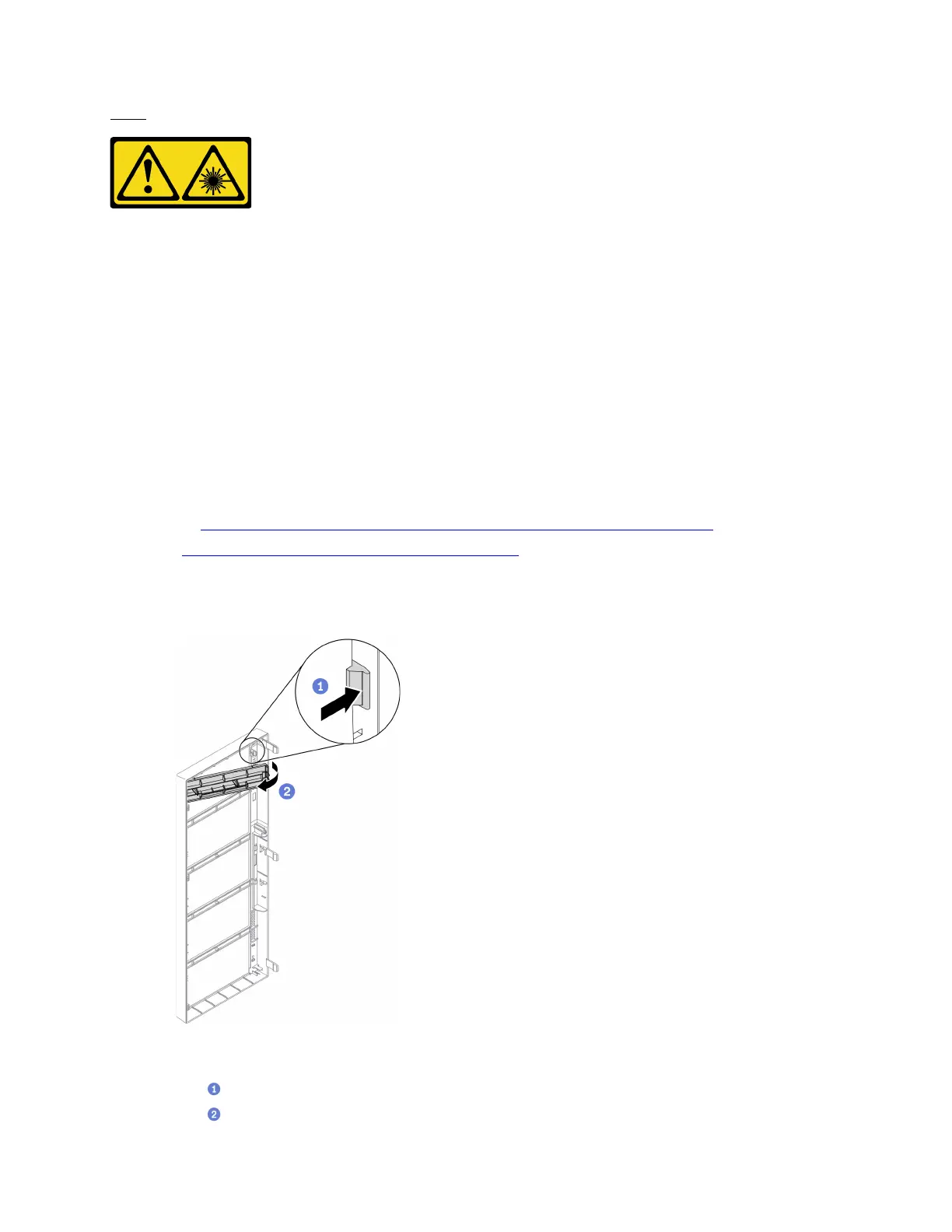

Figure 112. Drive bay filler cover installation
a.
Push the tab on the front bezel to release the cover of the drive bay filler.
b.
Remove the cover of the drive bay filler as shown.
