Step 2. Disconnect every cable from the 5.25-inch drive bay adapter assembly.
Step 3. Remove the 5.25-inch drive bay adapter assembly.

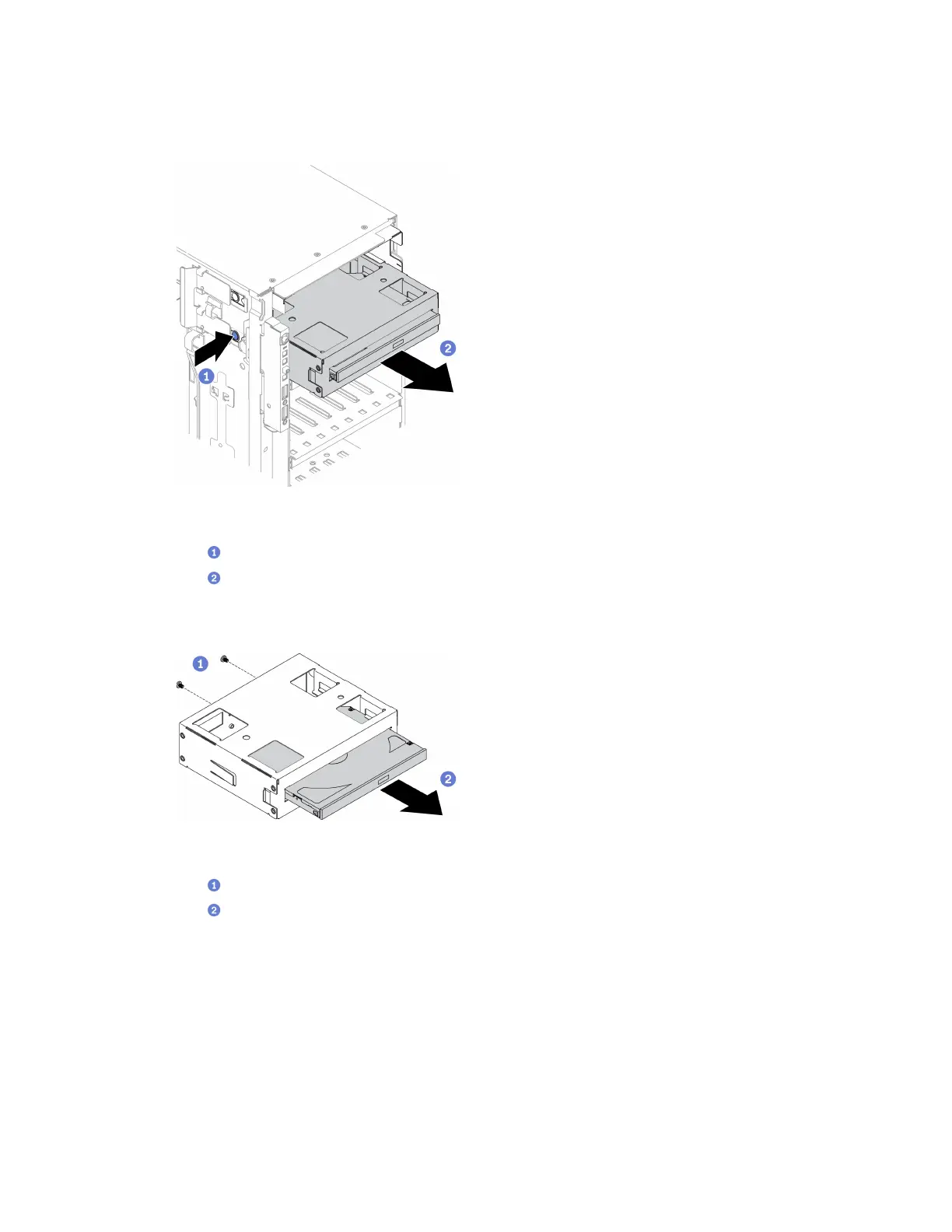

Figure 117. 5.25-inch drive bay adapter assembly removal
a.
Press and hold the release tab.
b.
Carefully pull the 5.25-inch drive bay adapter assembly at the same time to remove it from
the chassis.
Step 4. Remove the slim optical drive out from the adapter.
Figure 118. Removing slim optical drive from the drive bay adapter
a.
Remove the two screws that secure the slim optical drive.
b.
Slide the slim optical drive out from the adapter.
After you finish
1. Install a new slim optical drive or install a filler to cover the drive bay. See “Install the 5.25-inch drive bay
adapter assembly” on page 156. To install a filler, complete the following steps:
a. Insert the filler to the vacant drive bay.
Chapter 4. Hardware replacement procedures 155
