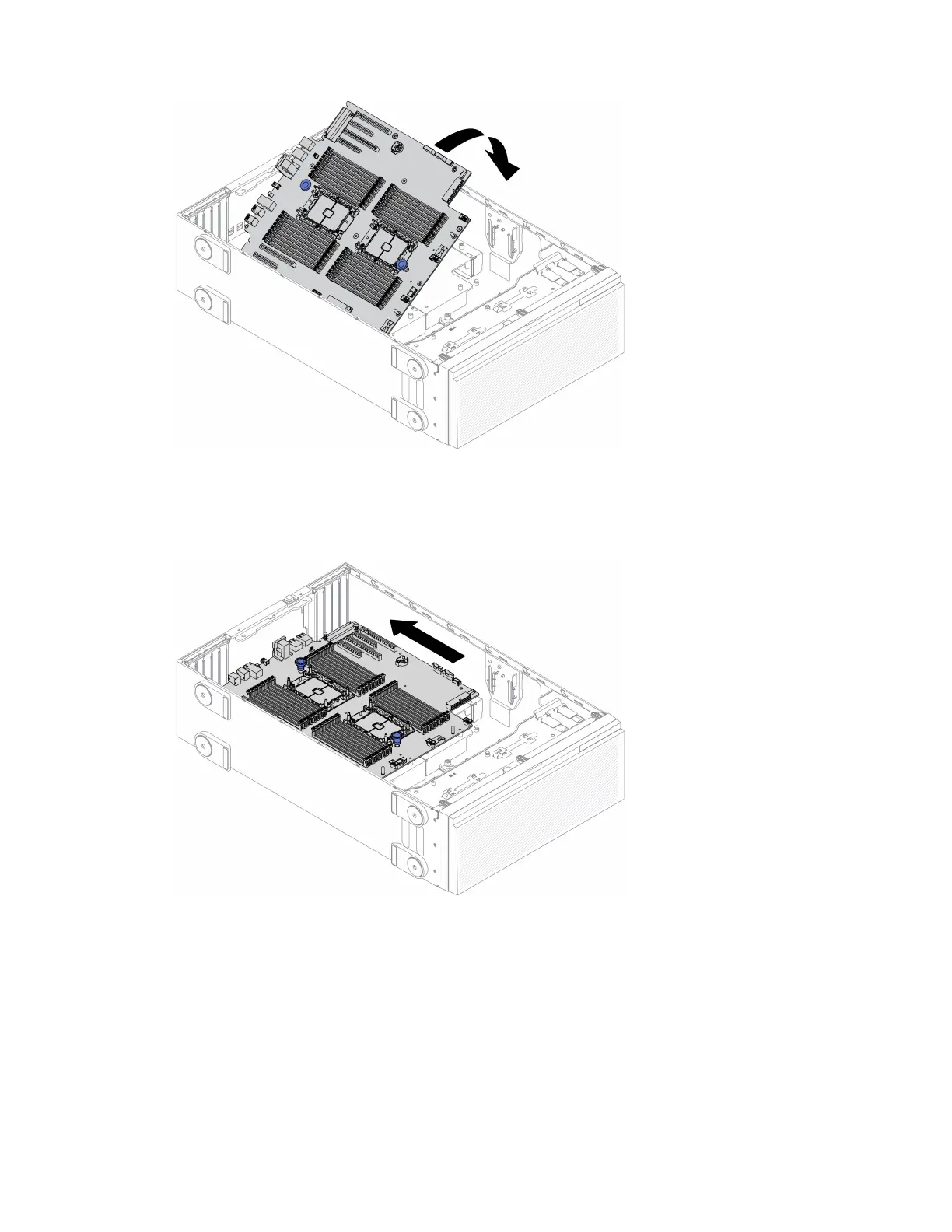

Figure 153. System board installation
Step 2. Move the system board towards the rear of the server. Ensure that the rear connectors on the new
system board are inserted into the corresponding holes in the rear panel.
Figure 154. Engaging the system board to chassis
Step 3. Install the nine screws to secure the system board in place.
Chapter 4. Hardware replacement procedures 197
