Lenze 8400 protec - PROFINET; Ethernet;Ip™ Profibus

Electrical installation − HighLine/StateLine version
Communication
PROFINET® / EtherNet/IP
6

100
EDS84DPS424 EN 5.0

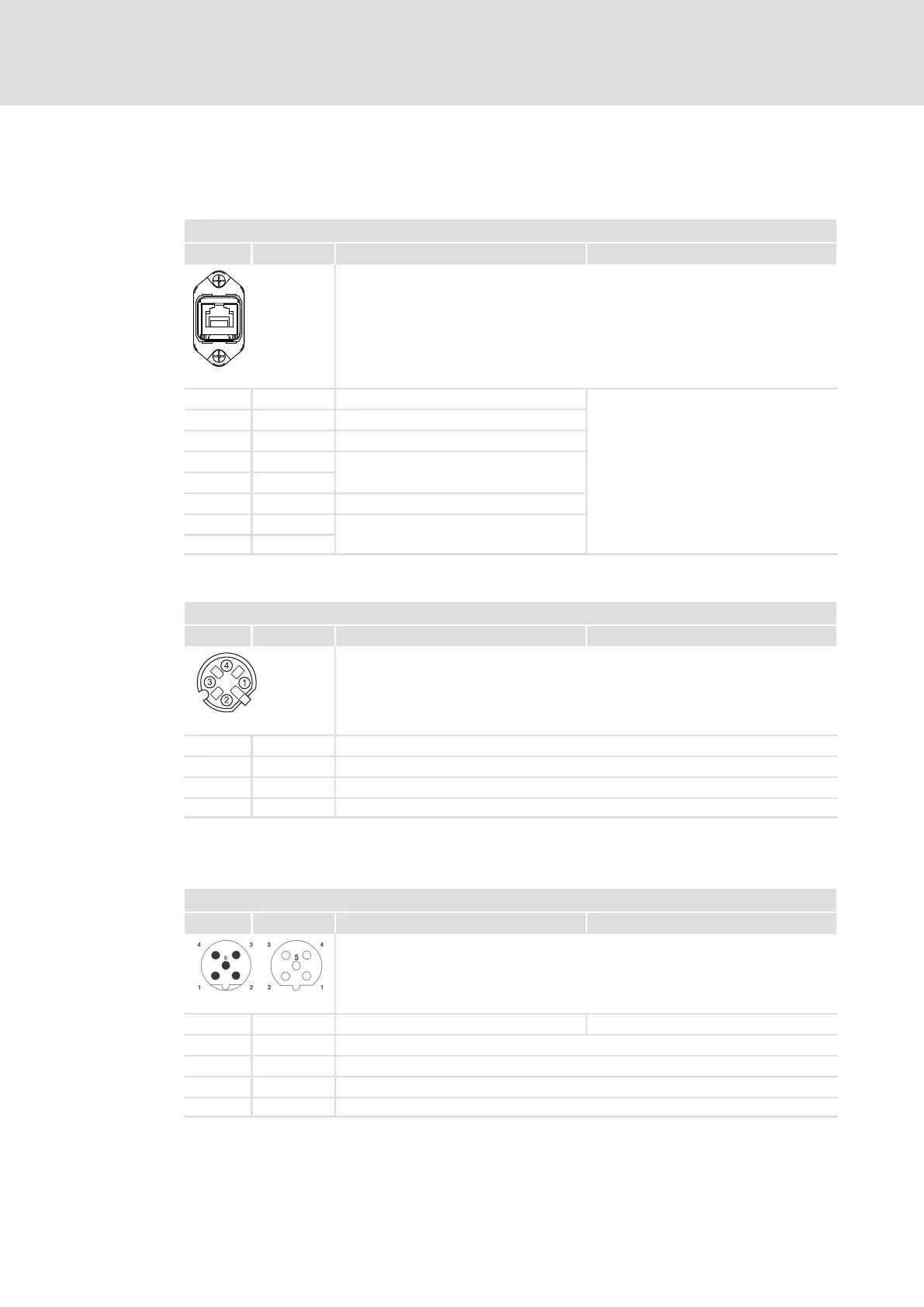

6.7.1 PROFINET® / EtherNet/IP
Push−pull plug
X31 − fieldbus input, X32 fieldbus output
Pin Signal Description Data
AIDA standard, type RJ45, socket, 8−pole
84DWTX0311
1 Tx+ Transmit path + (transmit)
2 Tx− Transmit path − (transmit)
3 Rx+ Receive path + (receive)
4 res.
−
5 res.
6 Rx− Receive path − (receive)
7 res.
−
8 res.
M12 plug, 4−pole
X3x − communication
Pin Signal Description Data
Type M12, 4−pole, D−coded
X31 −> sockets
X32 −> sockets
84DPSO05_5
1 Tx+ Transmit path +
2 Rx+ Receive path +
3 Tx− Transmit path −
4 Rx− Receive path −
6.7.2 PROFIBUS®
X3x − communication
Pin Signal Description Data
Type M12, 5−pole, B−coded
X31 −> input −> pins
X32 −> output −> sockets
84DPSO05_5
1 P5V2  Only assigned at the output 5 V DC / 30 mA (bus termination)
2 RxD/TxD−N Data line A (received/transmitted data, minus)
3 M5V2 Data ground (ground to 5 V)
4 RxD/TxD−P Data line B (received/transmitted data, plus)
5 n. c. − (shield connection above the housing)
The station address can be set via DIP switches 1 ... 64 behind the service hatch.
