Lenze 8400 protec - Keypad Control

Commissioning
Quick commissioning
Keypad control
8

144
EDS84DPS424 EN 5.0

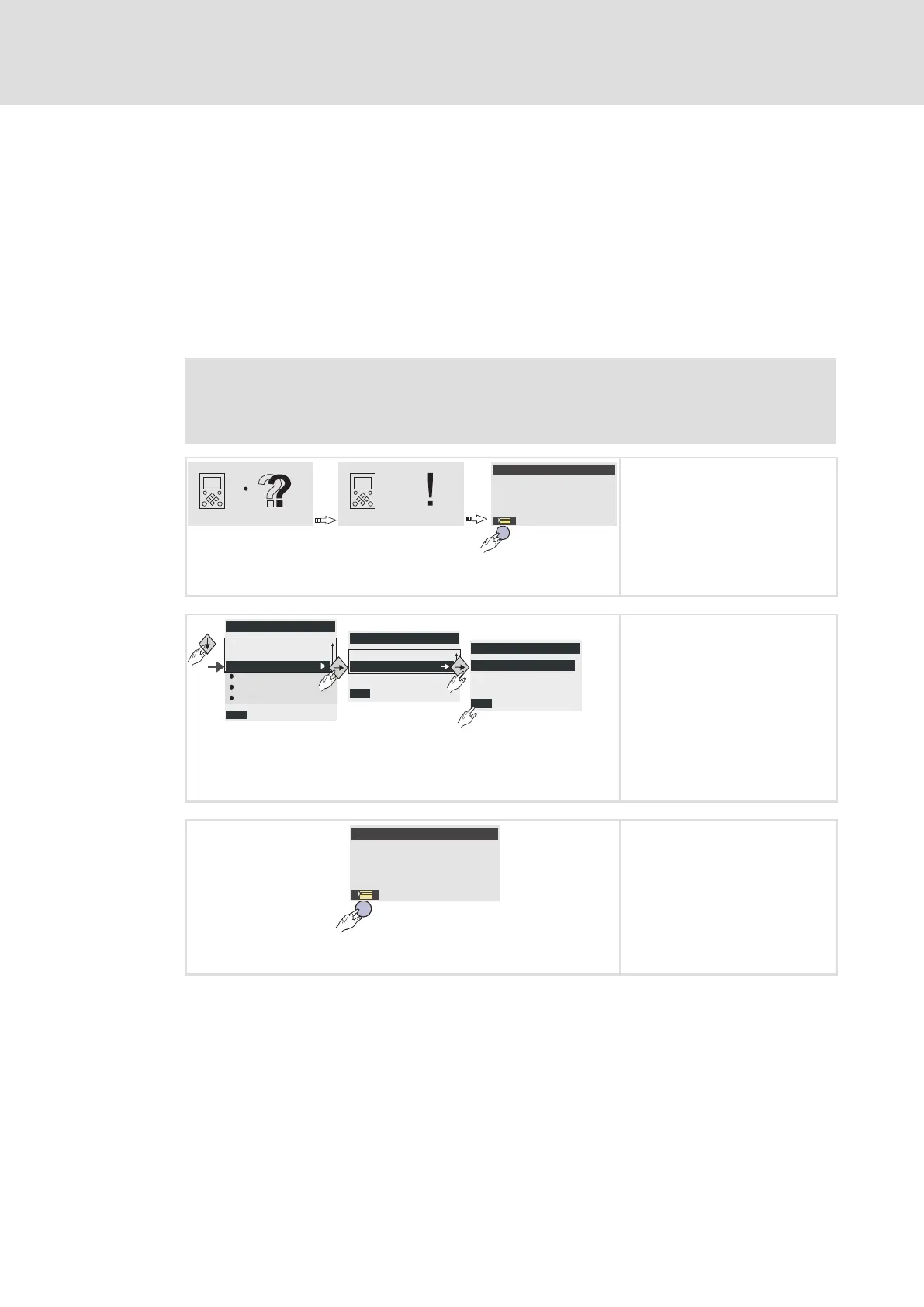

8.3.1 Keypad control
Commissioning steps
1. Wiring of power terminals
The "Electrical installation" chapter and the mounting instructions provide information on
the correct wiring of the power terminals according to the requirements of your device.
2. Wiring of control terminals.
3. Load Lenze setting to controller
 Note!
The application "actuating drive speed" is implemented with the Lenze
setting.
MCTRL: Act. speed val.
C00051
0 rpm
After attaching the keypad or
switching on the controller with
keypad attached, the connection
between keypad and controller is
established.
The connection has been
established when the code C00051
appears in the display.
 Then press the left function key.
SAVE
Par1 8400 StateLineC
User - Menu
Code list
Quick commissioning
SAVE
Par1 Quick commissioning
Terminals
Keypad
EDIT
Load Lenze setting
C00002/1
 Starting from "User menu" scroll
down with button to "Quick
commissioning" menu
 Click right button.
 Select "Keypad" menu.
 Click right button.
 Code 00002/1:
– Parameterise with left "Edit"
function key
– Select value "1"− −> On/Start
and confirm with right "OK"
function key.
MCTRL: Act. speed val.
C00051
0 rpm
 When the Lenze setting is
loaded, the display goes off for a
short time.
 When the display goes on again,
the main menu appears.
– The main menu settings can be
defined by the user using
codes C00465 ... C00469.
 Press the left function key to go
to the user menu.
