Electrical installation − HighLine/StateLine version
Devices in a power range of 0.75 ... 7.5 kW (3/PE AC 400 V)
Terminal assignment of the power connections
6
88
EDS84DPS424 EN 5.0

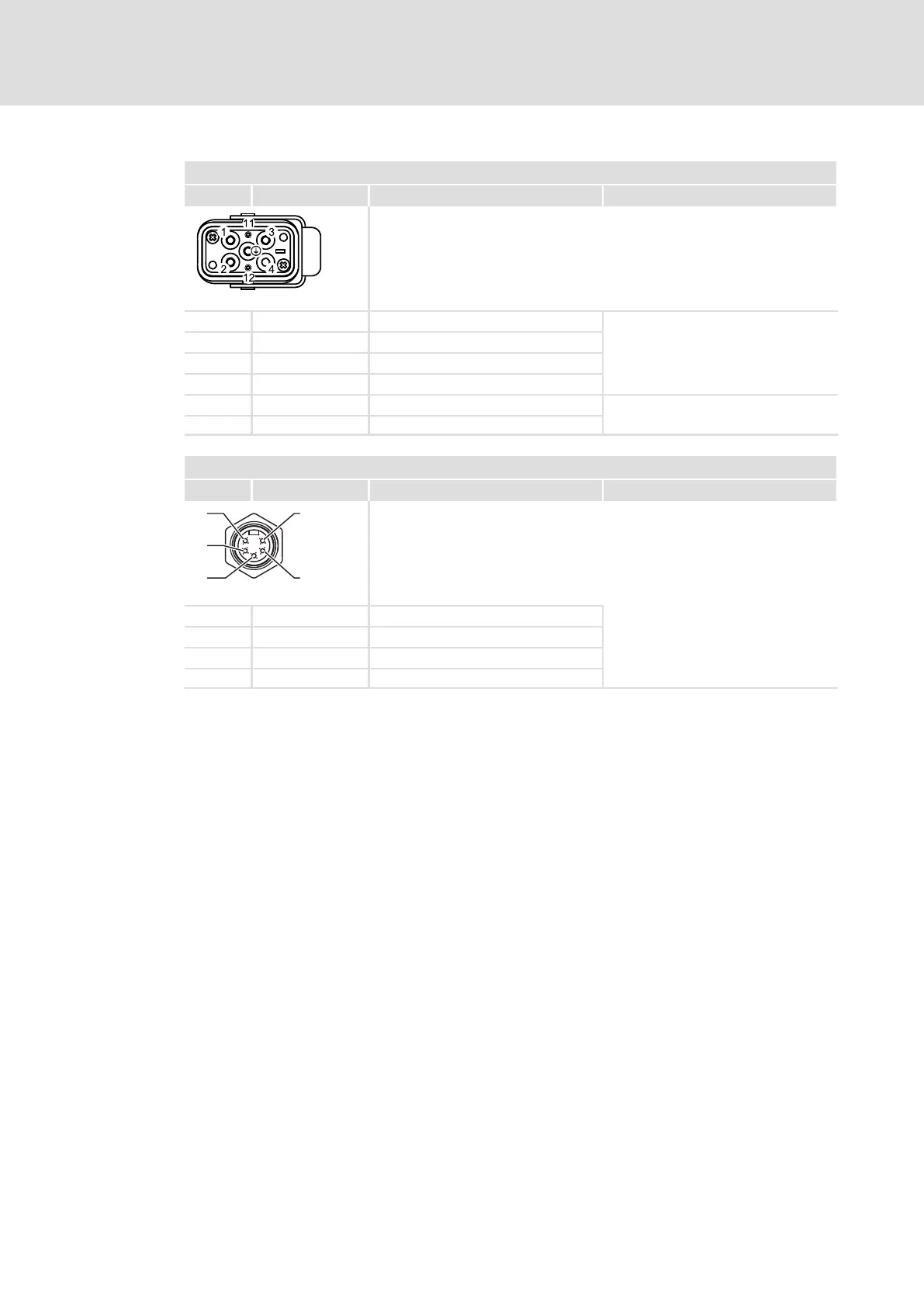

X11 − mains loop−through technique (optional)
Pin Connection Description Data
DESINA type Q4/2, sockets
84DWTX0110
1 L1 Phase L1
Max. 6 mm
2
2 L2 Phase L2
3 L3 Phase L3
PE PE conductor
11 24E External 24−V power supply
Max. 2.5 mm
2
12 GND External reference potential
X11 − mains connection − device version E84DxH...
Pin Connection Description Data
5
4
3
2
1
Type Molex, Brad Mini−Change, pins
E84DWTXXMO 2
4 24E External 24 V voltage supply
max. 16 AWG
2 GND External reference potential 24 V
3 PE PE conductor
1, 5 n. c. not assigned
