4×analog output
5
The modular system
5.11
l
5.11-1
EDSPM-TXXX-3.0-04/2004
5.11 4×analog output
The module 4×analog output has four analog outputs which can be parameterised
individually. The analog outputs are isolated with regard to the backplane bus.
Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z
4 analog outputs
z
DC 24 V supply voltage
z
The outputs can be parameterised individually
z
One reference potential (GND) for all outputs
z
Output ranges: Voltage, current
z
LED diagnostics displays a wire breakage at current output and a short
circuit at voltage output
0
1
2
epm-t015

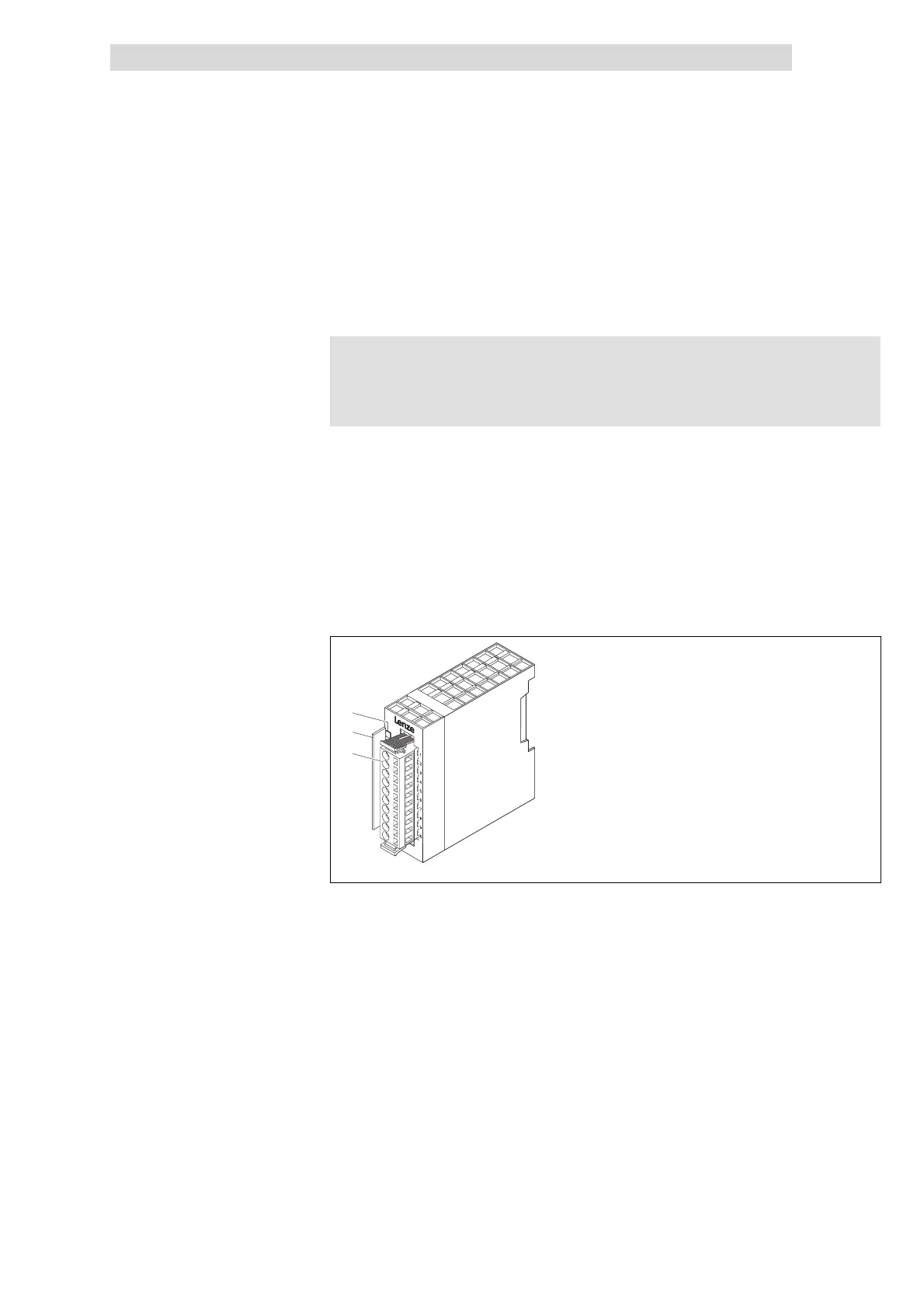

Fig. 5.11-1 Overview of 4×analog output
LED for status display
Bit address label card
Plug-in terminal strip
Description
Features
Overview
