4×analog input / output
5
The modular system
5.12
l
5.12-1
EDSPM-TXXX-3.0-04/2004
5.12 4×analog input / output
The module 4×analog input / output has two analog inputs and two analog outputs
which can be parameterised individually. The analog inputs and outputs are
isolated from the backplane bus and the voltage supply.
Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z
2 analog inputs
z
2 analog outputs
z
DC 24 V supply voltage
z
The inputs and outputs can be parameterised individually
z
Input ranges: Voltage, current
z
Output ranges: Voltage, current
z
LED diagnostics displays a wire breakage in the current measuring range
0
1
2
epm-t015

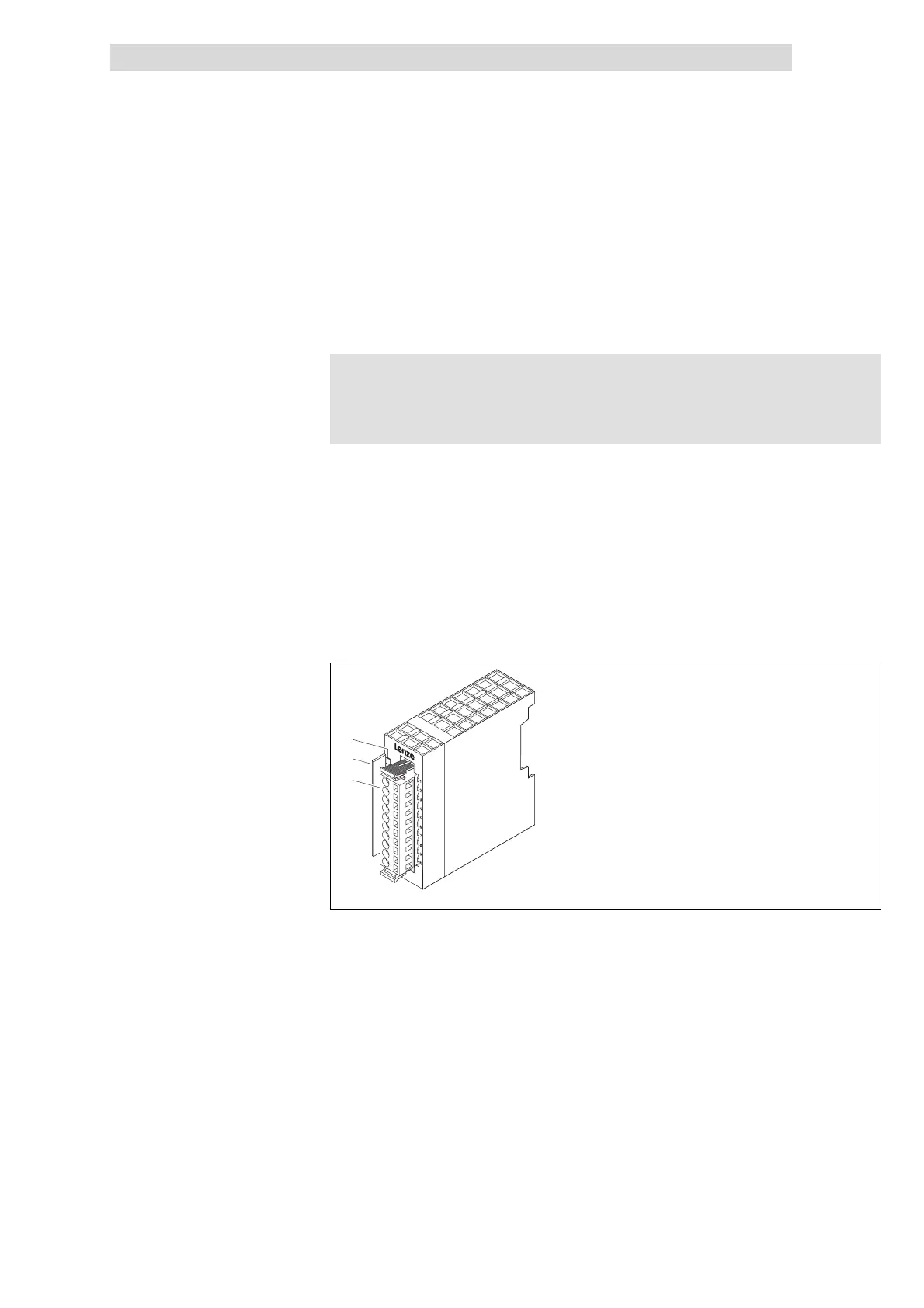

Fig. 5.12-1 Overview of 4×analog input / output
LED for status display
Bit address label card
Plug-in terminal strip
Description
Features
Overview
