Chapter 12 VPN
http://www.level1.com Page 145
"Domain name" and "IP address".
12.2.3.3 Other party dynamically connects to local machine

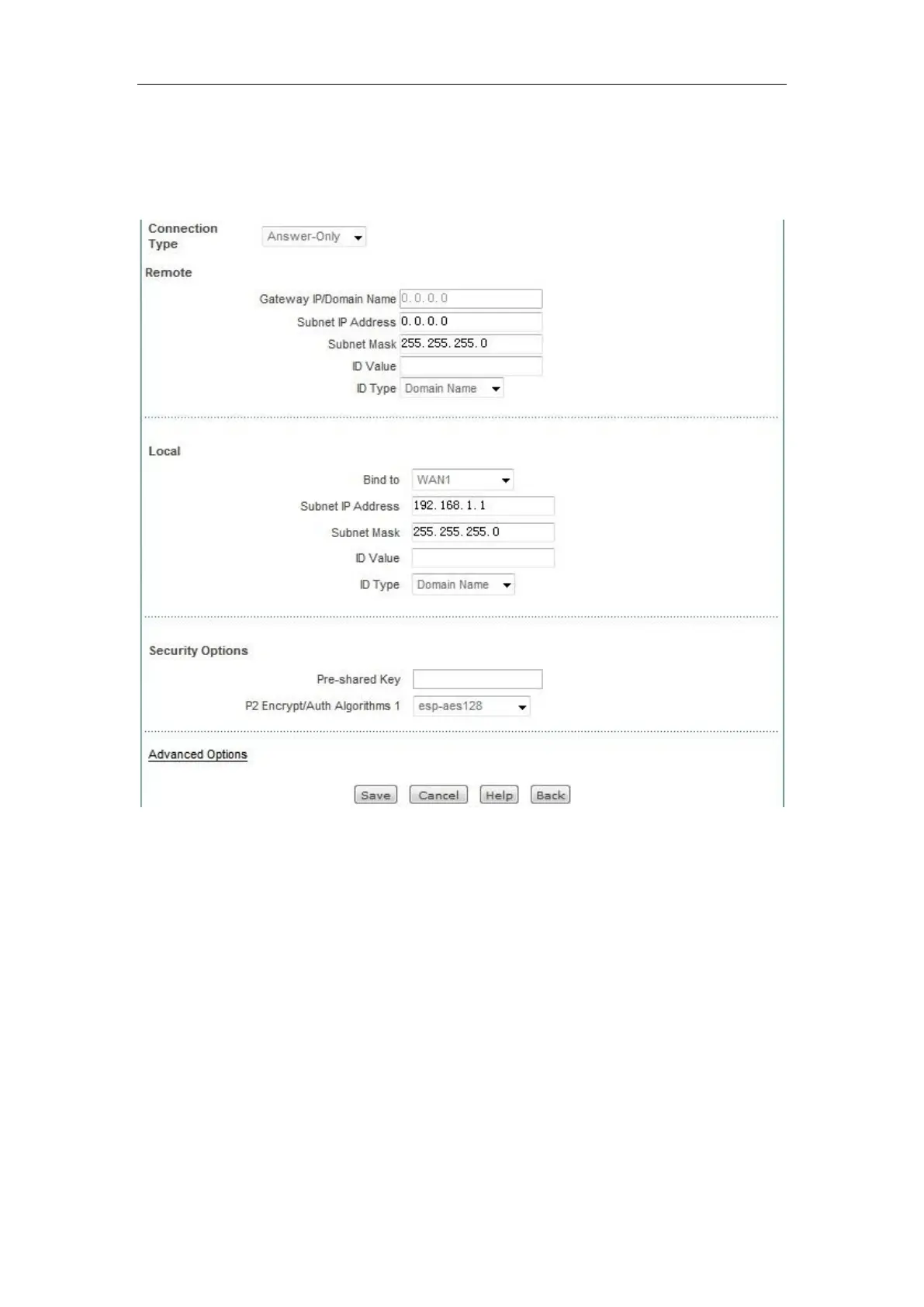

Figure 12_19 Other party dynamically connects to local machine
The parameters for the other party to dynamically connect to local machine has been described in
the previous two sections, so there is no need to repeat any more. When selecting "Other party
dynamically connects to the local", the remote gateway address (domain name) needs not be
configured. In this case, this device can only be used as the responder in establishing an IPSec
tunnel, and the IPSec tunnel should have the aggressive mode selected at both ends for the IKE
negotiation in the first phase.
