Chapter 6 Network parameters
http://www.level1.com Page 24

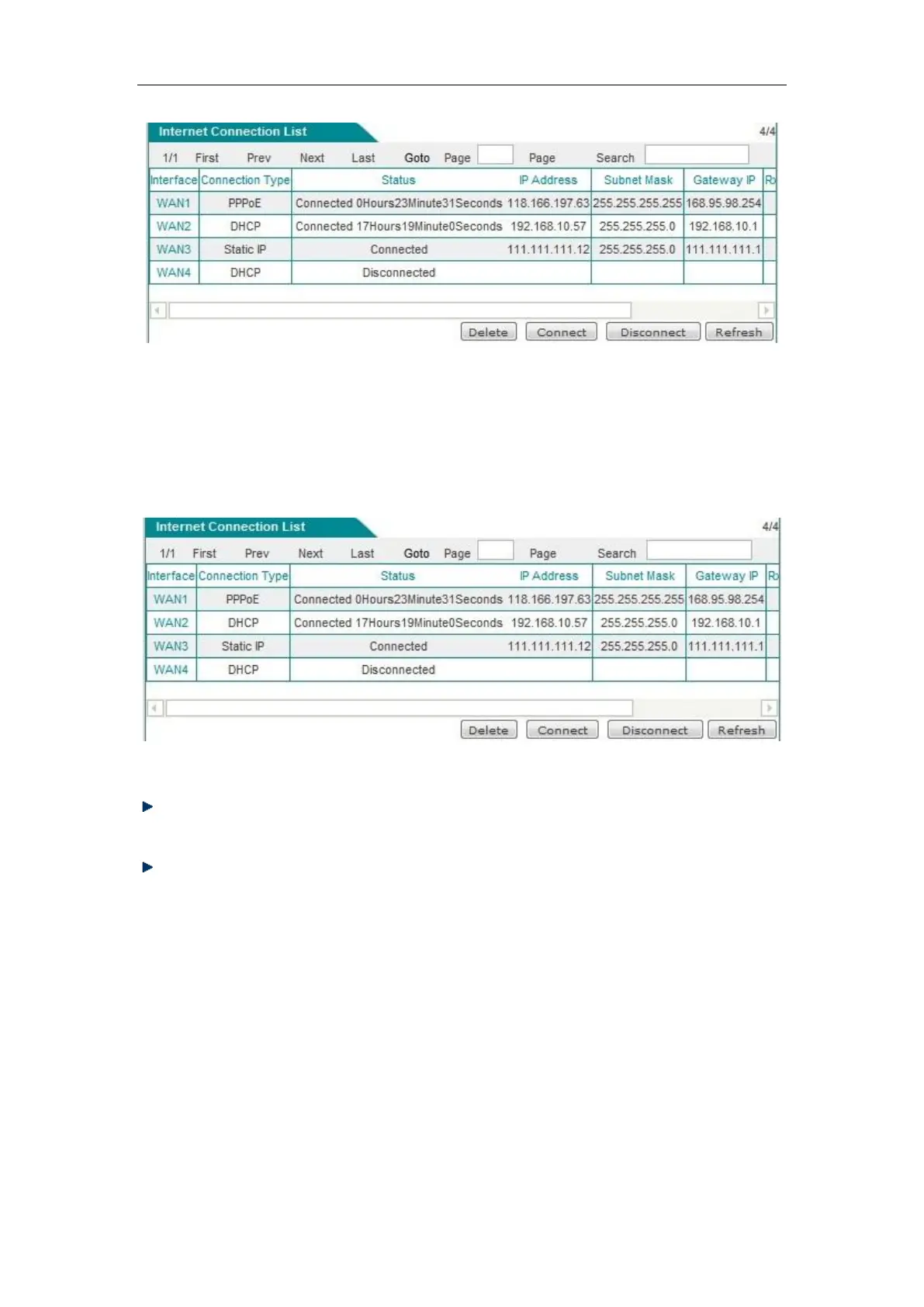

Figure 6_6 Internet Connection List - PPPoE access
2. Update and release of dynamic IP accesslines
If a line is a dynamic IP access line, then click on the interface, the "Update" and "Release"
bLeveloneons are displayed below the "Line connection information list", as shown in Figure 6_7.
Figure 6_7 Internet Connection List - Dynamic IP access
Update: The system automatically complete the process of releasing the IP address, and then
obtaining an IP address again.
Release: Releases the currently obtained dynamic IP address.
6.2 Line combination
This section describes the Network parameter -> Line combination page.
In the line combination configuration, you can quickly configure line combination modes, and
other related parameters, and specify the detection interval, detection number, detection target IP
address and bandwidth of the lines.
