Chapter 12 VPN
http://www.level1.com Page 147

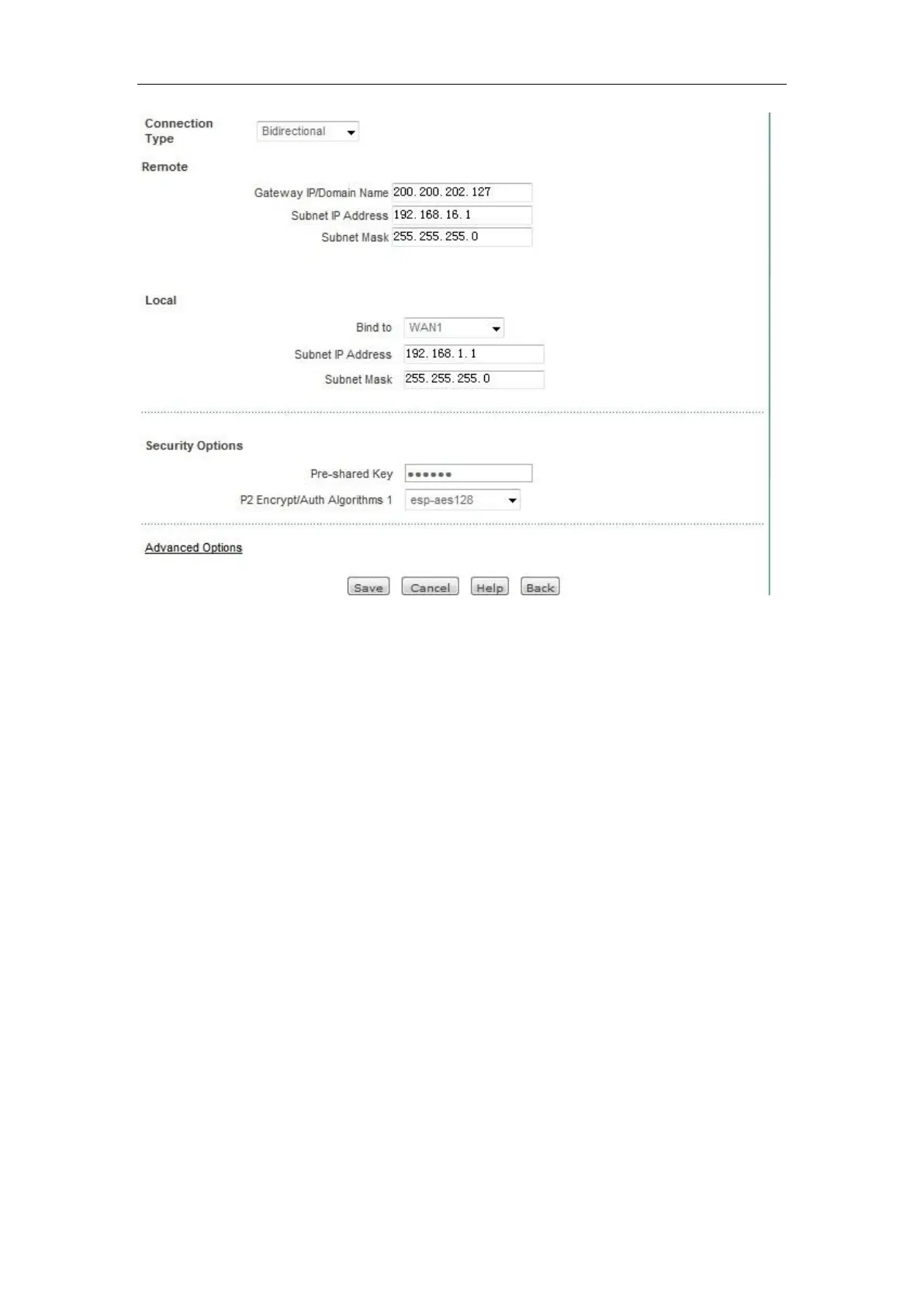

Figure 12_21 Gateway to gateway configuration 1
Remote gateway address is set as the WAN IP address of Beijing gateway, 200.200.202.127, and
remote Intranet address is the LAN IP address of Beijing gateway, 192.168.1.1, which is locally
bound at WAN1 port. Set the preshared key for the first phase to testing, and the encryption and
authentication algorithms for the second phase is esp-ase-128.
2. Configure Beijing gateway
