Chapter 12 VPN
http://www.level1.com Page 150
12.2.4.2 Dynamic on one party
Internet
UTT VPN 网关
LAN: 192.168.16.1/24
WAN:动态获取
LAN: 192.168.1.1/24
WAN:200.200.202.126/24
UTT VPN 网关
上海
北京
IPSec 隧道

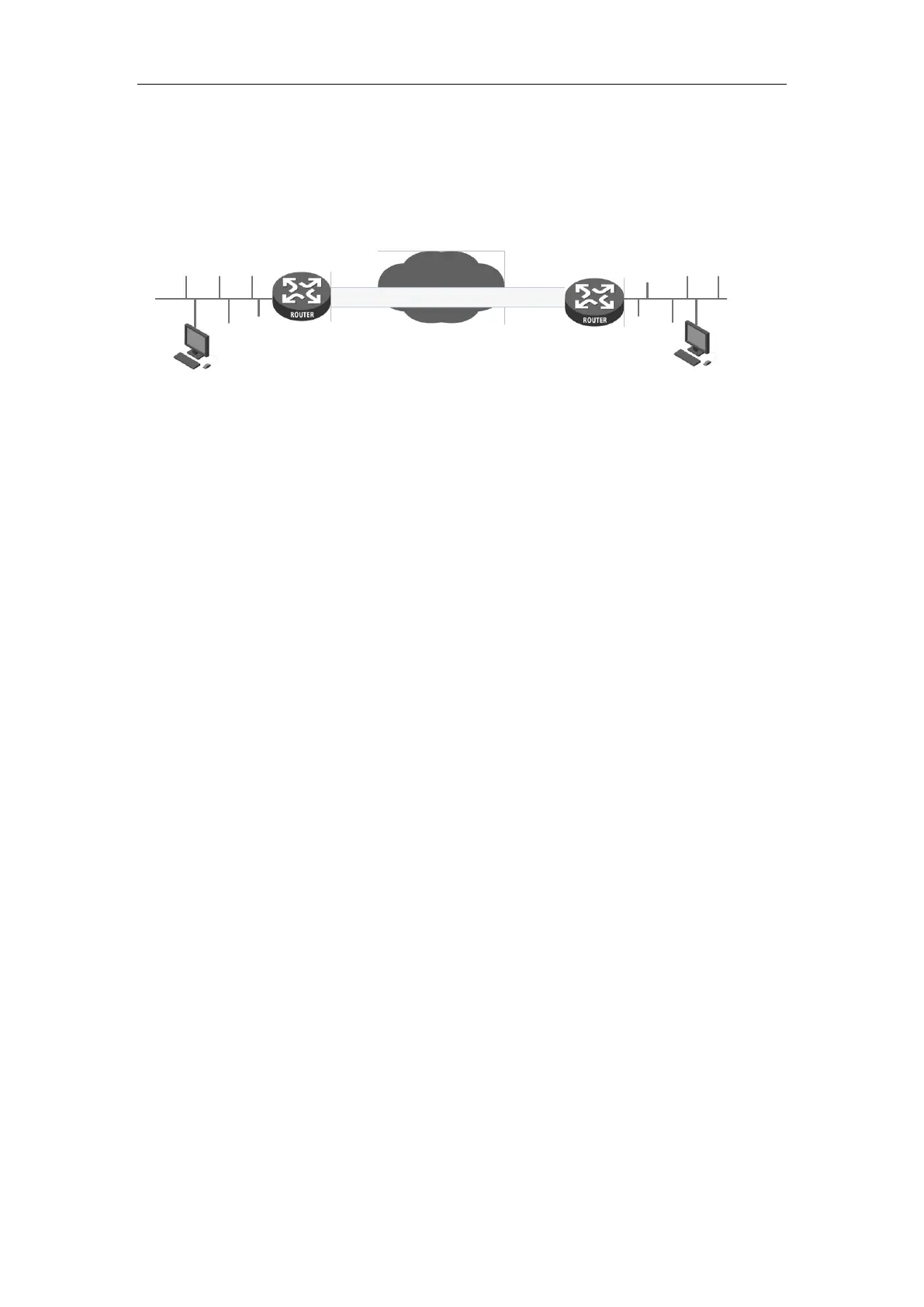

Figure 12_25 "Dynamic on one party" topology
Requirements:
In this scenario, a company is based in Shanghai. It has a branch office in Beijing, and hopes to
achieve a mutual access to the internal resources of the LAN in two places. This scenario uses the
IPSec protocol to establish VPN tunnels, and the HiPER router is used by the VPN gateway in two
places at the following addresses:
Shanghai gateway:
Intranet network segment: 192.168.1.0/24.
LAN IP address: 192.168.1.1/24.
WAN domain name: 200.200.202.126/24.
Beijing gateway:
Intranet network segment: 192.168.16.0/24.
LAN IP address: 192.168.16.1/24.
IP address of WAN1 port: Acquired dynamically.
The configuring steps are follows:
1. Configure Shanghai gateway
