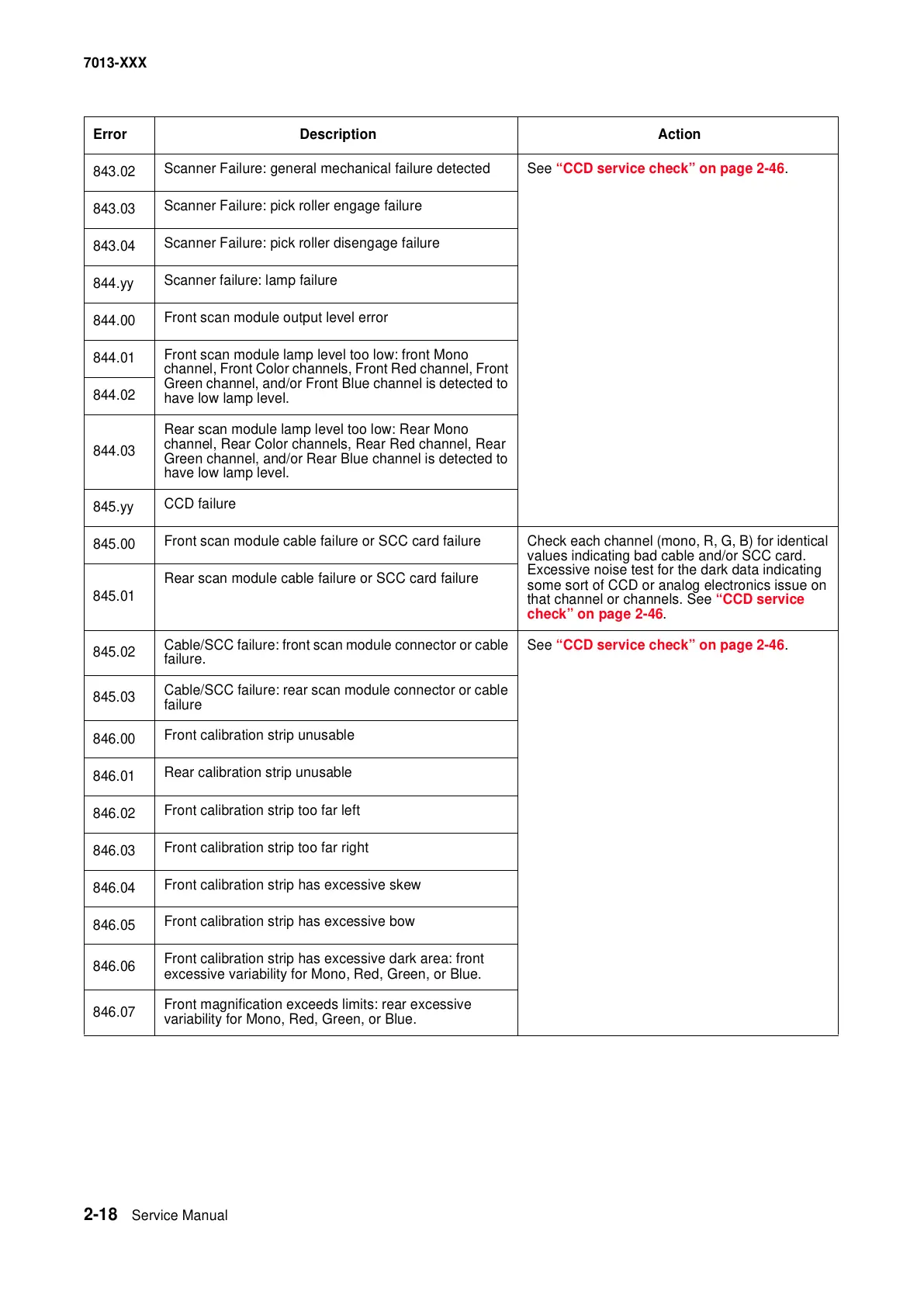

2-18 Service Manual
7013-XXX
843.02
Scanner Failure: general mechanical failure detected See “CCD service check” on page 2-46.
843.03
Scanner Failure: pick roller engage failure
843.04
Scanner Failure: pick roller disengage failure
844.yy
Scanner failure: lamp failure
844.00
Front scan module output level error
844.01
Front scan module lamp level too low: front Mono
channel, Front Color channels, Front Red channel, Front
Green channel, and/or Front Blue channel is detected to
have low lamp level.
844.02
844.03
Rear scan module lamp level too low: Rear Mono
channel, Rear Color channels, Rear Red channel, Rear
Green channel, and/or Rear Blue channel is detected to
have low lamp level.
845.yy
CCD failure
845.00
Front scan module cable failure or SCC card failure Check each channel (mono, R, G, B) for identical
values indicating bad cable and/or SCC card.
Excessive noise test for the dark data indicating
some sort of CCD or analog electronics issue on
that channel or channels. See “CCD service
check” on page 2-46.
845.01
Rear scan module cable failure or SCC card failure
845.02
Cable/SCC failure: front scan module connector or cable
failure.
See “CCD service check” on page 2-46.
845.03
Cable/SCC failure: rear scan module connector or cable
failure
846.00
Front calibration strip unusable
846.01
Rear calibration strip unusable
846.02
Front calibration strip too far left
846.03
Front calibration strip too far right
846.04
Front calibration strip has excessive skew
846.05
Front calibration strip has excessive bow
846.06
Front calibration strip has excessive dark area: front
excessive variability for Mono, Red, Green, or Blue.
846.07
Front magnification exceeds limits: rear excessive
variability for Mono, Red, Green, or Blue.
