Repair information 4-3
5025-2xx, 4xx

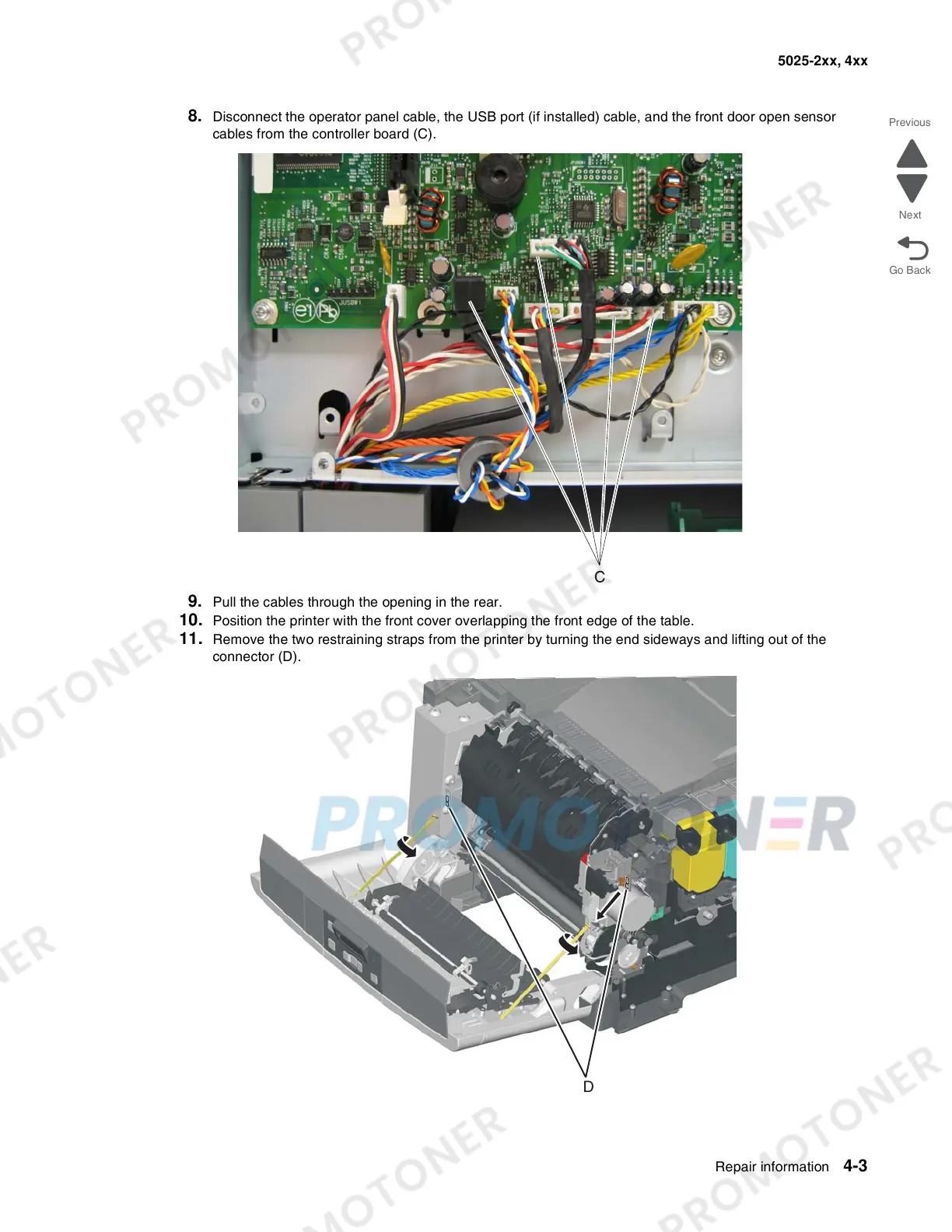

8. Disconnect the operator panel cable, the USB port (if installed) cable, and the front door open sensor
cables from the controller board (C).
9. Pull the cables through the opening in the rear.
10. Position the printer with the front cover overlapping the front edge of the table.
11. Remove the two restraining straps from the printer by turning the end sideways and lifting out of the
connector (D).
