Repair information 4-81
5025-2xx, 4xx

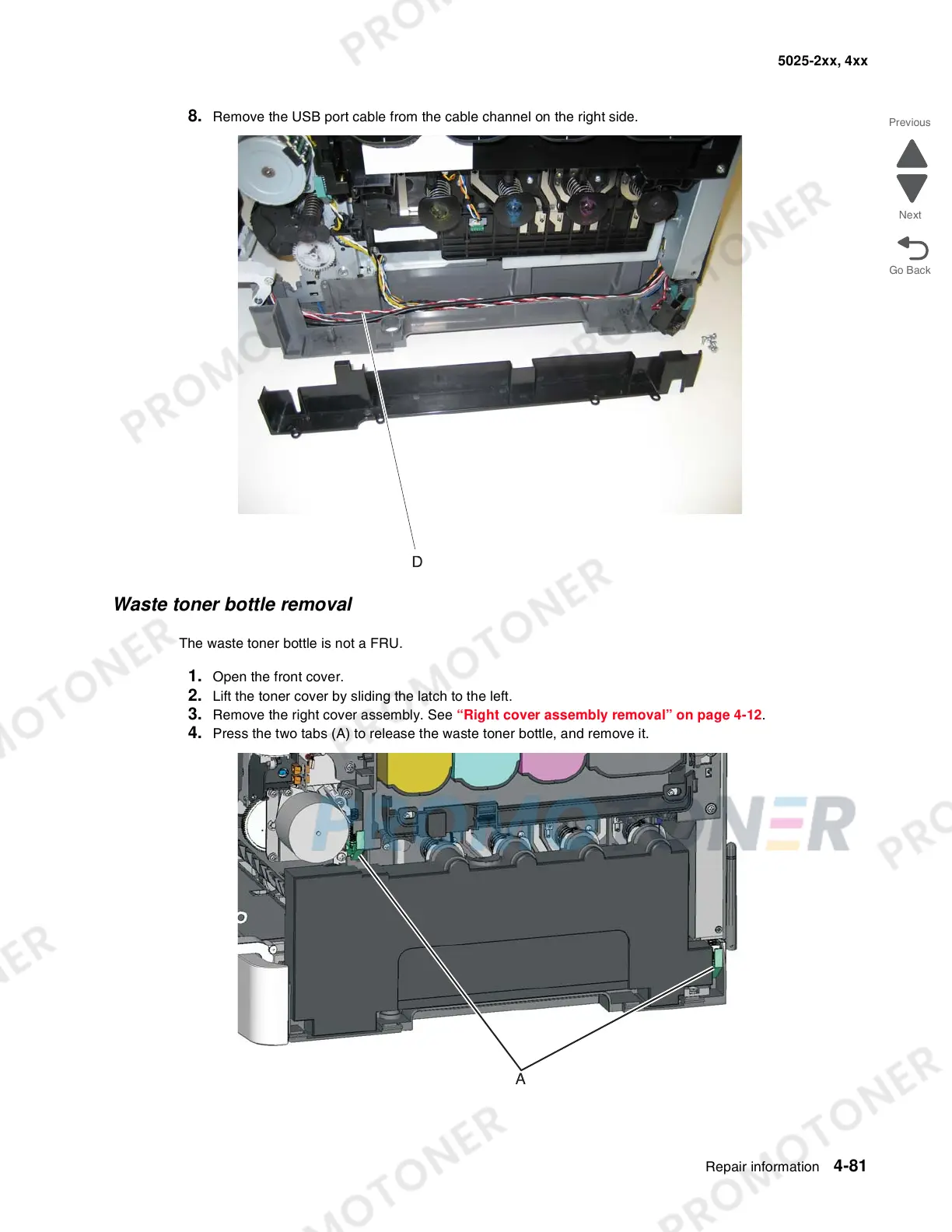

8. Remove the USB port cable from the cable channel on the right side.
Waste toner bottle removal
The waste toner bottle is not a FRU.
1. Open the front cover.
2. Lift the toner cover by sliding the latch to the left.
3. Remove the right cover assembly. See “Right cover assembly removal” on page 4-12.
4. Press the two tabs (A) to release the waste toner bottle, and remove it.
