Lexmark C543dn Service Manual

Repair information 4-85
5025-2xx, 4xx
Go Back
Previous
Next

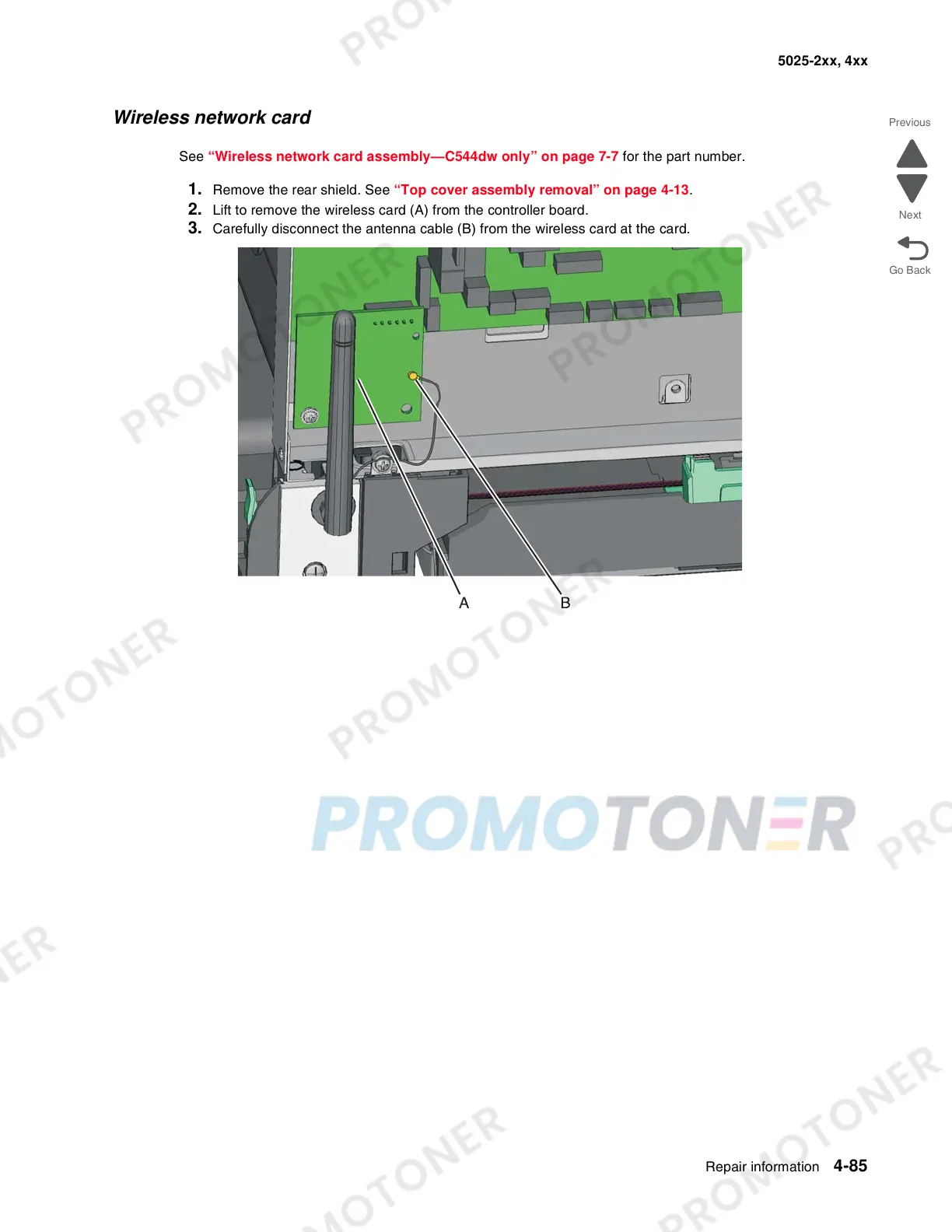

Wireless network card
See “Wireless network card assembly—C544dw only” on page 7-7 for the part number.
1. Remove the rear shield. See “Top cover assembly removal” on page 4-13.
2. Lift to remove the wireless card (A) from the controller board.
3. Carefully disconnect the antenna cable (B) from the wireless card at the card.
