4-84 Service Manual
5025-2xx, 4xx

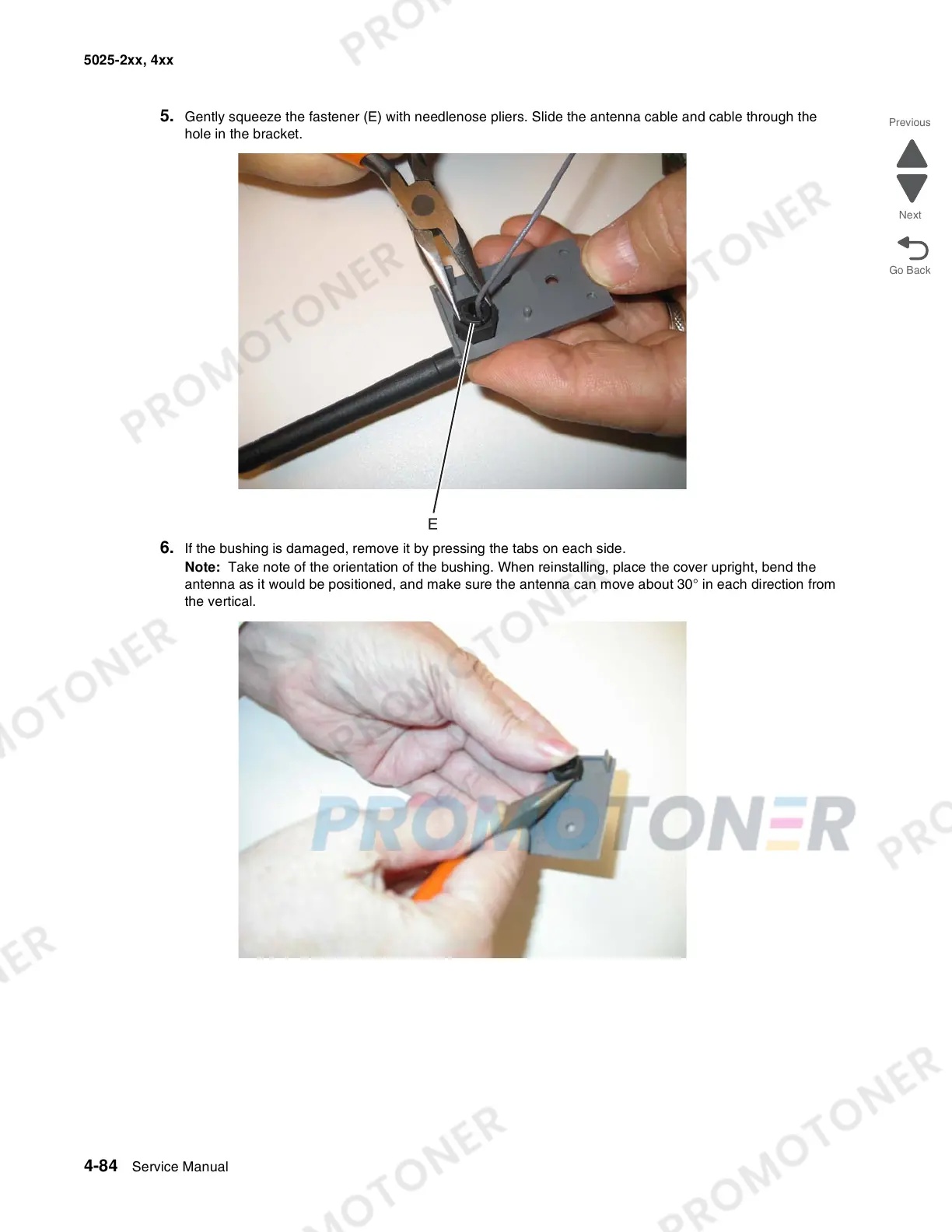

5. Gently squeeze the fastener (E) with needlenose pliers. Slide the antenna cable and cable through the
hole in the bracket.
6. If the bushing is damaged, remove it by pressing the tabs on each side.
Note: Take note of the orientation of the bushing. When reinstalling, place the cover upright, bend the
antenna as it would be positioned, and make sure the antenna can move about 30° in each direction from
the vertical.
