Lexmark C543dn Service Manual

7-12 Service Manual
5025-2xx, 4xx
Go Back
Previous
Next

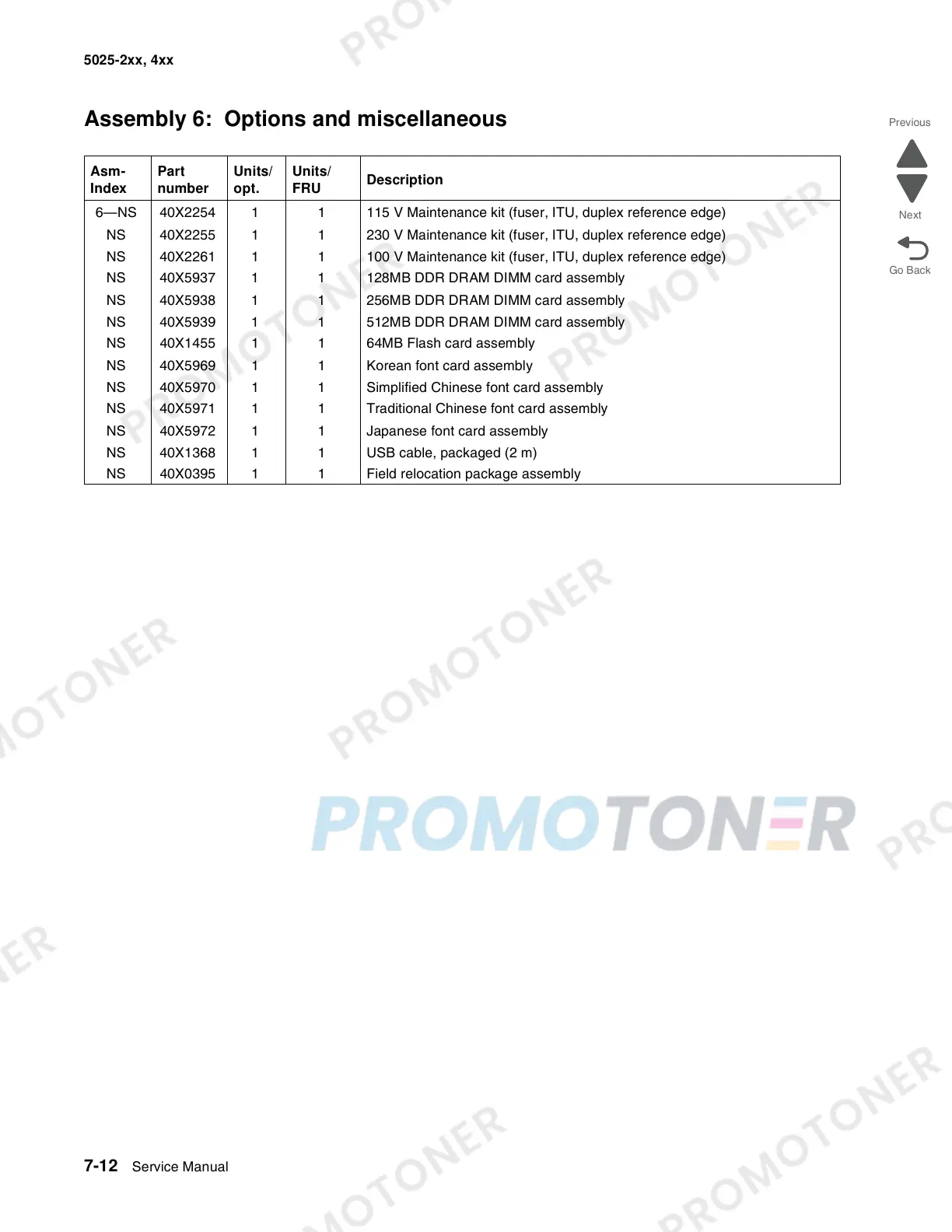

Assembly 6: Options and miscellaneous
Asm-
Index
Part
number
Units/
opt.
Units/
FRU
Description
6—NS 40X2254 1 1 115 V Maintenance kit (fuser, ITU, duplex reference edge)
NS 40X2255 1 1 230 V Maintenance kit (fuser, ITU, duplex reference edge)
NS 40X2261 1 1 100 V Maintenance kit (fuser, ITU, duplex reference edge)
NS 40X5937 1 1 128MB DDR DRAM DIMM card assembly
NS 40X5938 1 1 256MB DDR DRAM DIMM card assembly
NS 40X5939 1 1 512MB DDR DRAM DIMM card assembly
NS 40X1455 1 1 64MB Flash card assembly
NS 40X5969 1 1 Korean font card assembly
NS 40X5970 1 1 Simplified Chinese font card assembly
NS 40X5971 1 1 Traditional Chinese font card assembly
NS 40X5972 1 1 Japanese font card assembly
NS 40X1368 1 1 USB cable, packaged (2 m)
NS 40X0395 1 1 Field relocation package assembly
