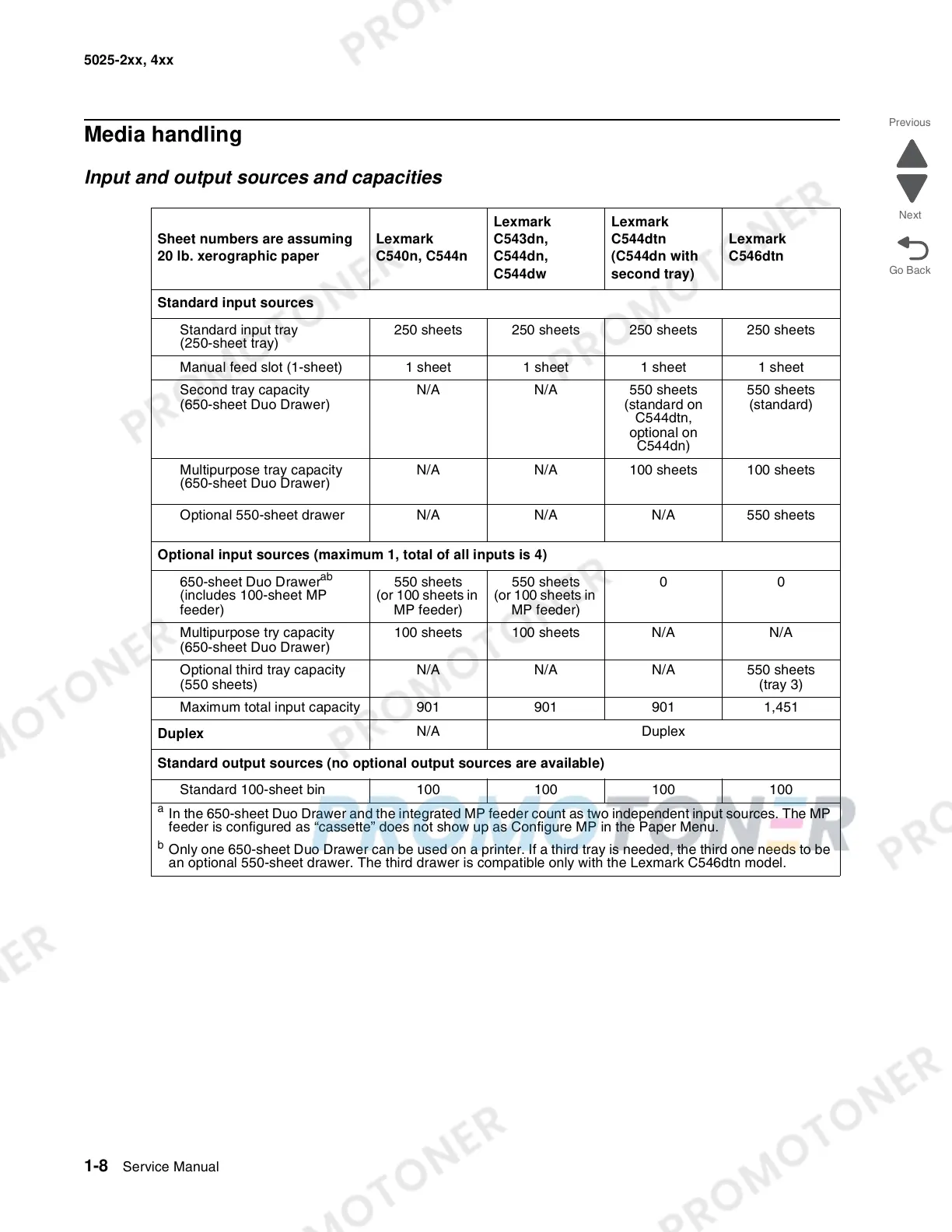

Media handling
Input and output sources and capacities
Sheet numbers are assuming
20 lb. xerographic paper
Lexmark
C540n, C544n
Lexmark
C543dn,
C544dn,
C544dw
Lexmark
C544dtn
(C544dn with
second tray)
Lexmark
C546dtn
Standard input sources
Standard input tray
(250-sheet tray)
250 sheets 250 sheets 250 sheets 250 sheets
Manual feed slot (1-sheet) 1 sheet 1 sheet 1 sheet 1 sheet
Second tray capacity
(650-sheet Duo Drawer)
N/A N/A 550 sheets
(standard on
C544dtn,
optional on
C544dn)
550 sheets
(standard)
Multipurpose tray capacity
(650-sheet Duo Drawer)
N/A N/A 100 sheets 100 sheets
Optional 550-sheet drawer N/A N/A N/A 550 sheets
Optional input sources (maximum 1, total of all inputs is 4)
650-sheet Duo Drawer
ab
(includes 100-sheet MP
feeder)
550 sheets
(or 100 sheets in
MP feeder)
550 sheets
(or 100 sheets in
MP feeder)
00
Multipurpose try capacity
(650-sheet Duo Drawer)
100 sheets 100 sheets N/A N/A
Optional third tray capacity
(550 sheets)
N/A N/A N/A 550 sheets
(tray 3)
Maximum total input capacity 901 901 901 1,451
Duplex
N/A Duplex
Standard output sources (no optional output sources are available)
Standard 100-sheet bin 100 100 100 100
a
In the 650-sheet Duo Drawer and the integrated MP feeder count as two independent input sources. The MP
feeder is configured as “cassette” does not show up as Configure MP in the Paper Menu.
b
Only one 650-sheet Duo Drawer can be used on a printer. If a third tray is needed, the third one needs to be
an optional 550-sheet drawer. The third drawer is compatible only with the Lexmark C546dtn model.
