Lexmark C543dn - High-Voltage Power Supply (HVPS) with or Without Spring

Repair information 4-39
5025-2xx, 4xx
Go Back
Previous
Next
High-voltage power supply (HVPS) with or without spring
1.
Remove the left cover. See “Left cover assembly removal” on page 4-6.

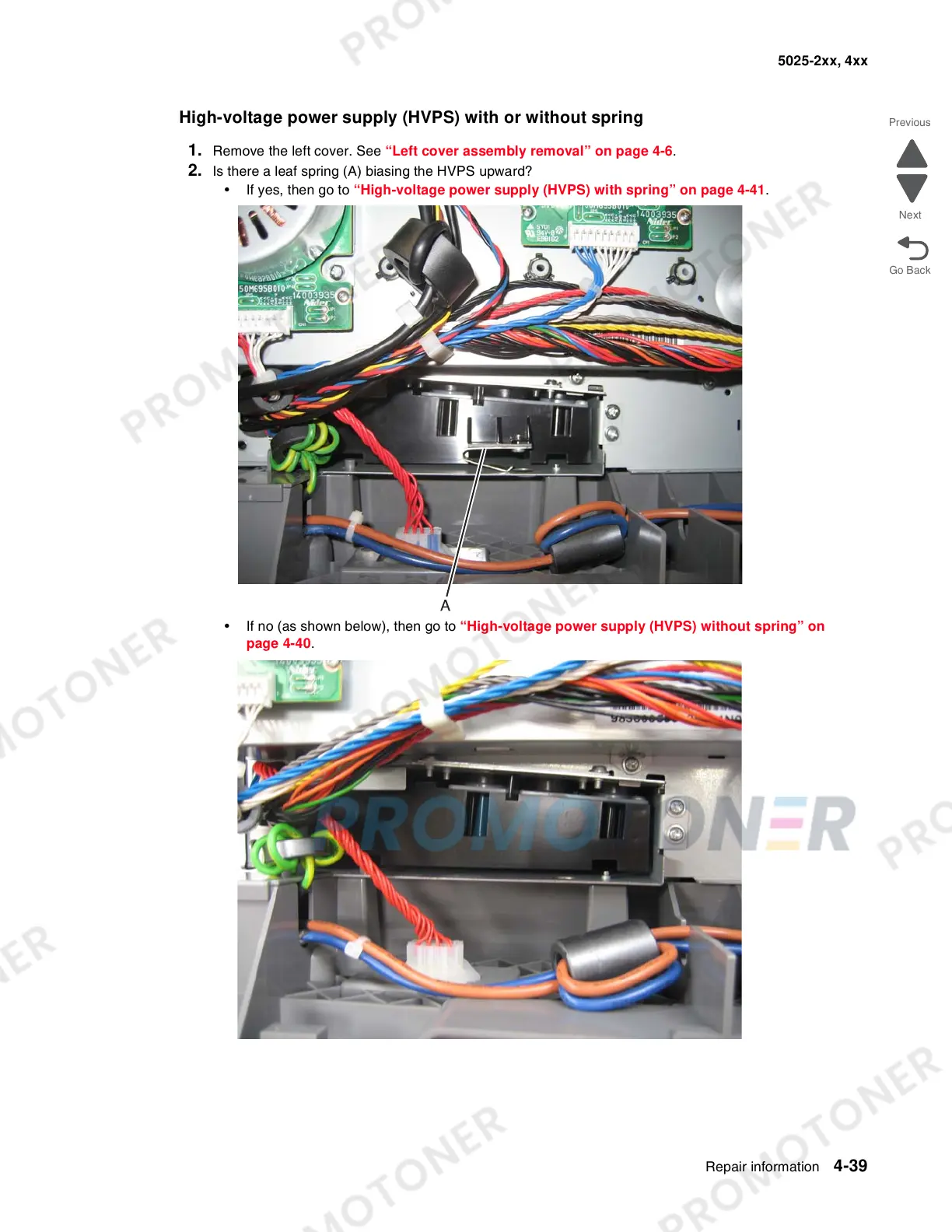

2. Is there a leaf spring (A) biasing the HVPS upward?
• If yes, then go to “High-voltage power supply (HVPS) with spring” on page 4-41.
• If no (as shown below), then go to “High-voltage power supply (HVPS) without spring” on
page 4-40.
