4-30 Service Manual
5025-2xx, 4xx

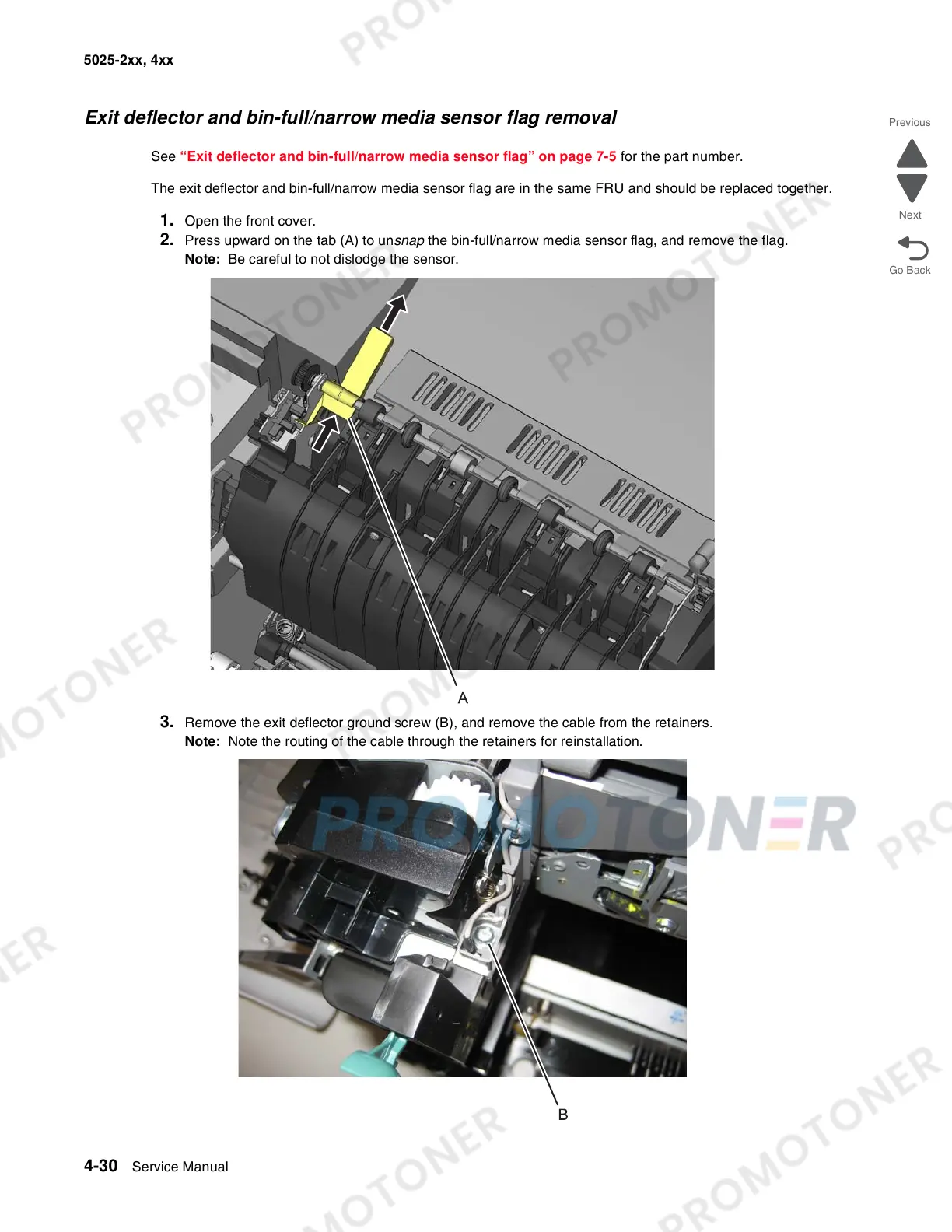

Exit deflector and bin-full/narrow media sensor flag removal
See “Exit deflector and bin-full/narrow media sensor flag” on page 7-5 for the part number.
The exit deflector and bin-full/narrow media sensor flag are in the same FRU and should be replaced together.
1. Open the front cover.
2. Press upward on the tab (A) to unsnap the bin-full/narrow media sensor flag, and remove the flag.
Note: Be careful to not dislodge the sensor.
3. Remove the exit deflector ground screw (B), and remove the cable from the retainers.
Note: Note the routing of the cable through the retainers for reinstallation.
