Lexmark C543dn Service Manual

Repair information 4-41
5025-2xx, 4xx
Go Back
Previous
Next

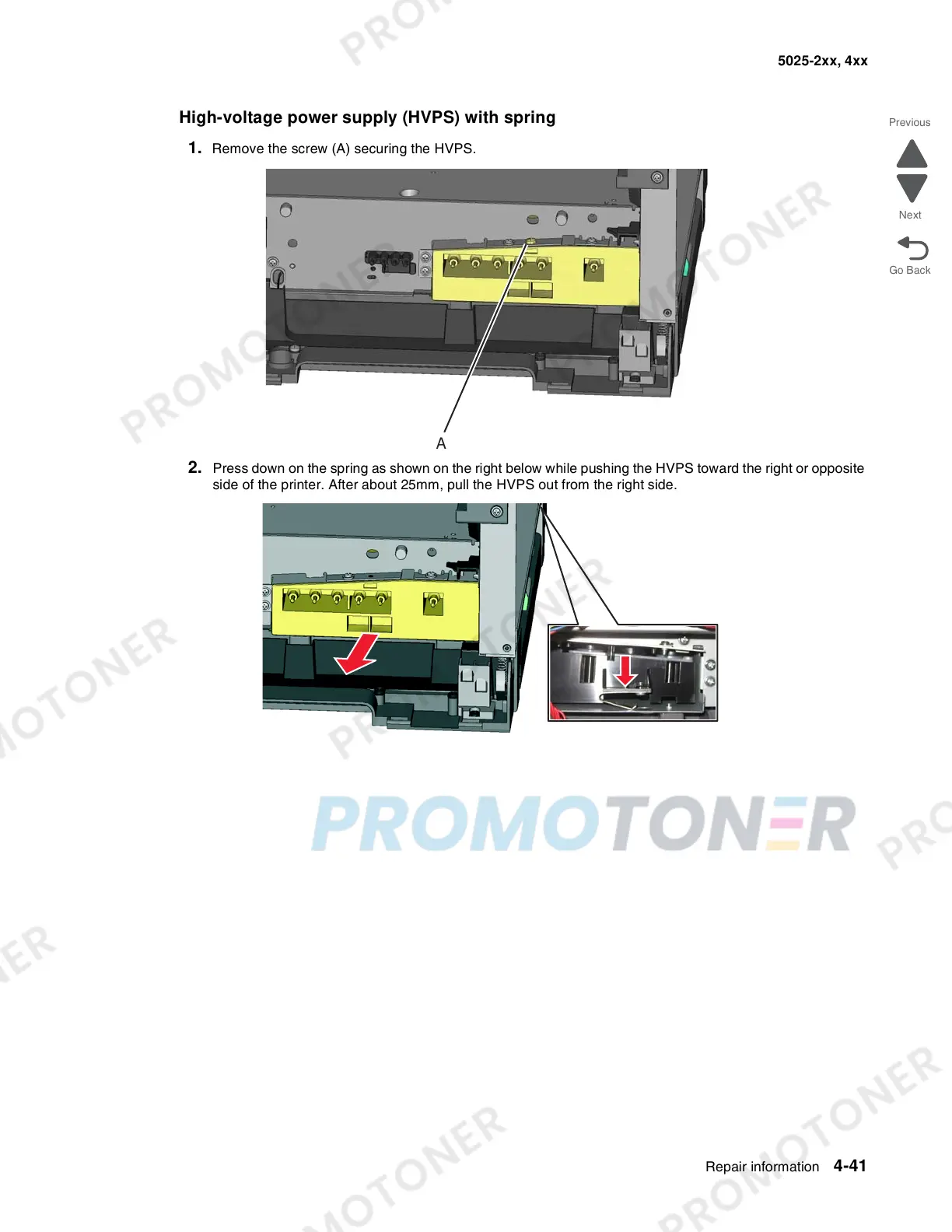

High-voltage power supply (HVPS) with spring
1. Remove the screw (A) securing the HVPS.
2. Press down on the spring as shown on the right below while pushing the HVPS toward the right or opposite
side of the printer. After about 25mm, pull the HVPS out from the right side.
A
