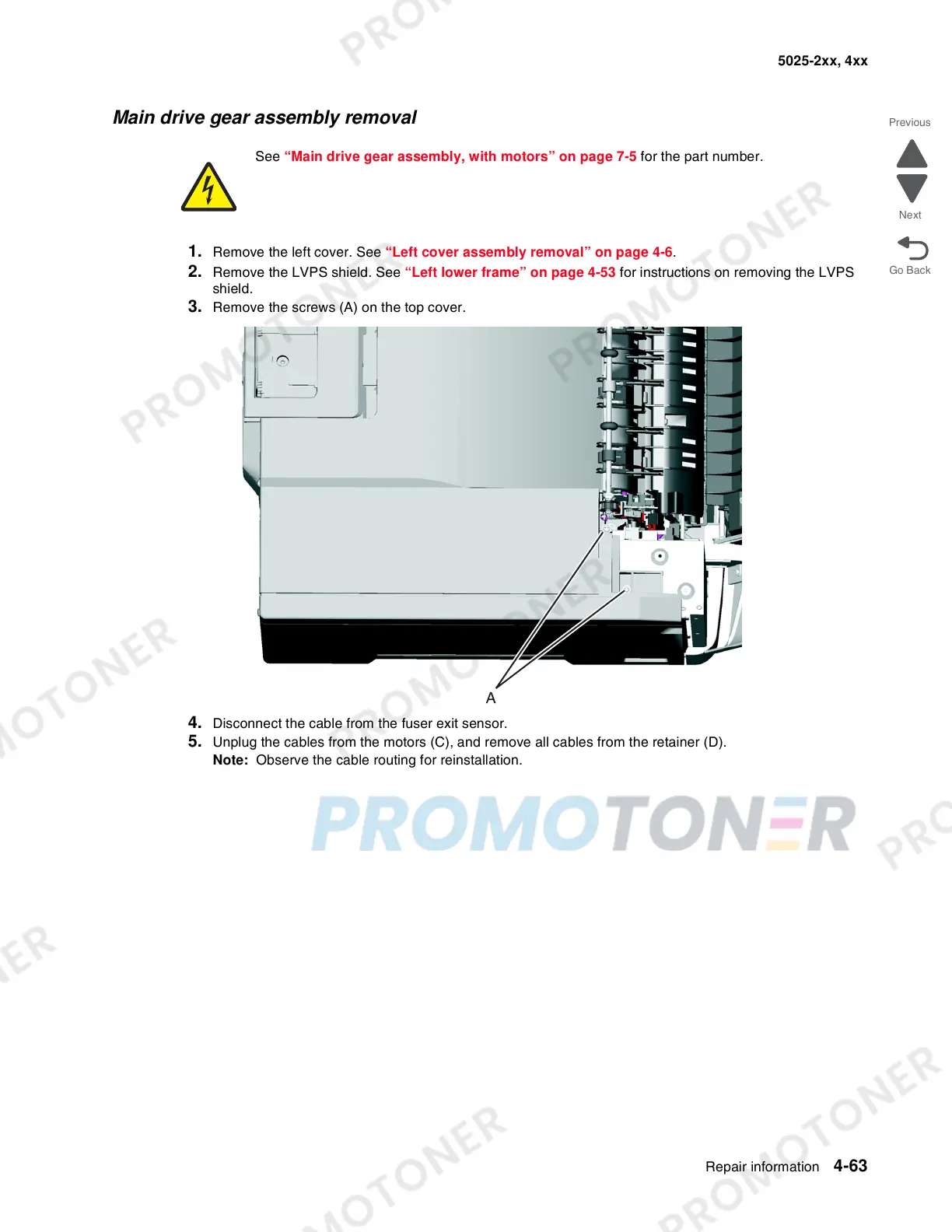

Main drive gear assembly removal
See “Main drive gear assembly, with motors” on page 7-5 for the part number.
1. Remove the left cover. See “Left cover assembly removal” on page 4-6.
2. Remove the LVPS shield. See “Left lower frame” on page 4-53 for instructions on removing the LVPS
shield.
3. Remove the screws (A) on the top cover.
4. Disconnect the cable from the fuser exit sensor.
5. Unplug the cables from the motors (C), and remove all cables from the retainer (D).
Note: Observe the cable routing for reinstallation.
