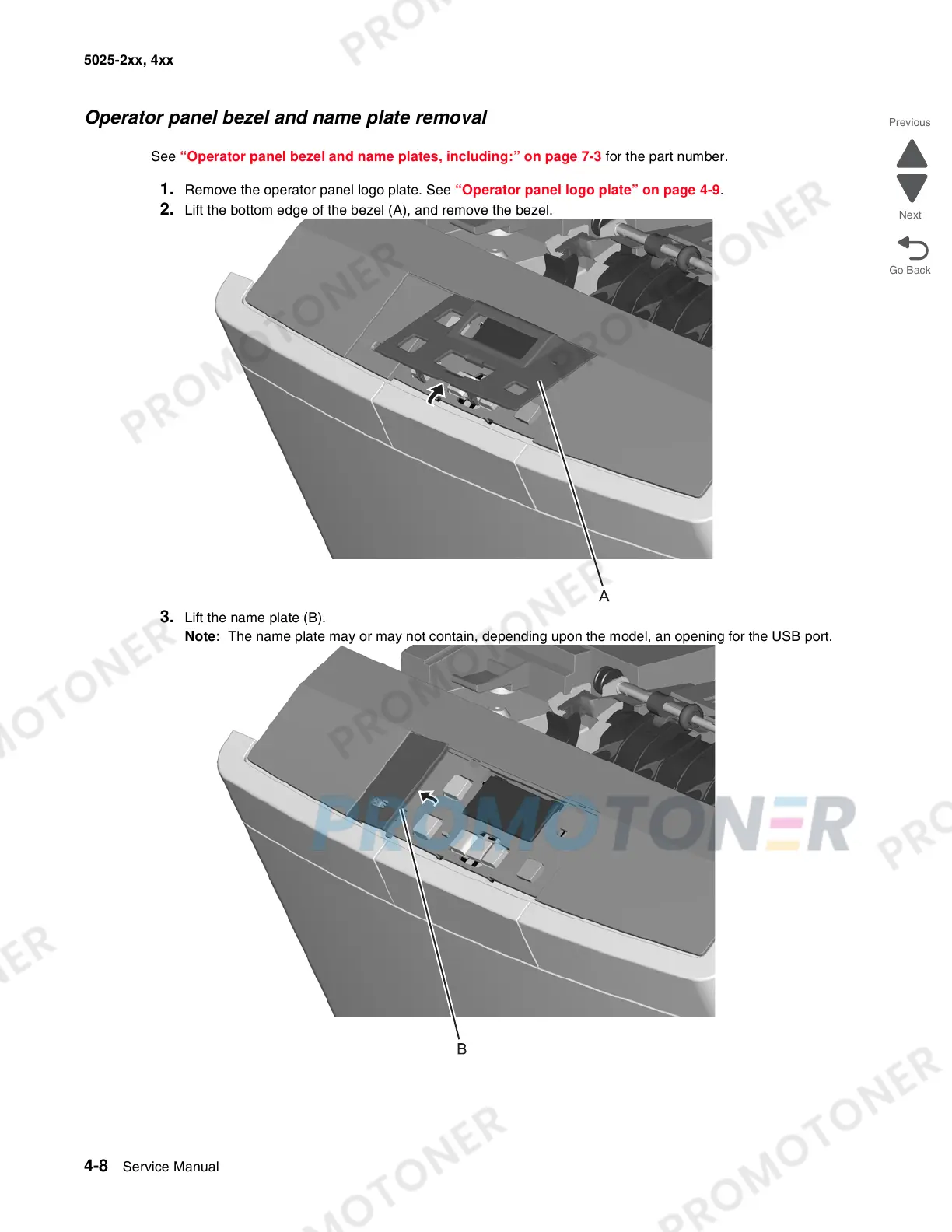

Operator panel bezel and name plate removal

See “Operator panel bezel and name plates, including:” on page 7-3 for the part number.

1. Remove the operator panel logo plate. See “Operator panel logo plate” on page 4-9.

2. Lift the bottom edge of the bezel (A), and remove the bezel.

3. Lift the name plate (B).

Note: The name plate may or may not contain, depending upon the model, an opening for the USB port.
