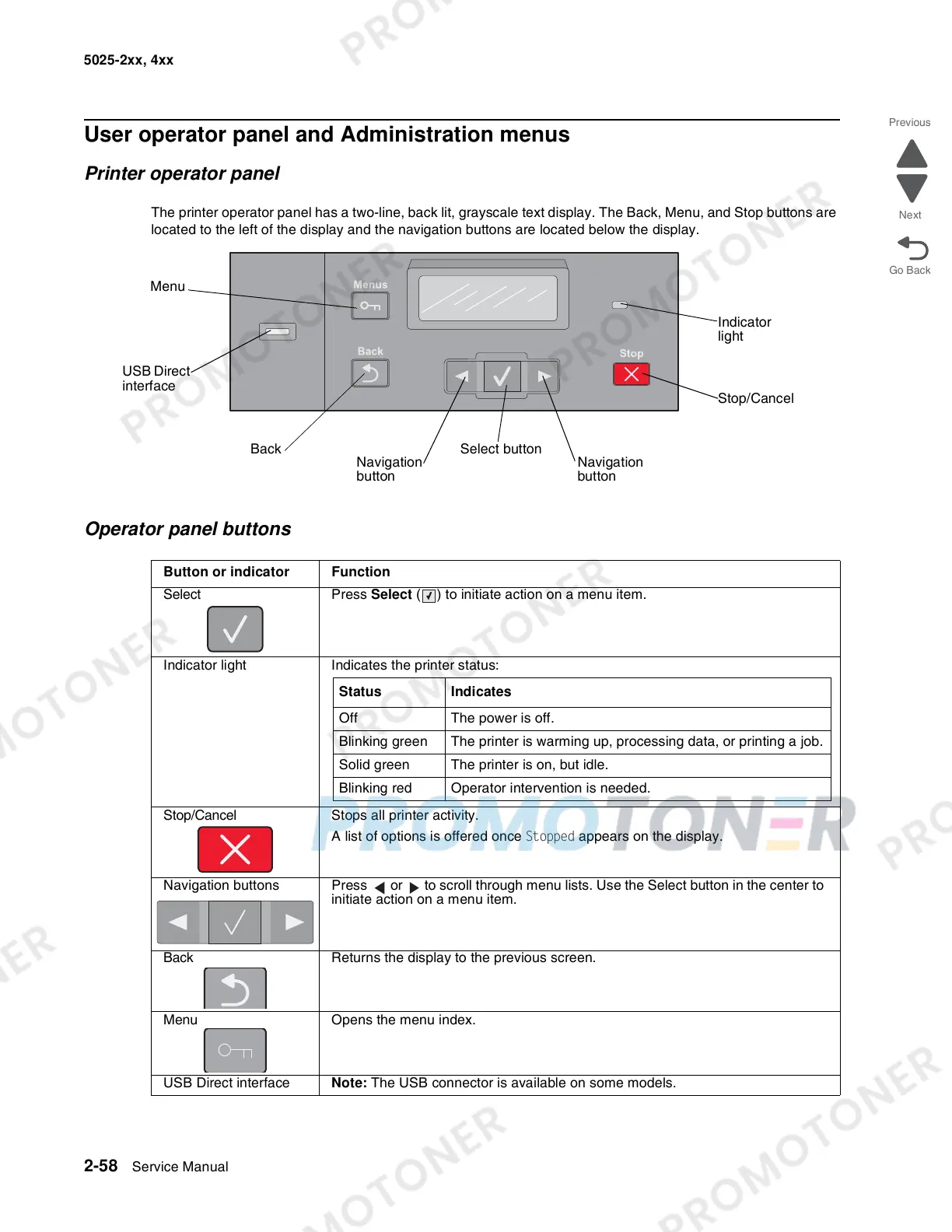

User operator panel and Administration menus
Printer operator panel
The printer operator panel has a two-line, back lit, grayscale text display. The Back, Menu, and Stop buttons are
located to the left of the display and the navigation buttons are located below the display.
Operator panel buttons
Button or indicator Function
Select Press Select ( ) to initiate action on a menu item.
Indicator light Indicates the printer status:
Stop/Cancel Stops all printer activity.
A list of options is offered once Stopped appears on the display.
Navigation buttons Press or to scroll through menu lists. Use the Select button in the center to
initiate action on a menu item.
Back Returns the display to the previous screen.
Menu Opens the menu index.
USB Direct interface Note: The USB connector is available on some models.
Back
Menu
Stop/Cancel
Navigation
button
Indicator
light
USB Direct
interface
Select button
Navigation
button
Status Indicates
Off The power is off.
Blinking green The printer is warming up, processing data, or printing a job.
Solid green The printer is on, but idle.
Blinking red Operator intervention is needed.
