Lexmark C543dn Service Manual

Repair information 4-43
5025-2xx, 4xx
Go Back
Previous
Next

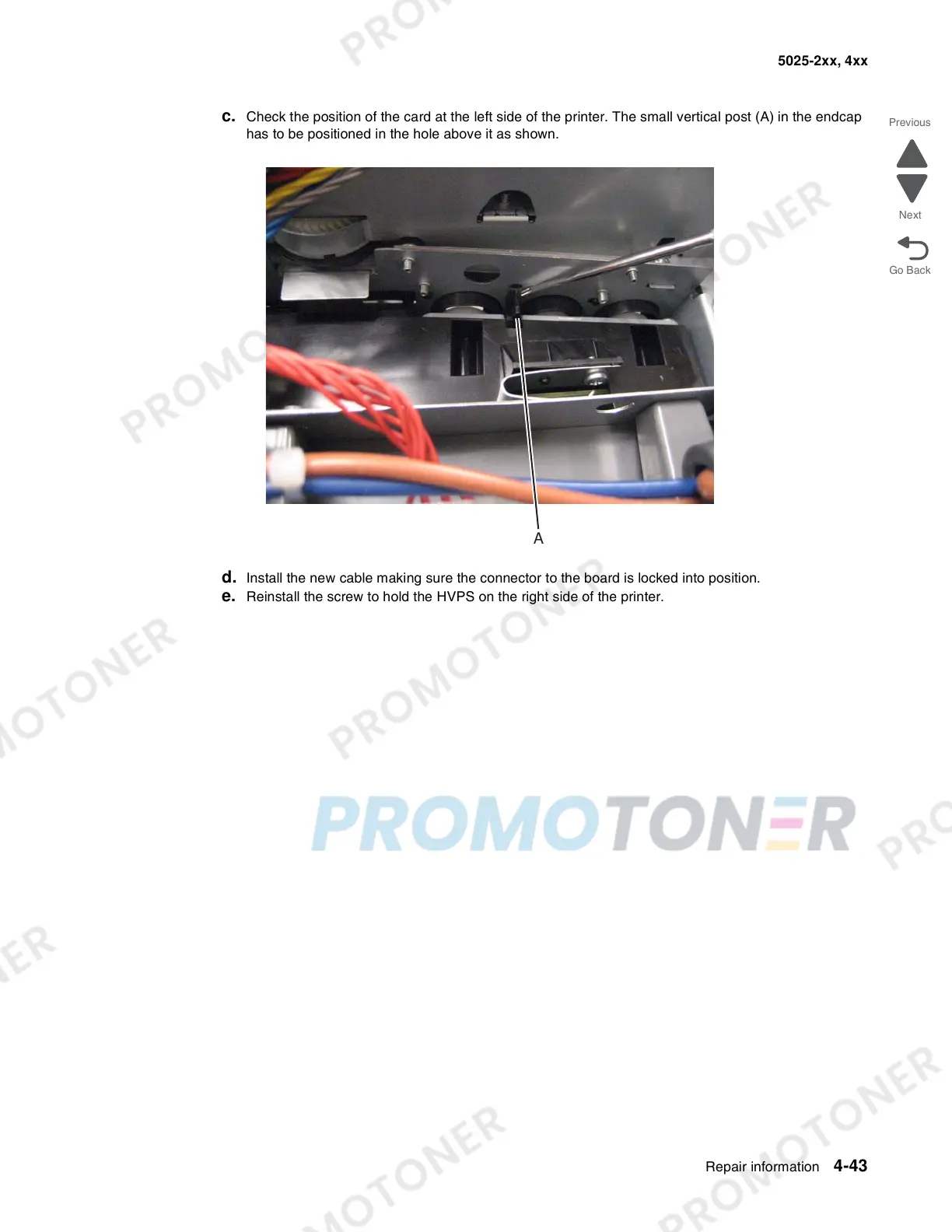

c. Check the position of the card at the left side of the printer. The small vertical post (A) in the endcap
has to be positioned in the hole above it as shown.
d. Install the new cable making sure the connector to the board is locked into position.
e. Reinstall the screw to hold the HVPS on the right side of the printer.
A
