Lexmark C543dn Service Manual

5-8 Service Manual
5025-2xx, 4xx
Go Back
Previous
Next
JOPT1
Optional—Tray(s)
1TXD_PP
2 Ground
3 Ground
4RXD_PP
5 +24 V dc
6 Ground
7 +5V_OPTIONS, +5 V dc
8S2
9 Ground
10 Ground
JPH1
Printhead flat cable connector
1 VDO_HSYNC1_C, +5 V dc
2 VDO_PH_OK, +3.3 V dc
3 VDO_HSYNC0, +5 V dc
4 VDO_LEN0, +3.3 V dc
5 VDO_BOOST3
6 +3.3 V dc
7 VDO_BOOST1
8 -5V_PH, +5 V dc
9 VDO_BOOST2 (Shade B)
10 +5_PH, +5 V dc
11 VDO_BOOST0
12 Ground
13 D_VDO_7+
14 D_VDO_7–, +1.5 V dc
15 Ground
16 D_VDO_3+, +1.5 V dc
17 D_VDO_3–
18 Ground
19 D_VDO_6+
20 D_VDO_6–
21 Ground

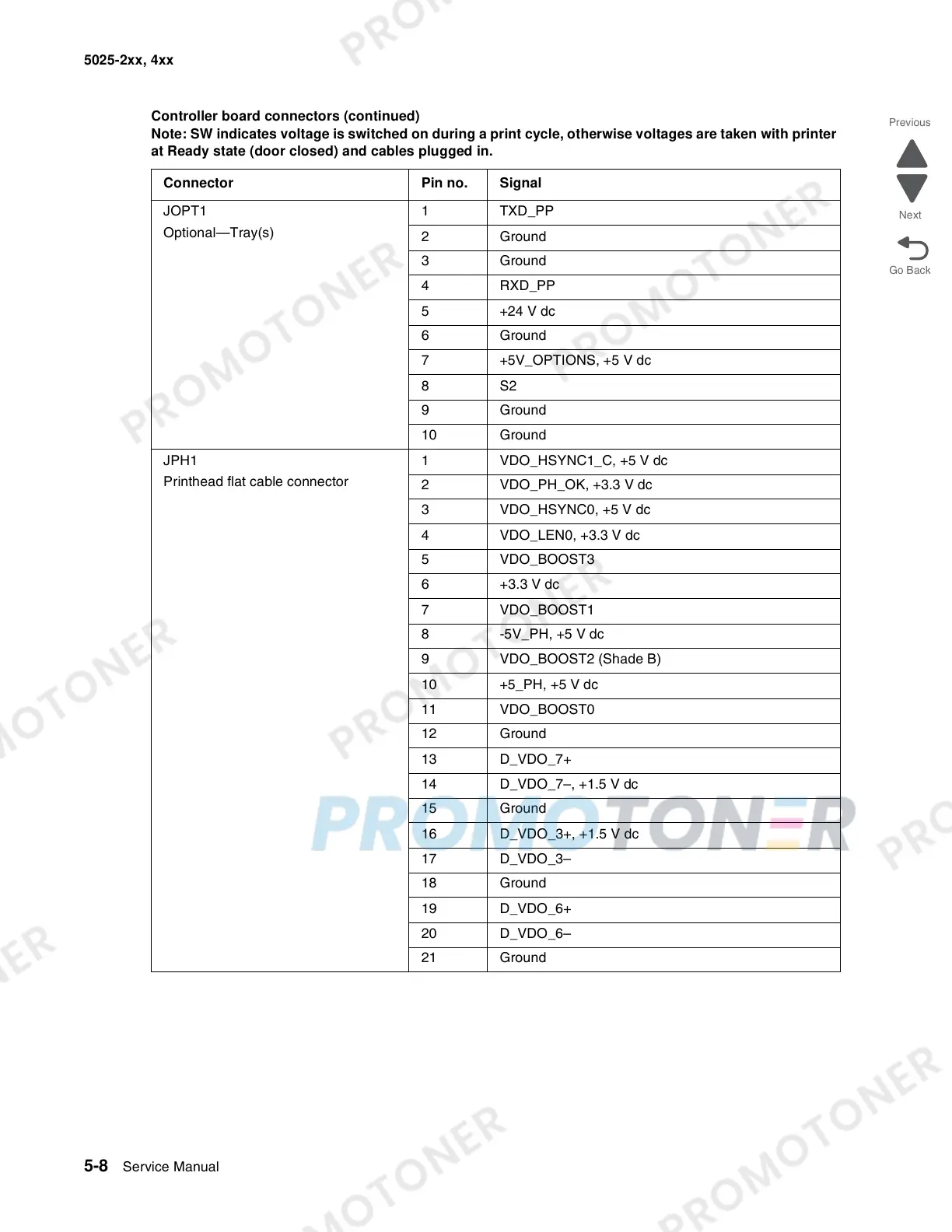

Controller board connectors (continued)
Note: SW indicates voltage is switched on during a print cycle, otherwise voltages are taken with printer
at Ready state (door closed) and cables plugged in.
Connector Pin no. Signal
