Parts catalog 7-3

5025-2xx, 4xx

Go Back

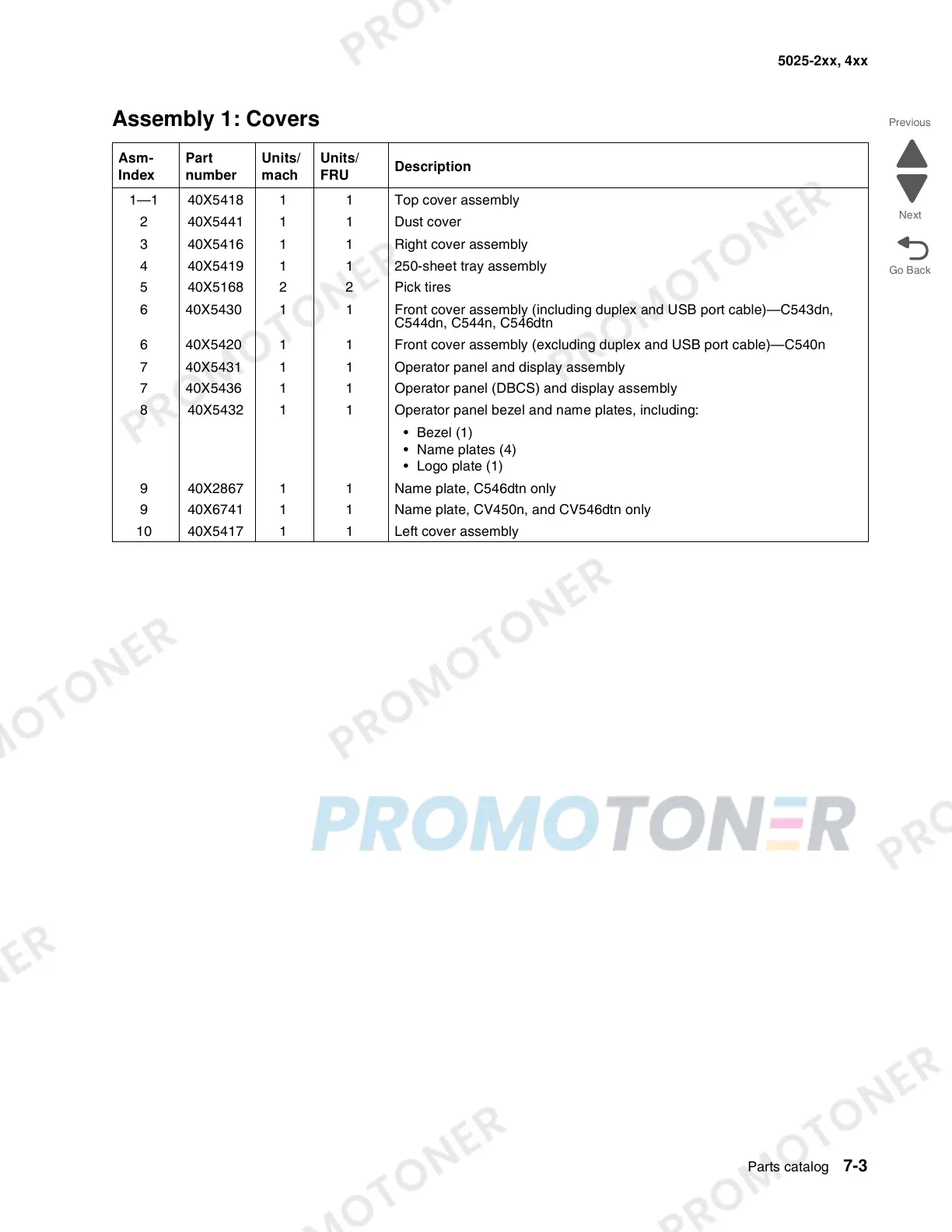

Assembly 1: Covers

Asm-

Index

Part

number

Units/

mach

Units/

FRU

Description

1—1 40X5418 1 1 Top cover assembly

2 40X5441 1 1 Dust cover

3 40X5416 1 1 Right cover assembly

4 40X5419 1 1 250-sheet tray assembly

5 40X5168 2 2 Pick tires

6 40X5430 1 1 Front cover assembly (including duplex and USB port cable)—C543dn,

C544dn, C544n, C546dtn

6 40X5420 1 1 Front cover assembly (excluding duplex and USB port cable)—C540n

7 40X5431 1 1 Operator panel and display assembly

7 40X5436 1 1 Operator panel (DBCS) and display assembly

8 40X5432 1 1 Operator panel bezel and name plates, including:

• Bezel (1)

• Name plates (4)

• Logo plate (1)

9 40X2867 1 1 Name plate, C546dtn only

9 40X6741 1 1 Name plate, CV450n, and CV546dtn only

10 40X5417 1 1 Left cover assembly
