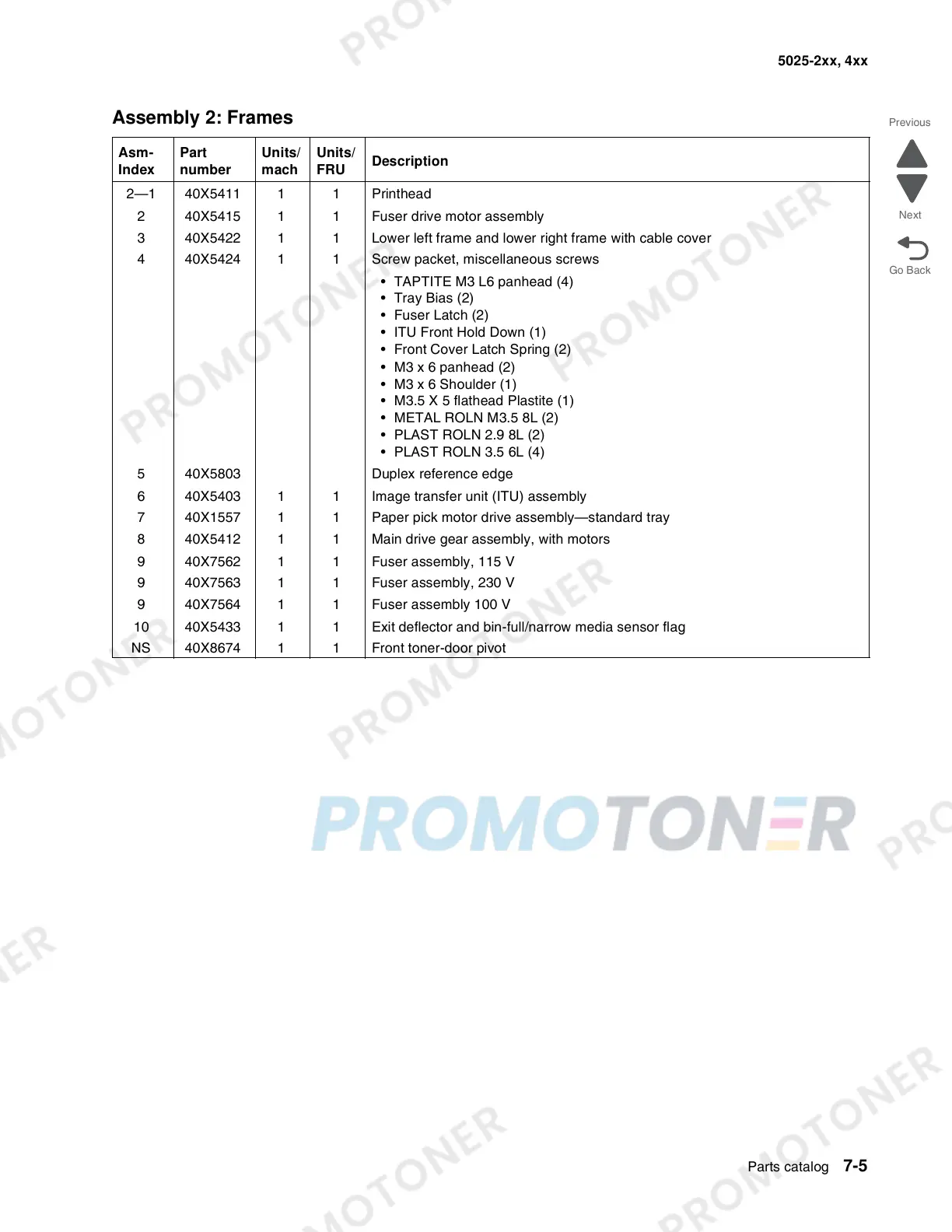

Parts catalog 7-5
5025-2xx, 4xx
Assembly 2: Frames
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
2—1 40X5411 1 1 Printhead
2 40X5415 1 1 Fuser drive motor assembly
3 40X5422 1 1 Lower left frame and lower right frame with cable cover
4 40X5424 1 1 Screw packet, miscellaneous screws
• TAPTITE M3 L6 panhead (4)
• Tray Bias (2)
• Fuser Latch (2)
• ITU Front Hold Down (1)
• Front Cover Latch Spring (2)
• M3 x 6 panhead (2)
• M3 x 6 Shoulder (1)
• M3.5 X 5 flathead Plastite (1)
• METAL ROLN M3.5 8L (2)
• PLAST ROLN 2.9 8L (2)
• PLAST ROLN 3.5 6L (4)
5 40X5803 Duplex reference edge
6 40X5403 1 1 Image transfer unit (ITU) assembly
7 40X1557 1 1 Paper pick motor drive assembly—standard tray
8 40X5412 1 1 Main drive gear assembly, with motors
9 40X7562 1 1 Fuser assembly, 115 V
9 40X7563 1 1 Fuser assembly, 230 V
9 40X7564 1 1 Fuser assembly 100 V
10 40X5433 1 1 Exit deflector and bin-full/narrow media sensor flag
NS 40X8674 1 1 Front toner-door pivot
