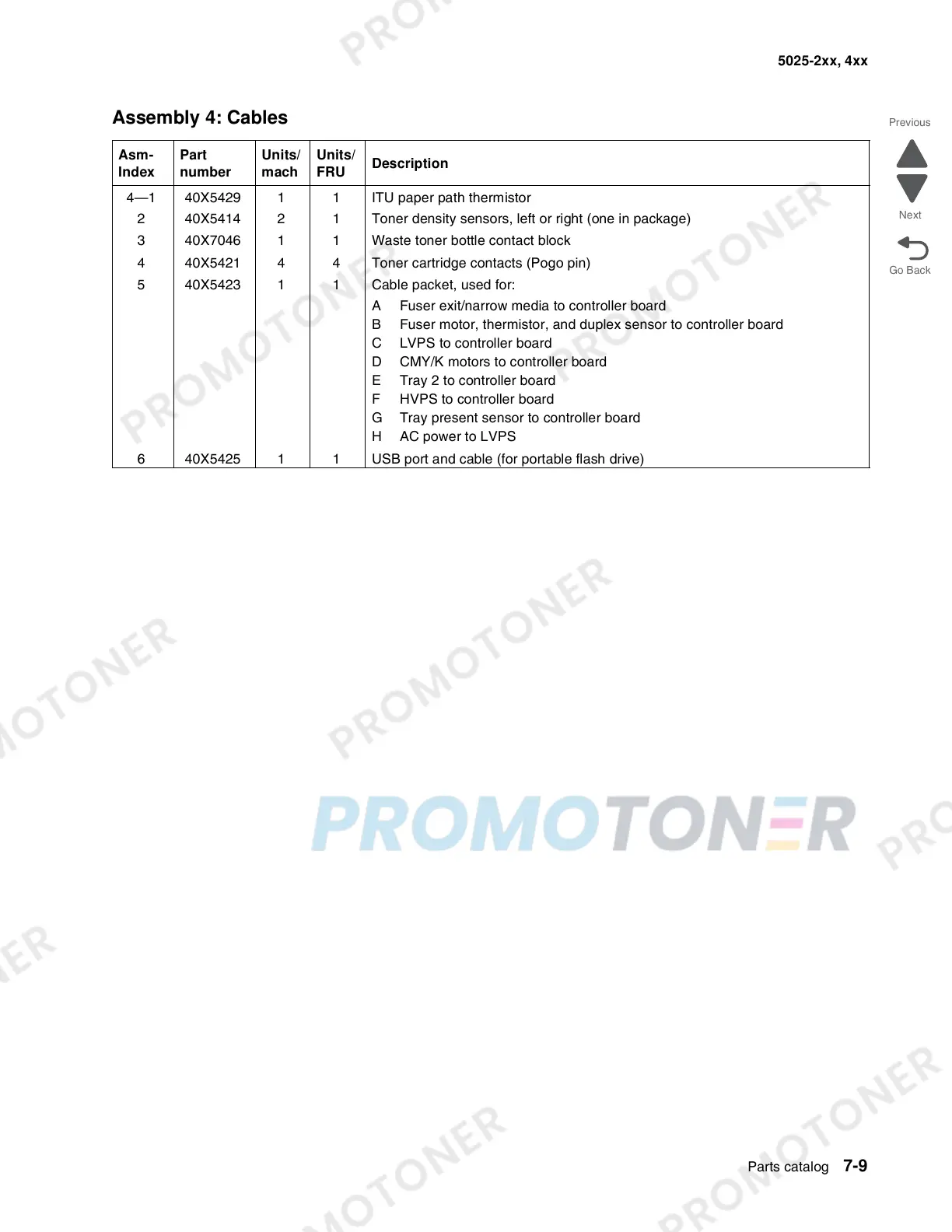

Parts catalog 7-9
5025-2xx, 4xx
Assembly 4: Cables
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
4—1 40X5429 1 1 ITU paper path thermistor
2 40X5414 2 1 Toner density sensors, left or right (one in package)
3 40X7046 1 1 Waste toner bottle contact block
4 40X5421 4 4 Toner cartridge contacts (Pogo pin)
5 40X5423 1 1 Cable packet, used for:
A Fuser exit/narrow media to controller board
B Fuser motor, thermistor, and duplex sensor to controller board
C LVPS to controller board
D CMY/K motors to controller board
E Tray 2 to controller board
F HVPS to controller board
G Tray present sensor to controller board
H AC power to LVPS
6 40X5425 1 1 USB port and cable (for portable flash drive)
