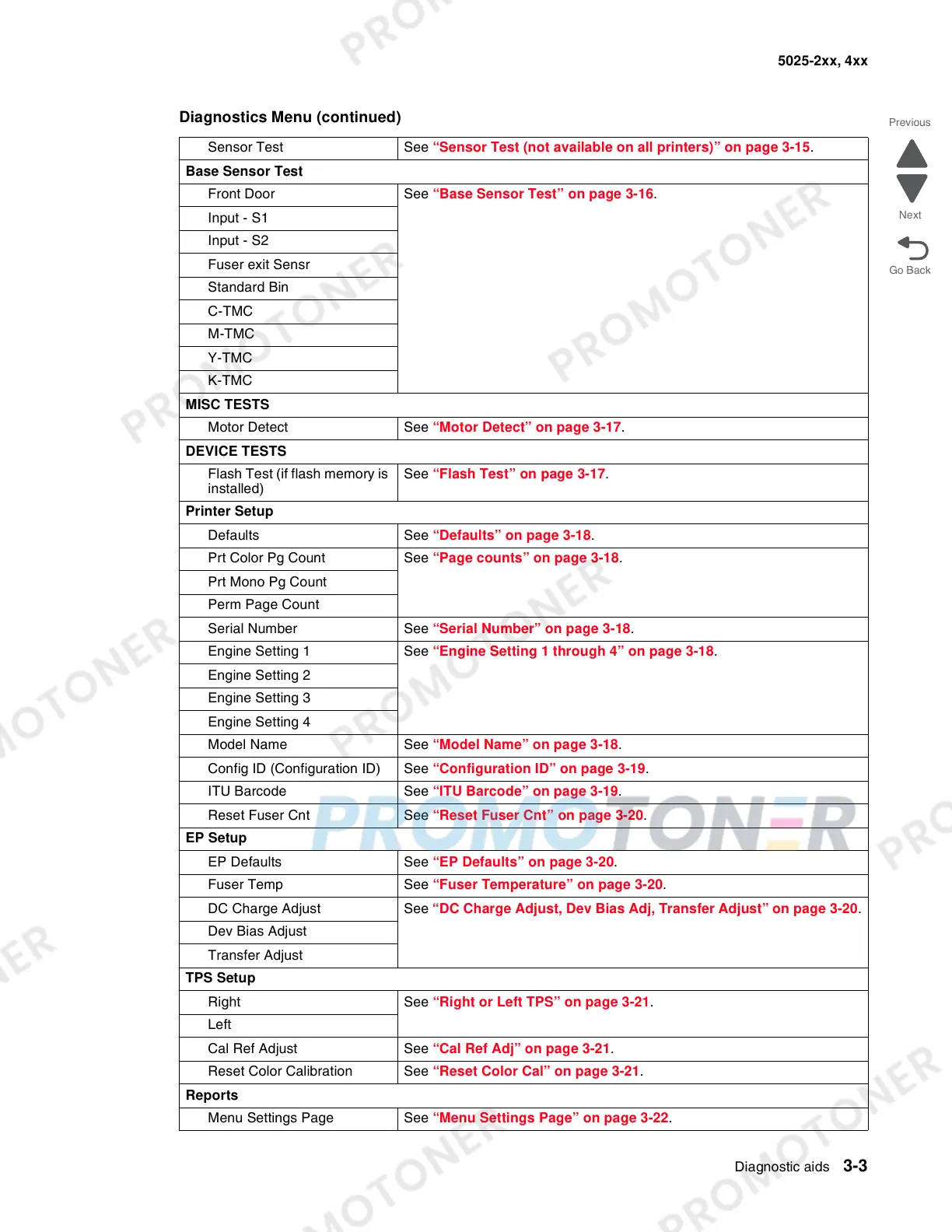

Lexmark C543dn Service Manual

Diagnostic aids 3-3
5025-2xx, 4xx
Go Back
Previous
Next
Sensor Test See “Sensor Test (not available on all printers)” on page 3-15.
Base Sensor Test
Front Door See “Base Sensor Test” on page 3-16.
Input - S1
Input - S2
Fuser exit Sensr
Standard Bin
C-TMC
M-TMC
Y-TMC
K-TMC
MISC TESTS
Motor Detect See “Motor Detect” on page 3-17.
DEVICE TESTS
Flash Test (if flash memory is
installed)
See “Flash Test” on page 3-17.
Printer Setup
Defaults See “Defaults” on page 3-18.
Prt Color Pg Count See “Page counts” on page 3-18.
Prt Mono Pg Count
Perm Page Count
Serial Number See “Serial Number” on page 3-18.
Engine Setting 1 See “Engine Setting 1 through 4” on page 3-18.
Engine Setting 2
Engine Setting 3
Engine Setting 4
Model Name See “Model Name” on page 3-18.
Config ID (Configuration ID) See “Configuration ID” on page 3-19.
ITU Barcode See “ITU Barcode” on page 3-19.
Reset Fuser Cnt See “Reset Fuser Cnt” on page 3-20.
EP Setup
EP Defaults See “EP Defaults” on page 3-20.
Fuser Temp See “Fuser Temperature” on page 3-20.
DC Charge Adjust See “DC Charge Adjust, Dev Bias Adj, Transfer Adjust” on page 3-20.
Dev Bias Adjust
Transfer Adjust
TPS Setup
Right See “Right or Left TPS” on page 3-21.
Left
Cal Ref Adjust See “Cal Ref Adj” on page 3-21.
Reset Color Calibration See “Reset Color Cal” on page 3-21.
Reports
Menu Settings Page See “Menu Settings Page” on page 3-22.
