Lexmark MS31x/41x/510/610 & MX310/410/51x/61x Product Study Guide Rev 1.3

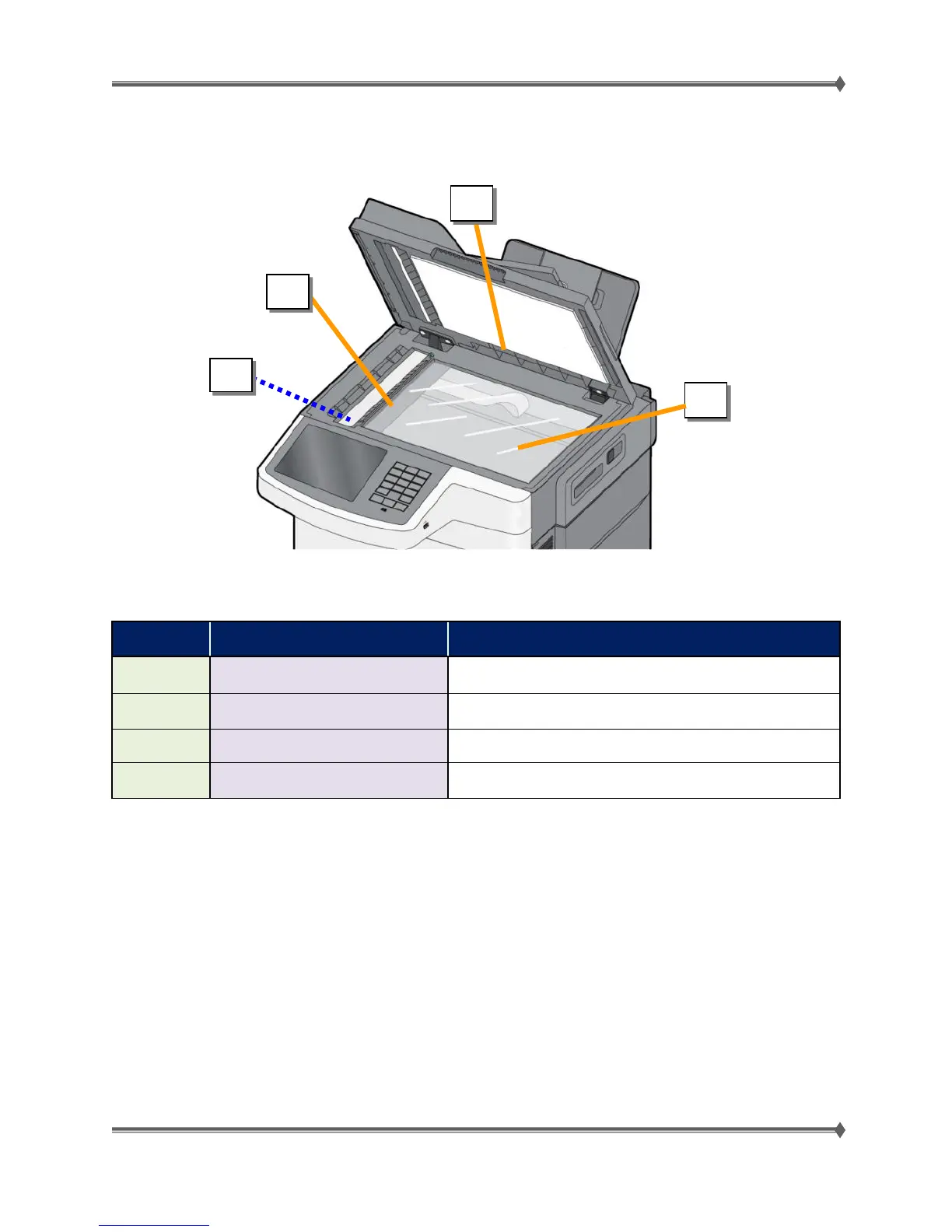

Flatbed Key Components: MX310/MX410/MX51x/MX61x
Number Component Function
1 (Hidden)
Scanner Home Position
Sensor
Detects the registration position of the scanner.
2 (Hidden) CCD Imaging Unit
Shines light onto the document (LED).
3 ADF Open Sensor
Detects if the ADF lid is open.
4 Flatbed Glass
Glass surface where the document is scanned.
For Training Purposes Only 25 4/21/2014
