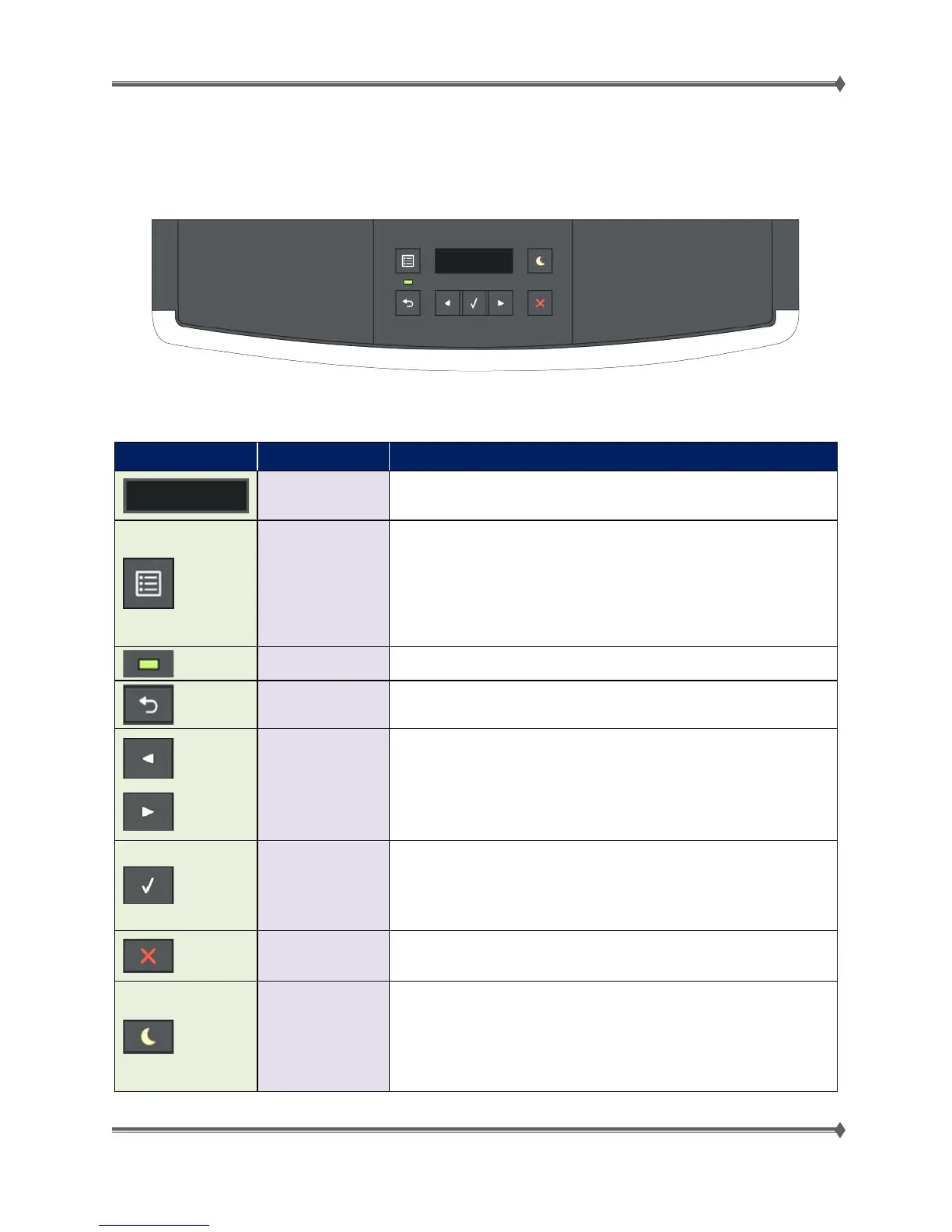

MS312dn and MS410d/dn Control Panel
The MS410 Series models have a 2-line 128 x 32 pixel All Points Addressable (APA) monochrome LED
display with 7 tactile buttons and two LEDs (1 indicator LED and 1 LED located under the “Sleep” button).
Buttons and Functions
Part Description Function
Display
View printing options as well as status and error messages.
Menus button
Open the menus.
• The menus are available only when the printer is in the
Ready state.
• Pressing the button while navigating within the menus
returns the Control Panel to the top‑level menu screen.
Indicator Light
Determine the status of the printer.
Back button
Return to the previous screen.
Left and Right
arrow buttons
• Scroll through menus or to move between screens and menu
options.
• Scroll through settings or te
xt. For menus with numeric
values, press and hold an arrow button to scroll through the
settings.
Release the button when the value you want
appears.
Select button
• Open a menu.
•
Display available values or settings for a menu. The current
default setting is indicated by an asterisk (*).
•
• Save the displayed value as the new user default setting.
Stop button
• Exit the menus and return to the Ready state.
• Stop printer activities, such as printing or downloading fonts.
Sleep button
Enable Sleep Mode or Hibernate Mode.
• Pressing any hard button will cause the printer to wake
from Sleep mode.
• Pressing the Sleep button or the power switch will cause
the printer to wake from Hibernate mode.
