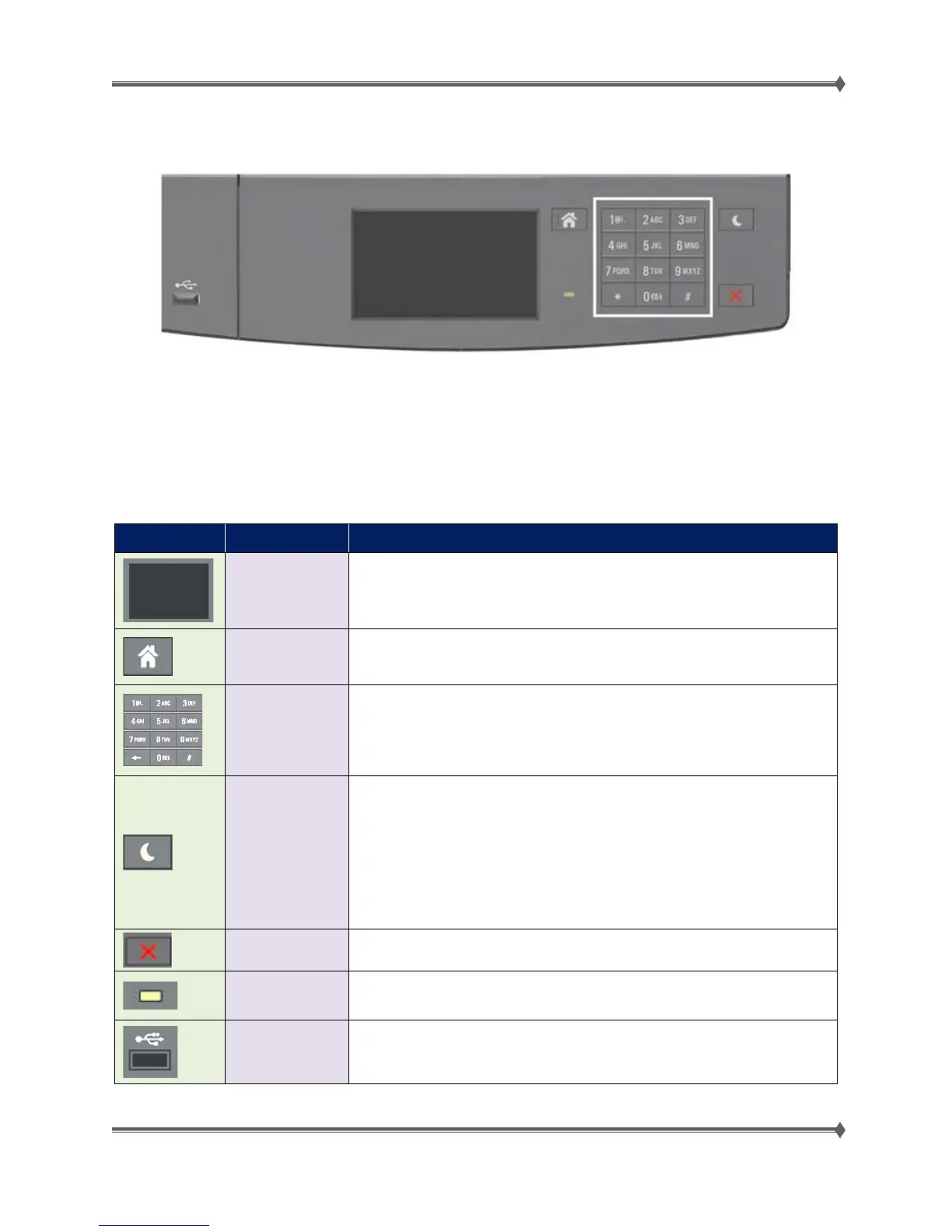

Lexmark MS31x/41x/510/610 & MX310/410/51x/61x Product Study Guide Rev 1.3
MS610de Control Panel
4.3 inch diagonal Color LCD Resistive panel
Touch sensitive graphical user interface
15 tactile buttons
1 indicator LED
Buttons and Functions
Part Description Function
Display
View the printer status and messages.
Set up and operate the printer.
Home button
Go to the home screen.
Keypad
Enter numbers, letters, or symbols.
Sleep button
Enable Sleep Mode or Hibernate Mode.
The following actions wake the printer from Sleep mode:
• Pressing any hard button
• Opening a tray or the front door
• Sending a print job from the computer
• Performing a power-on reset using the main power switch
• Attaching a device in the USB port
Stop button
Stop all printer activities.
Indicator
Light
Determine the status of the printer.
USB port
Connect a flash drive to the printer.
For Training Purposes Only 40 4/21/2014
