Lexmark MS31x/41x/510/610 & MX310/410/51x/61x Product Study Guide Rev 1.3

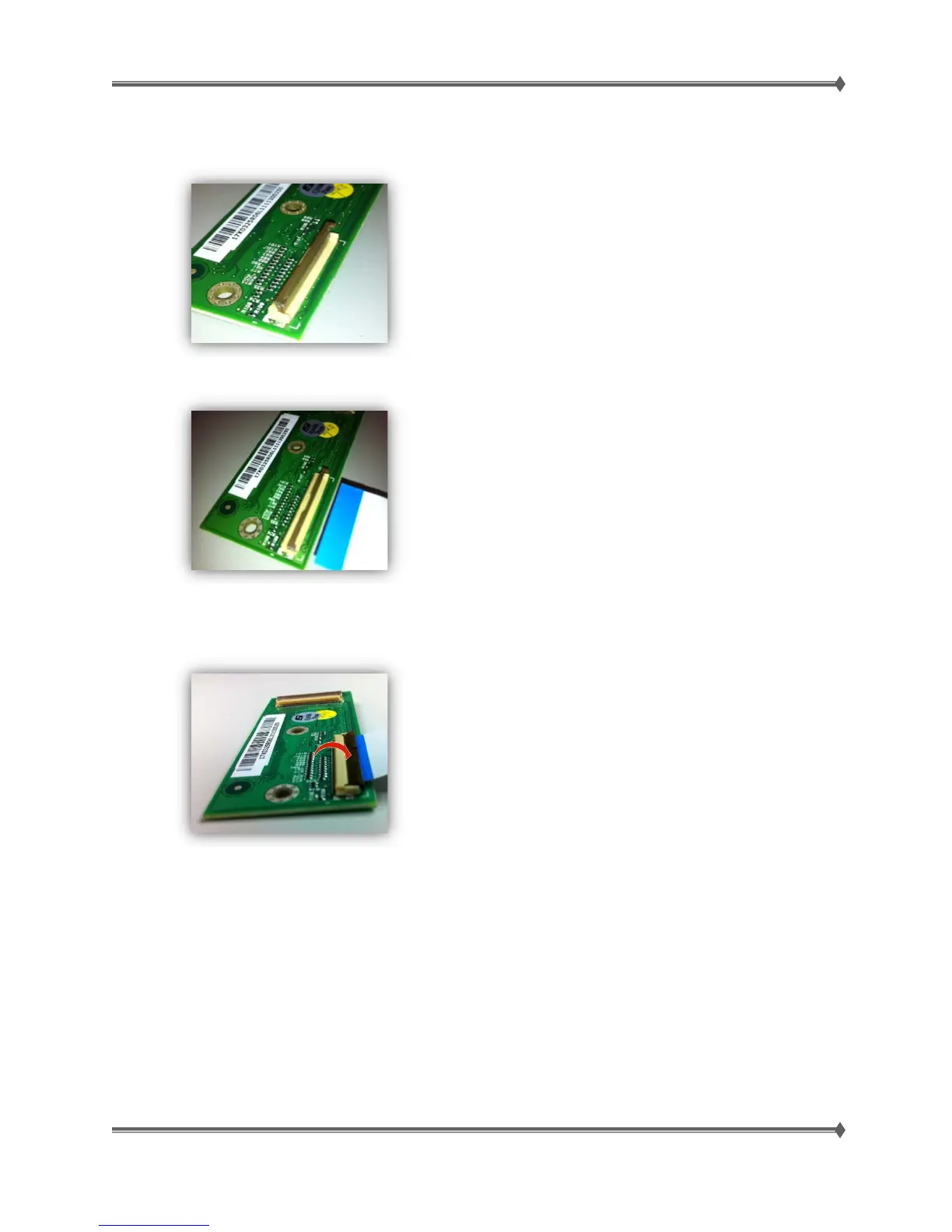

How to Insert a Cable into the Horizontal Bottom Contact Connector
1. Check the actuator to verify it is in the open position.
2. Insert the cable into the ZIF connector with the contacts facing downward and away from the
locking actuator. The cable needs to be inserted below the actuator.
Note: Verify that the cable is installed squarely into the connector. If the cable is not squarely
installed, then intermittent failures could occur.
3. Place your finger in the middle of the actuator and rotate the actuator to the locked position.
For Training Purposes Only 85 4/21/2014
