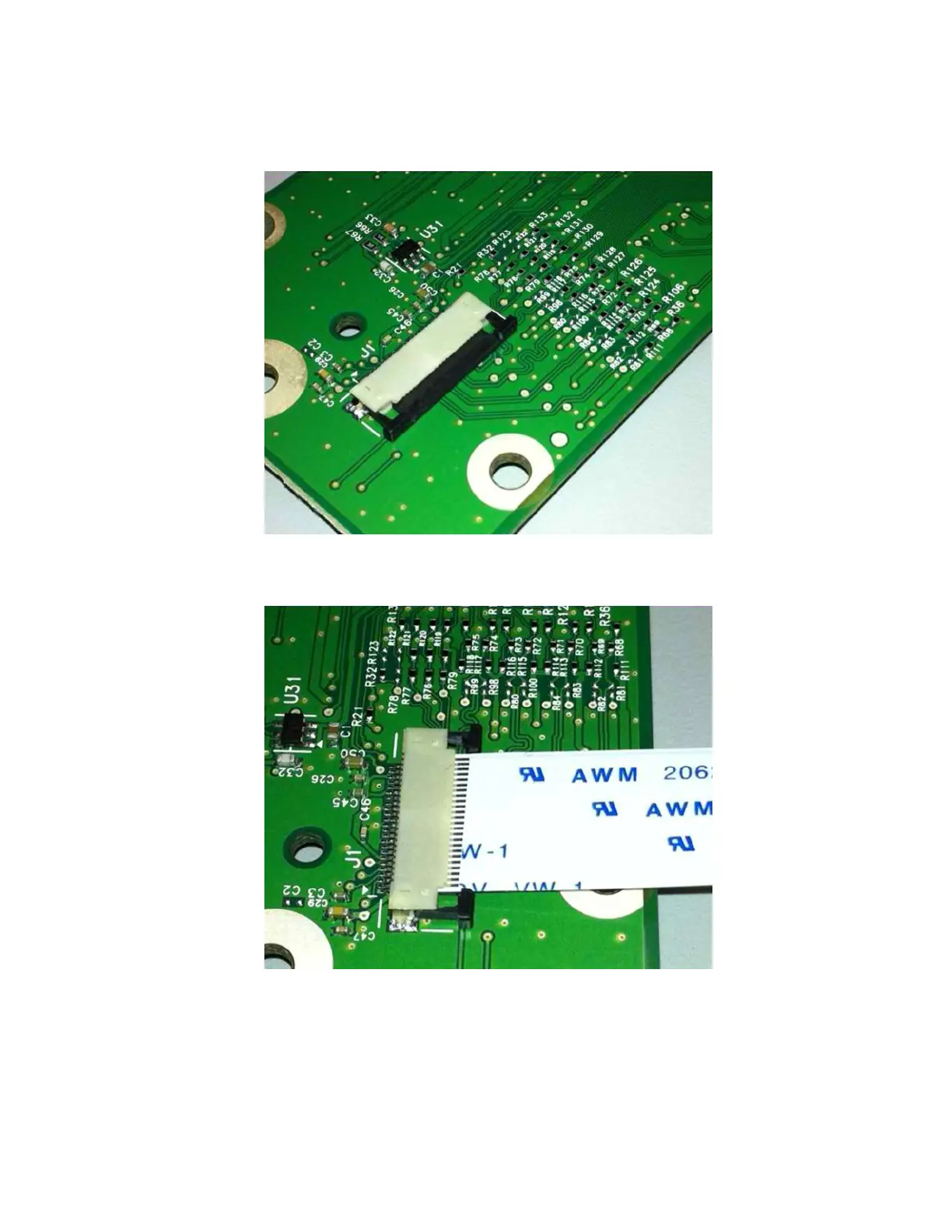

Inserting a cable into the horizontal sliding contact connector
1
When installing the cable, check the locking actuator to verify it is in the open position. If you are opening the
connector, pull back on both end tabs using equal force to avoid breaking the connector.
2 Insert the cable with the contacts on the cable facing away from the locking actuator. Insert the cable on top of the
actuator.
