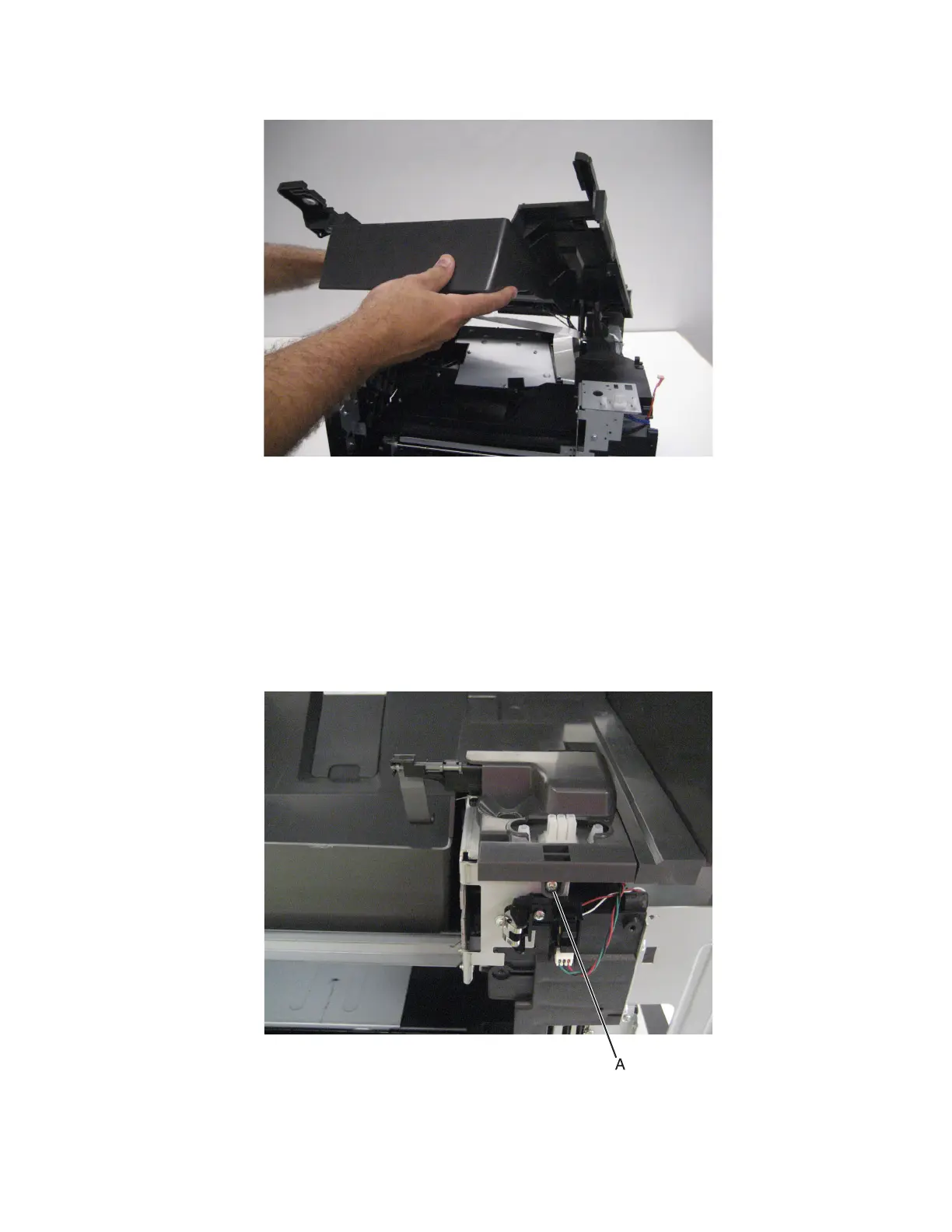

8 Remove the standard bin cover.
Standard bin cover removal (MX81x)
1 Remove the left cover. See “Left cover removal (MX81x)” on page 303.
2 Remove the right cover. See “Right cover removal (MX71x)” on page 311.
3 Open the rear door.
4 Remove the top cover. See “Top cover removal” on page 314.
5 Remove the screw (A) securing the sensor cover to the machine.
7463
Repair information
359
