Lexmark MX811de - Sensor (ADF Top Door Interlock) Removal

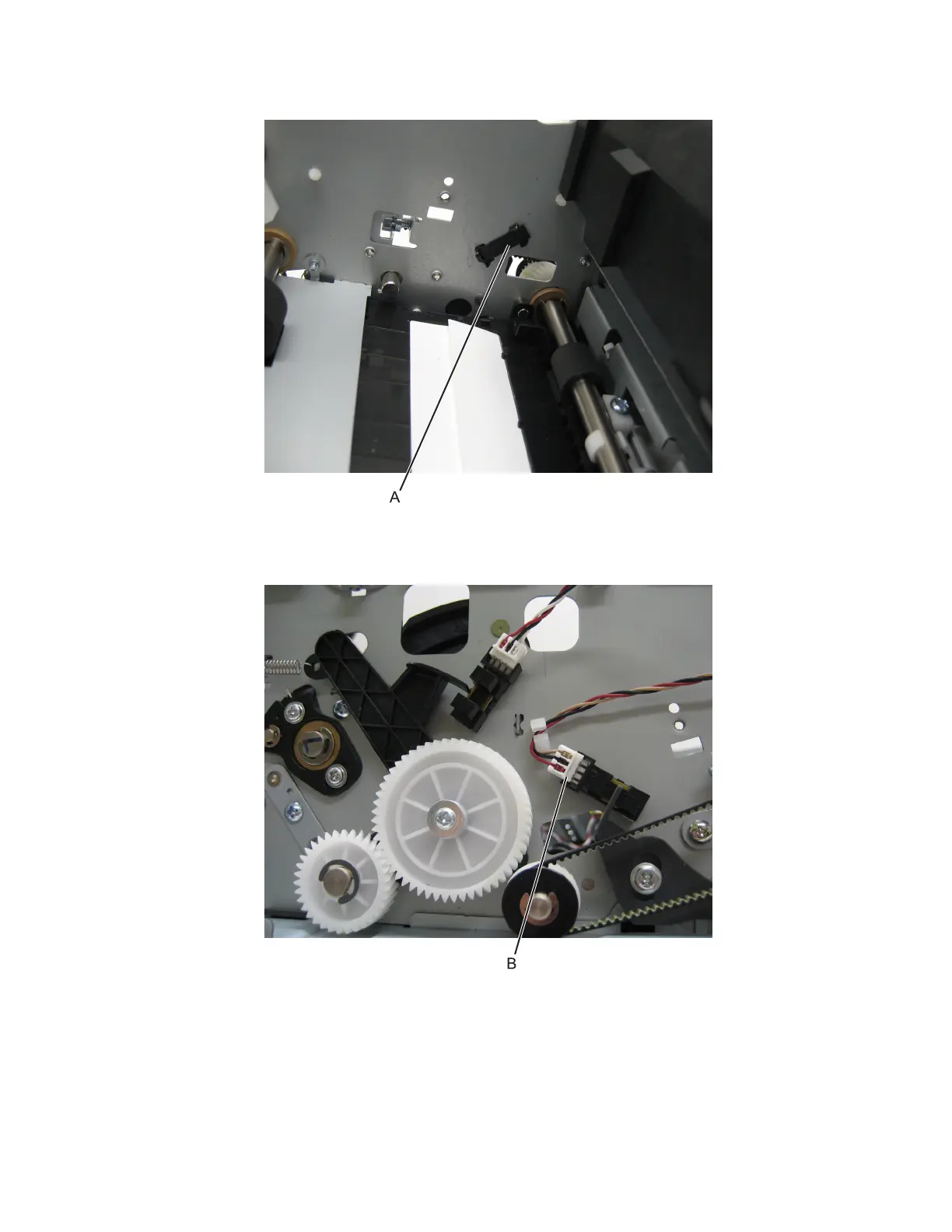

6 Remove the mylar and release the hooks securing the sensor (ADF lower door interlock) to the machine.
7 Remove the sensor (ADF lower door interlock).
8 Disconnect the cable (A).
Sensor (ADF top door interlock) removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 459.
2 Remove the ADF separation guide. See “ADF separation guide removal” on page 473.
7463
Repair information
479
