Lexmark MX811de - ADF Feed Belt Removal

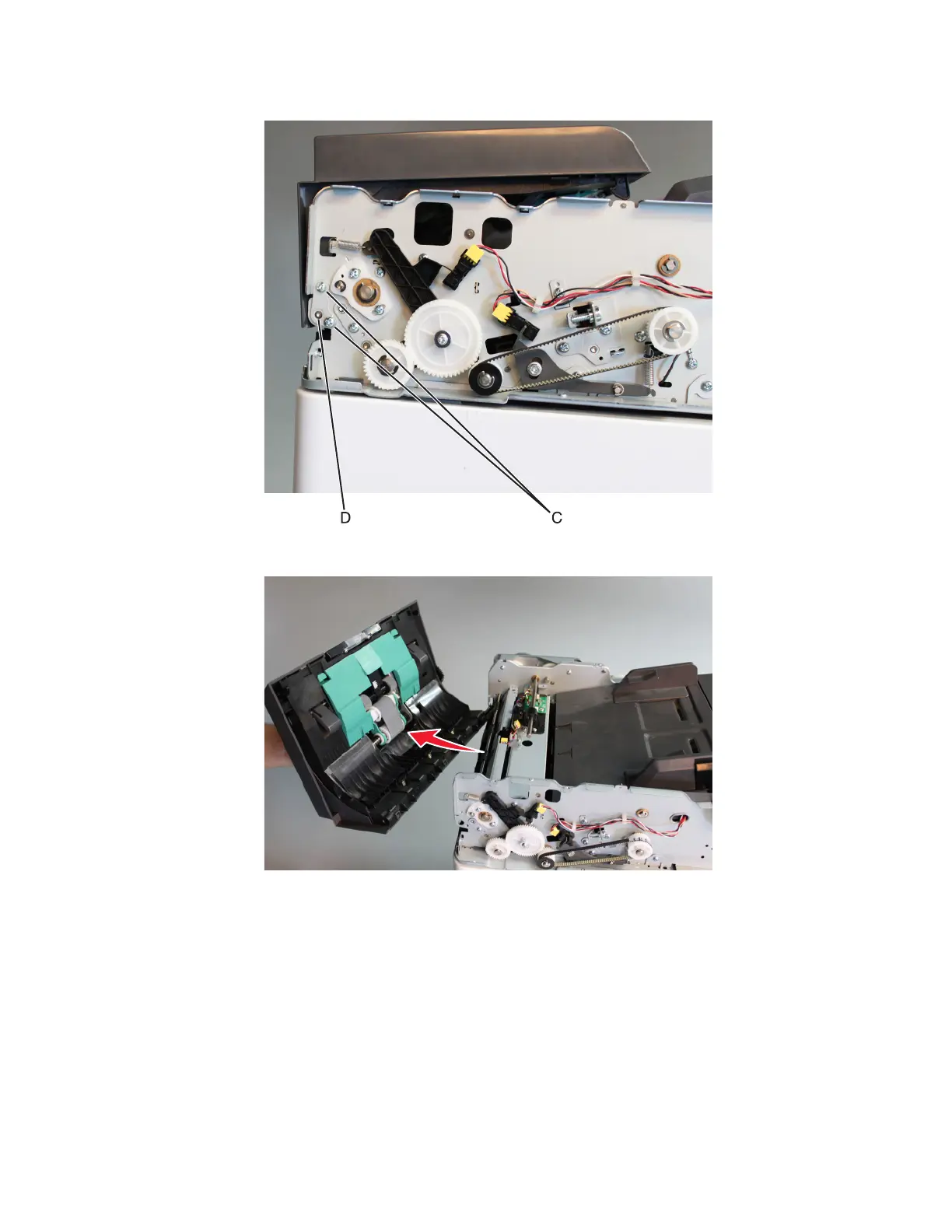

6 Remove the two screws (C) and the retaining bracket (D) securing the ADF door.
7 Remove the ADF door.
ADF feed belt removal
1 Open the ADF door.
2 Remove the ADF pick roller cover. See “ADF pick roller cover removal” on page 467.
7463
Repair information
456
